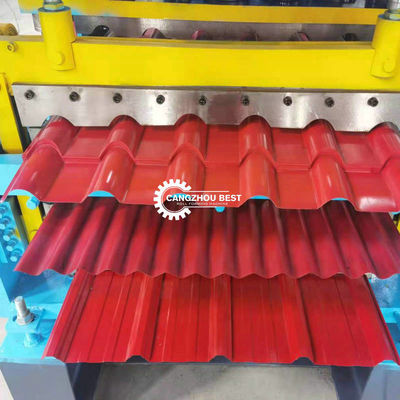

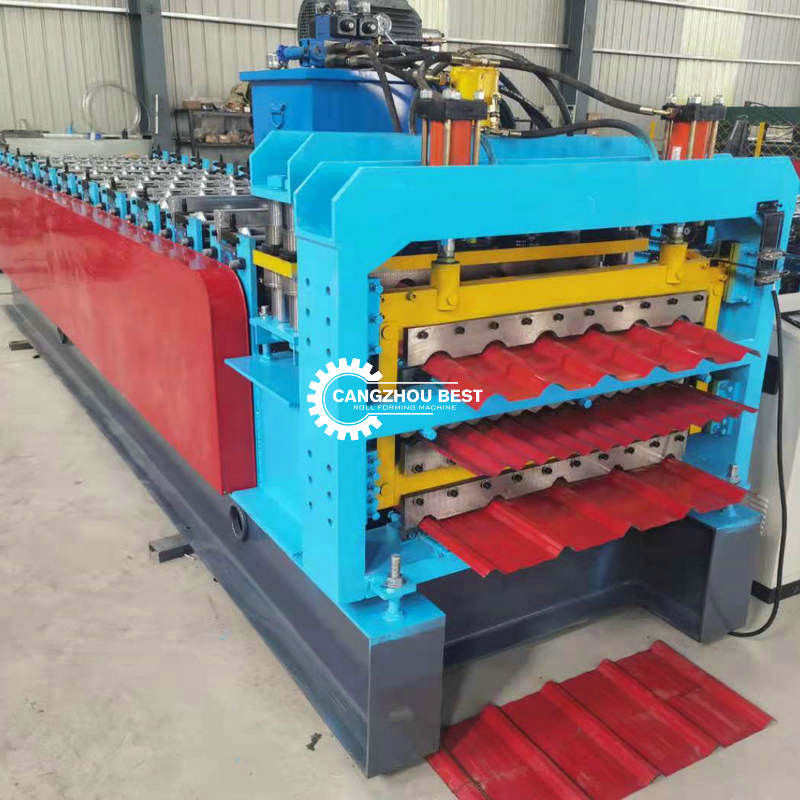

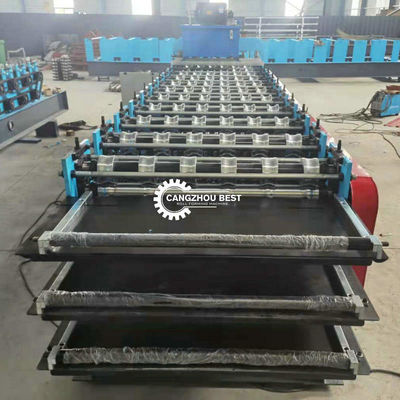

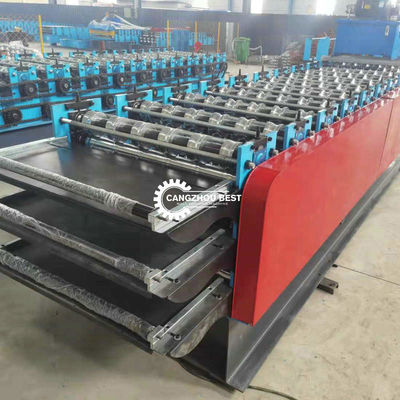

8.5kw Hydraulic Three Layer Ibr Roll Forming Machine

8.5kw Hydraulic Three Layer Ibr Roll Forming Machine
8.5kw Hydraulic Three Layer Ibr Roll Forming Machine 8.5kw Hydraulic Three Layer Ibr Roll Forming Machine 8.5kw Hydraulic Three Layer Ibr Roll Forming Machine 8.5kw Hydraulic Three Layer Ibr Roll Forming Machine

Large Image :  8.5kw Hydraulic Three Layer Ibr Roll Forming Machine

Product Details:
Place of Origin: CHINA
Brand Name: BEST
Certification: CE,SGS
Model Number: YX1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 19500
Packaging Details: naked
Delivery Time: 35days
Payment Terms: L/C, T/T
Supply Ability: 10set/month

8.5kw Hydraulic Three Layer Ibr Roll Forming Machine

Description
Name: Hydraulic Automatic Three Layer IBR&Roof Tile&Corrugated Roofing Sheet Roll Forming Machine Material: Steel
Control System: PLC Power: 8.5kw
Material Thickness: 0.3-0.8mm Speed: 8-12m/min
High Light:

three layer ibr roll forming machine

,

hydraulic ibr making machine

,

8.5kw ibr roll forming machine

Hydraulic Automatic Three Layer IBR&Roof Tile&Corrugated Roofing Sheet Roll Forming Machine

Product Applicatio

This type of roof sheet has advantage including beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

Parameter


material colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.3-0.8 mm
material expand width 1000mm
Efficiency width 800/836/840mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm or as your requirement
main frame 300 H steel
forming steps

up layer:14rows

down layer:16 stations

productivity 20-25m/min
hydraulic station power  5.5KW
hydraulic pressure 10-12MPa
appearance size 8700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material

45# steel,roller surfaces polishing, hard plating





Main Features

1.This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2.Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3.Fully Automatic Control System with PLC.
4.Easy operation: Key in the length and quantity on the control panel.
5.two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.
6.we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7.One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine.



Terms and Payment

1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.

2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.

4.Warranty: 12 months

During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.



8.5kw Hydraulic Three Layer Ibr Roll Forming Machine 0



8.5kw Hydraulic Three Layer Ibr Roll Forming Machine 1
