Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine

Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine
Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine

Large Image :  Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: YX720
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard
Delivery Time: 35days
Supply Ability: 14sets/month

Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine

Description
Name: Steel Profile High Rib& Q Tile Double Layer Roofing Sheet Making Cold Roll Forming Machine Machine Color: As Request
Machine Weight: 5tons Machine Length: 8.5m
Machine Width: 1.5m Machine Height: 1.5m
Warranty: 2 Years
High Light:

chain sheet metal roll forming machines

,

3kw tile roll forming machine

,

ppgi tile roll forming machine

Steel Profile High Rib& Q Tile Double Layer Roofing Sheet Making Cold Roll Forming Machine



Working flow



Uncoiling→Sheet Guiding→Roll Forming→Pressing→Measuring Length &Shearing→Sheet to Support Table.



Componets

No.

Name

Amount

1

Passive de-coiler

1

2

Roll forming machine

1

3

Hydraulic cutting blade

1 Set

4

Hydraulic station

1

5

Computer control counter

1

6

Run out table

3

Detail Information



1. DECOILER
(1) Max. Width: 1000 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs


2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI

(2) NO. of roller Stations: 13roller stations and 22groups roller station
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

(5) Diameter of shaft: 70mm

(6) Frame panel thickness: 20mm

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type: 1.0"Chain

3. PRESSING AND CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type:Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3kW

(5) Press tool material: Cr 12 steel after heat-treated


4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Introduction


We can design and manufacture various types of machines according to the customers' requirement and we could provide technical guidance, production, installation, debugging and maintenance service to customers.

Terms of Payment


a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 30 days after received advance payment.
c.Guarantee period: 24 months.

Installation and Training:


a.If buyers visit our factory and inspect the machines, we will teach you how to install and operate the machine, and also train buyer's workers/technicians on live.
b.No visit, we will send you instruction manual and videos to teach you how to install and operate.
c.If buyer needs our technicians to go to their factory, it needs round air ticket, accommodation and etc.

After Service


a.One year guarantee for the whole machine.
b.24 hours technical support by email, Skype, WhatsApp, Wechat or phone call.
c.Suppose some parts were damaged, we would replace for free by express delivery within warranty period.



Customer visited factory



Welcome to visit our factory anytime

1.You can fly to Beijing or Tianjin airport, i can go to pick you.

2.You can fly to Shanghai, then from Shanghai Hongqiao station to Cangzhou XI railway station, i will go go to pick you.

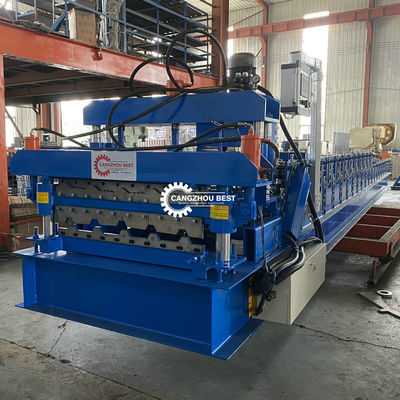

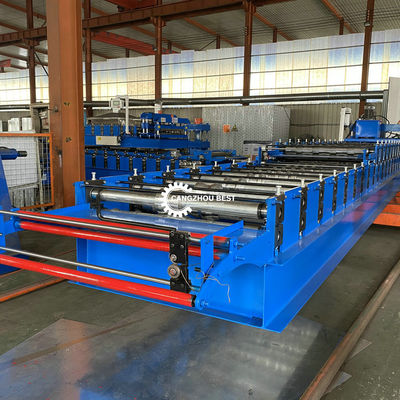

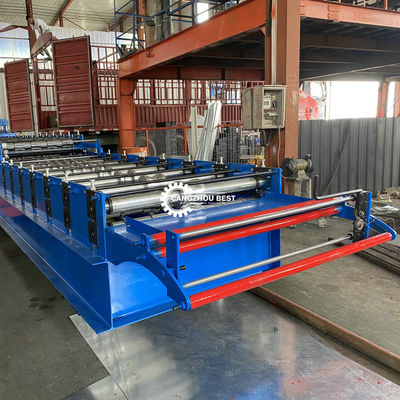

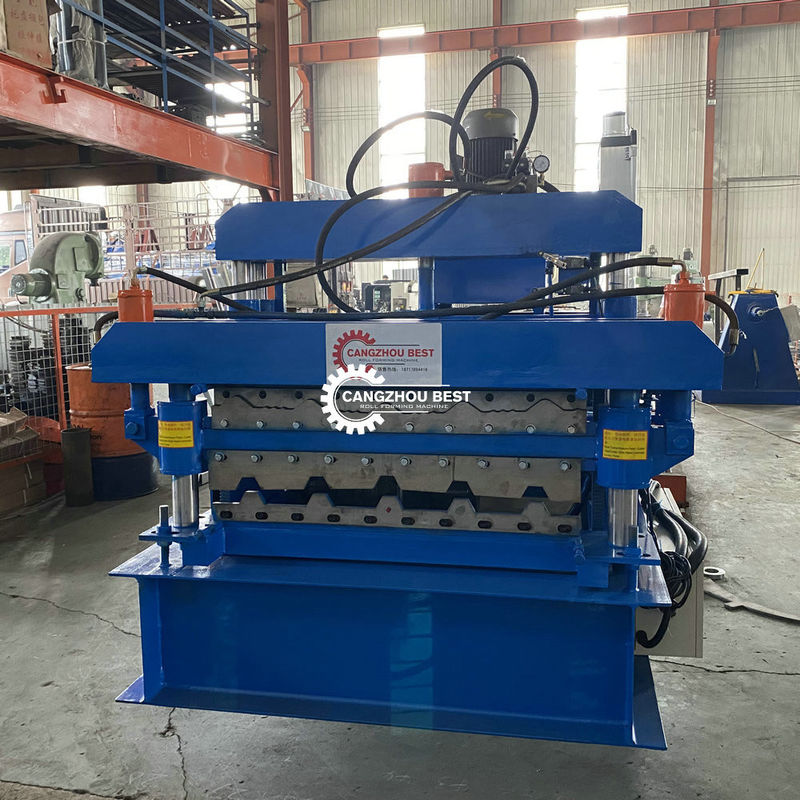

Machine Photo



Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine 0



Chain Driven Cold 3kw Ppgi Tile Roll Forming Machine 1
