SGS 8.5kw Steel Forming Machine Speed 8-12m/Min

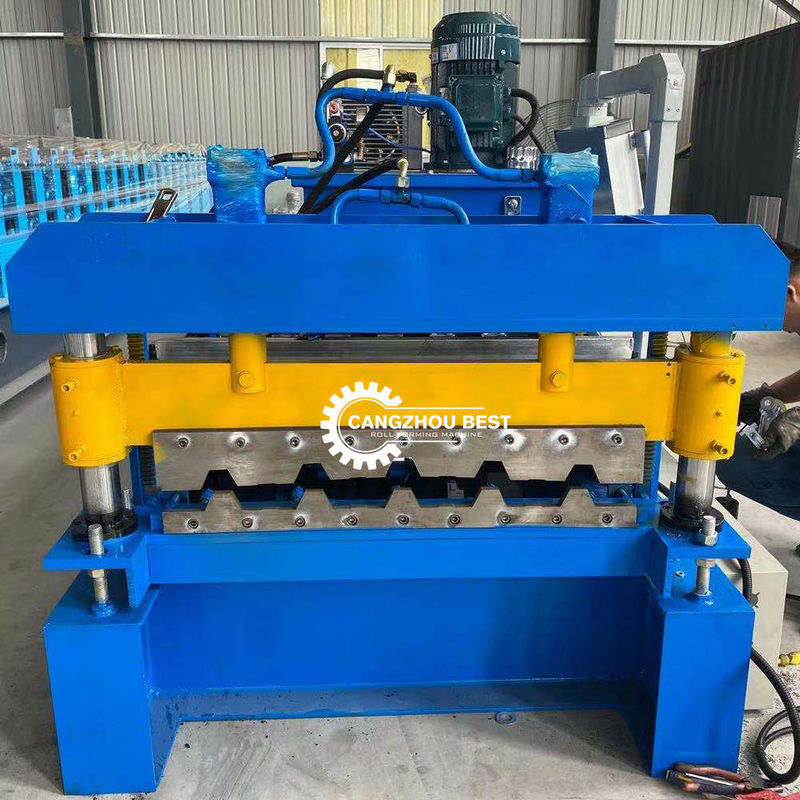

Large Image : SGS 8.5kw Steel Forming Machine Speed 8-12m/Min

Product Details:

Place of Origin:	HEBEI CHINA
Brand Name:	CBEST
Certification:	CE/BV/SGS
Model Number:	YX988

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	USD 12000 / SET
Packaging Details:	naked
Delivery Time:	35days
Supply Ability:	15sets/month

Contact Now

SGS 8.5kw Steel Forming Machine Speed 8-12m/Min

Description

Name:	Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine	Machine Color:	As Request
Payment Type:	T/T LC	Speed:	8-12m/min
Roller Material:	45#steel	Shaft Material:	45#steel
Power:	8.5kw
Highlight:	8.5kw steel forming machine , steel forming machine speed 8m/min , gearbox metal roof roll forming machine

SGS 8.5kw Steel Forming Machine Speed 8-12m/Min

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine

Our steel roof panel forming machines are engineered to produce various shapes of steel roof and wall sheets according to client specifications and profile drawings. These versatile building materials are available in multiple thicknesses and colors, ideal for applications in gymnasiums, airports, theaters, factories, warehouses, garages, exhibition centers, and other commercial structures.

Technical Specifications

Component	Model/Name	Quantity	Technical Description
1. Decoiler System	Arm type automatic decoiler (With ultrasonic control)	1 set	Arm-type, hydraulic expanding, electrical motor actively releases sheet, includes coil cart and pressing arm
2. Main Forming System	Pre-shearing device	1 set	Roller material: No.45 steel with surface hard chrome painted Roller shaft material: No.45 steel Roller inner supporting structure: guide column Cycloidal pin gear speed reducer motor driving Cutting blade material: Cr12 quenched treatment Punching die material: No.45 steel with nitride treatment
	Feeding guide device	1 set
	Film covering device	1 set
	Roll forming system	1 set
	Pressing system	2 sets
	Post-cutting device	1 set
	Complete safety cover	1 set
3. Output System	Support table	2 sets	For supporting the finished plate
4. Hydraulic System	Hydraulic station	1 set	Separated hydraulic station for main machine and decoiler
5. Electric Control System	Control system	1 set	PLC Control with encoder automatic cutting in length Operation stage: Touch screen + button AC frequency for speed adjustment

Component Details

Decoiler System

5T Manual Decoiler

Components: Mandrel and basement
Mandrel operation: Mechanical shrinking/expanding manually
Power: None required
Segment expansion range: 460-520mm
Mandrel center height: 0.65m
Feeding speed: Synchronized with roll forming machine

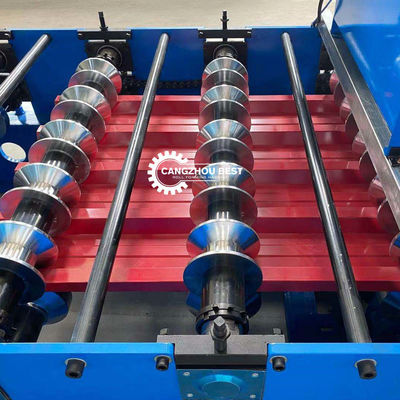

Roll Forming Machine

Rollers: Designed with Auto-cad, manufactured from 45# high-grade steel with CNC machining, hard chrome coated
Shaft: 45# high-grade steel, CNC machined
Supporting frame: Steel wallboard with guide column bearing basement
Roller stations: Up to 18 groups
Shaft diameter: 70mm
Frame panel thickness: 14mm
Bottom frame: 36# H-section steel

Cutter Device

Function: PLC-controlled cutting with automatic machine stop/start
Power supply: Hydraulic station
Frame: Welded steel construction
Stroke switch: Non-contact photoelectric switch
Cutting method: Post-forming cutting to required length
Length measuring: Automatic system

Hydraulic System

Operation: Gear wheel oil pump controlled
Components: Hydraulic tank, oil pump, hydraulic pipes, electromagnetism valves
Quality: Top brand components for stability and longevity
Efficiency: Power-saving operation with automatic shut-off

Electric Control System

Length measurement: Automatic with length measuring tooling
Quantity measurement: Automatic counting system
Control: PLC for length and quantity control
Interface: Button-type switches with LED display
Protection: Motor over-load, system over-current, short circuit protection
Display: Total length and quantity production data

Machine Gallery

Production Process Flow

Manufacturing Facility

Frequently Asked Questions

How to request an accurate quotation?

We provide accurate quotations based on drawing profiles - please share your specifications
Machine design variations (frame type, PLC brand, motor brand) affect pricing

Payment Terms

30% T/T deposit, balance payment before shipping after inspection
We accept L/C, O/A, and D/P payment methods

After-Sales Service

24-month warranty period
Free replacement of broken parts (customer covers express costs)
Lifetime technical support for the roll forming machine

How to Visit Our Company

Option A: Fly to Beijing airport, take high-speed train from Beijing Nan to Cangzhou Xi (1 hour), we provide pickup
Option B: Fly to Shanghai Airport, take high-speed train from Shanghai Hongqiao to Cangzhou Xi (4.5 hours), we provide pickup
