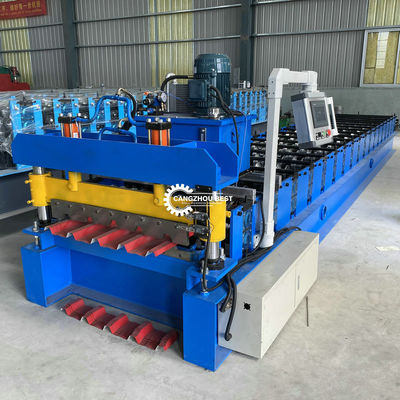

YX686 High Rib IBR Profile Roof Sheet Roll Forming Machine
Machine Component
| Name |
NO. |
Unit |
| 1.De-coiler |
1 |
set |
| 2.Forming machine |
1 |
set |
| 3.Cutting device |
1 |
set |
| 4.PLC control box |
1 |
set |
| 5.Hydraulic pump station |
1 |
set |
| 6.Production support table |
1 |
set |
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Machine Specifiations:
Decoiler
Max. Width: 1000mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000kgs
Type:Manual Or Hydraulic

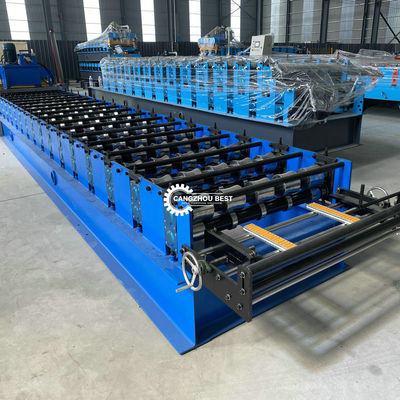

Roll Forming Machine
1. Dimensions: length 7500mm × width 1400mm × height 1300mm
2. Maximum speed of molding machine: 15 meters per minute
3. Forming color steel plate thickness: 0.2-0.8mm
4. Roller shaft diameter: 70mm

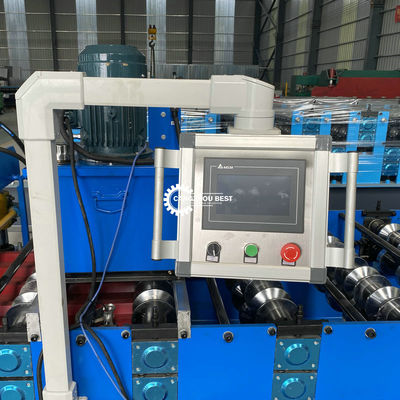

5. CNC computer operation panel
6. The unit includes: forming machine, hydraulic station, discharging rack, forming shears and control box.
7. Machine weight: about 3.0 tons,
8. Transmission mode: 1 inch chain drive
9. Forming row number: 4 peak tile type 13 row 5 peak tile type 11 row
10. Power host: 3kw
11. Pump station motor: 3kw
12. Distribution: The whole machine is controlled by industrial computer PLC;
13. Equipment chassis: 300H steel; vertical plate thickness is 14mm
14. Maximum error: Since the device is fully computer controlled, the maximum length error is ±1mm;

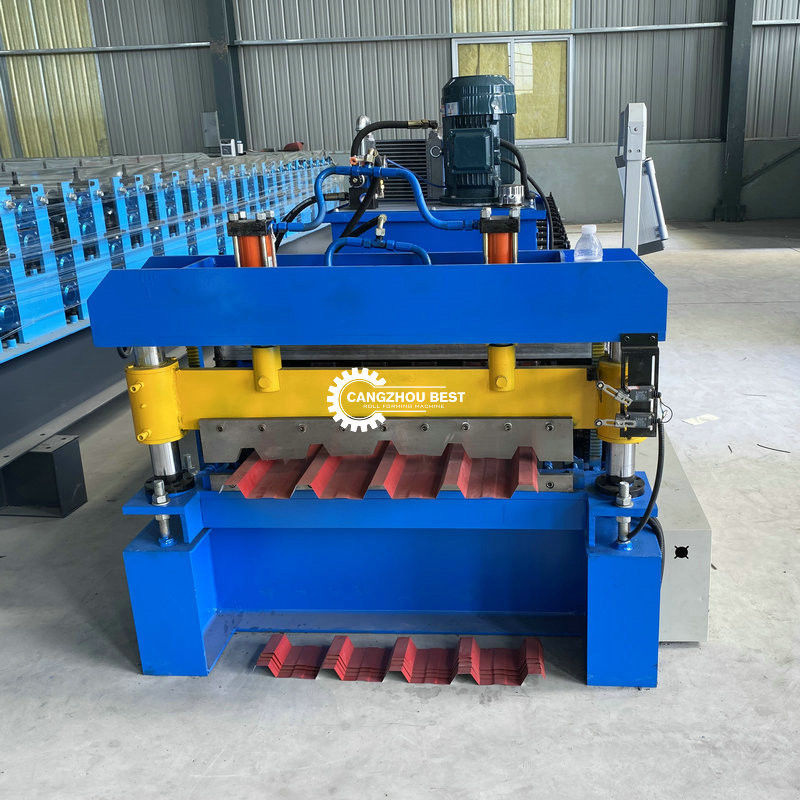

Cutter Device:
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Power:3lw
Hydraulic System:
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.
Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
Output Table
No power type
Length: 2m
Our Service
| Pre-Sales-Service |
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting, we will send you user manual and video to teach you to install and operate.
|
| After-Sales-Service |
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
|
Packing Detall
1*20 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.
3. electrics devices be packed with wooden box.for Standard export packing.
4. All Components Fixed by steel wire with Container.
