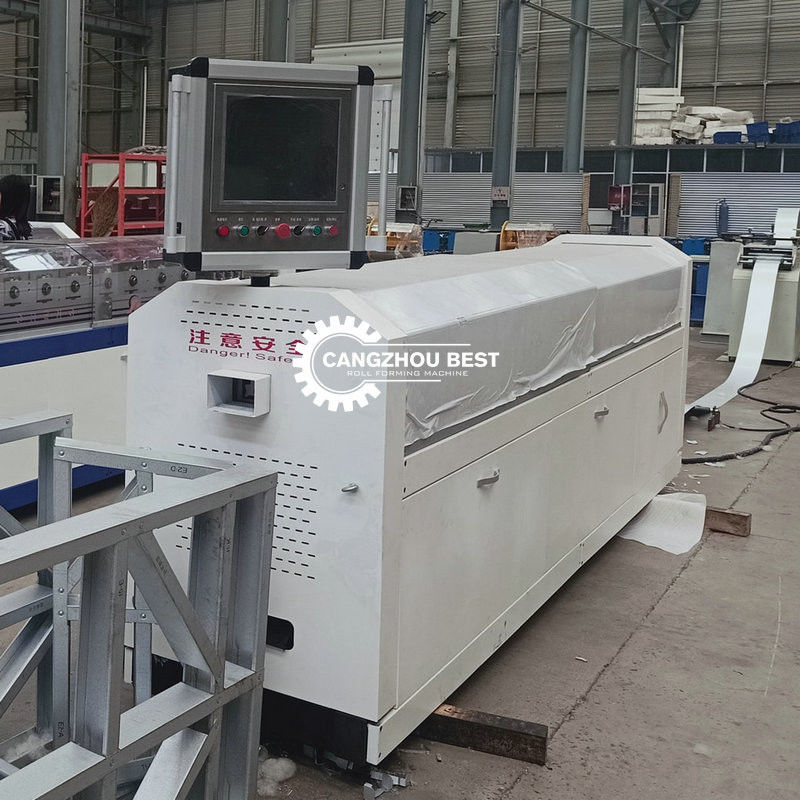

Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine

Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine
Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine

Large Image :  Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-C89
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12500-35500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine

Description
Name: Light Gauge Steel Frame Truss Steel Villa House Frame Roll Forming Machine Condition: New
Weight: 3.5 Ton Use: Roof
Production Capacity: 60m/min Place Of Origin: Hebei,China
Power(W): 7.5+5.5kw Warranty: 2years
Rolling Thickness: 0.7mm-1.2mm Key Selling Points: High Productivity
High Light:

1.2mm steel roll forming machine

,

high productivity steel roll forming machine

,

longlife light gauge steel framing machines

Light Gauge Steel Frame Truss Steel Villa House Frame Roll Forming Machine



1. Components of China prefab house light steel keel roll forming machine

NO.
Name
Quantity
1
Uncoil
1
2
Roll forming machine
1
3
Haydraulic puncher/cutter
6
4
Controlling system
1
5
Lable printer
1
6
Layout table
1
7
Hydraulic station
1
8
Design software
1































2. Machine Parameters of China prefab house light steel keel roll forming machine

No.
Item
Specification
1
Profile demension
C75*38*9mm
2
Feeding width
160mm
3
Raw material
G300-G550 GI/GL strip (G450 recommended)
4
Thickness range
0.6-1.2mm
5
Machine dimensions
3700*800*1100mm
6
Machine weight
2.5T
7
Forming method
9steps
8
Drive mode
Gear + sprocket
9
Main motor
7.5kw servo motor
10
Roller ,puncher and cutting bladee material
SKD11
11
Main shaft material
40Cr
12
Forming speed
2700m/hour
13
Punch tolerance
±0.5mm
14
Cutting tolerance
±0.75mm
15
Hydraulic motor power
7.5kw



3. Product information
* MF steel machine qualified electrical inspection and marking electrical switch logo
* The certificate of MF steel machine
* Qualified hydraulic personnel to test and mark the hydraulic switch logo
* MF steel machine setting table

* Quality check list of decoiler
* A list of the parts of the kit
* Electrical field installation checklist
* Electrical circuit diagram
* Hydraulic circuit diagram
* Electrical circuit diagram of the decoiler

* Spare parts description



4. Payment terms and after-sale service:

1) FOB Tianjin / CIF your port
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 60 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 100 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.



Different Software Optional

You can choose different software, which reduces your investment risk

Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine 0

Light Gauge Truss Villa House Frame Iso Steel Roll Forming Machine 1
