Ibr Metal Steel R 0.3mm Panel Roll Forming Machine

Ibr Metal Steel R 0.3mm Panel Roll Forming Machine
Ibr Metal Steel R 0.3mm Panel Roll Forming Machine Ibr Metal Steel R 0.3mm Panel Roll Forming Machine Ibr Metal Steel R 0.3mm Panel Roll Forming Machine

Large Image :  Ibr Metal Steel R 0.3mm Panel Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE BV
Model Number: YX-1025
Payment & Shipping Terms:
Minimum Order Quantity: 1set/month
Price: USD6500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Ibr Metal Steel R 0.3mm Panel Roll Forming Machine

Description
Name: Ibr Metal Steel R Panel Roofing Sheet Roll Forming Machine For Roofing Sheet Roller Material: 45# Steel
Rolling Thickness: 0.3-0.8 Mm Screen: Color Touch Screen
Bottom Frame: 350H Steel Control System: PLC
Shet Width: 1200mm Or 1220mm Cutting Type: Hydraulic
Side Panel: 20mm Roll Forming Speed: 15m/min(adjusted With Frequency Changer)
High Light:

ibr panel roll forming machine

,

0.3mm panel roll forming machine

,

longlife cold panel roll forming machine

IBR Metal Steel R Panel Roofing Sheet Roll Forming Machine For Roofing Sheet



1. Product information:

   Trapezoidal Metal Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school, gym, warehouse,etc.



2. Main Information:

Forming machine:

(1) simple structure and appearance, due to the complete machine adopts steel structure after welding process as a whole, it is compact and reasonable structure, containing strong, smooth and reliable operation.

(2) other important components of equipment and components are used in the domestic famous enterprises, from ensuring the equipment's performance.

(3) automatic fixed punching and cutting, fixed-length positioning accuracy, shape and tail beautiful and neat, not deformed.

(4) convenient installation and debugging of equipment, suitable factory production.

(5) the equipment low noise and high efficiency.

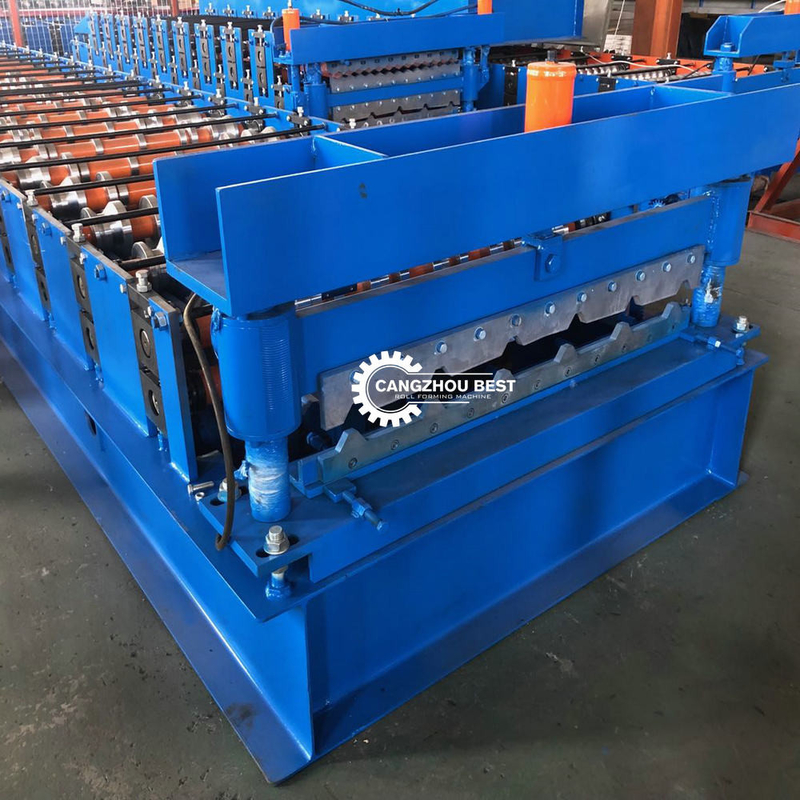

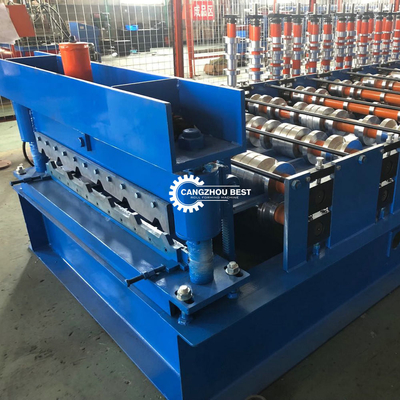

The cutting device:

(1) shear mode: host automatically stopped, and then a pair of scissors cut-to-length shear finished, host automatically, and resume production.

(2) cutting material: GCR12, quenching HRC58-62 ℃

(3) cutting length control: automatic cut-to-length

(4) cutting length error: ± 1.5mm

Control Panel: Panasonic brand

(1) voltage: 380V,50HZ,3 (can be adjusted according to customer requirements)

(2) automatic length cutting

(3) automatic production count

(4) computer-controlled length and number of control device automatically stops cut, guaranteed to set production quantity

(5) accurately modify length error

(6) control: touch screen and button both

(7) units of length: mm (length on a touch screen)



3. Machine details:

item
value
Applicable Industries
Building Material Shops, Home Use, Construction works , Building workshop
After Warranty Service
Video technical support, Spare parts
Local Service Location
None
Showroom Location
None
Condition
New
Type
Tile Forming Machine
Tile Type
Colored Steel
Use
roof and wall
Production Capacity
25 M/min
Place of Origin
China

Hebei
Brand Name
Haichi
Voltage
380V
Dimension(L*W*H)
850*140*140
Weight
6T
Certification
ISO9001
Warranty
1 Year

Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points
High Productivity
Rolling thinckness
0.2-1mm
Feeding width
1000mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Marketing Type
New Product 2019
Warranty of core components
1 Year
Core Components
Motor, Pump, PLC

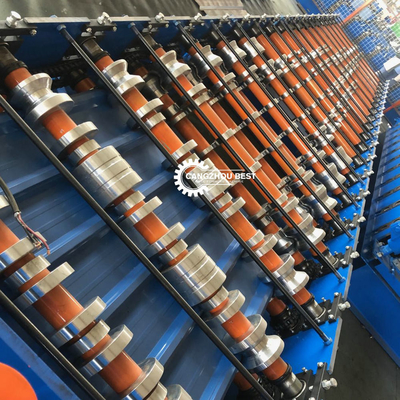

The wheels material
ball bearing steels
Molding line number
18 rows
kind of drive
hydraulic motor
chain drive
1.2 in.





4. Machine production process

Drawing confirmation
After confirming the final profile with the customer, the team of 12 engineers worked out detail workable
parts CAD drawings; After 5 recheck, the production manager arrangement the material for all machine parts.
Start production
Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start to manufacture.
Product Inspection
Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine.
Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing. Our Inspect team test all roller surface, confirm all part surface paint above 5um.
Mainframe and medium plate: Our Inspect team tests the mainframe and plate cutting precise.
Assembling machine
5 workers assemble and welding one machine body frame by three days.
Machine painting
Putty ensure weld parts surface smoothly, and environment-friendly paint ensures protect worker body and environment.
Machine Manual use test
Confirm the output sheet tolerance within 2mm.
Cutter production
According to the finally manufacture sheet, confirm the blade precise profile, Cr12 MOV steel cutting knife finished by laser cutting.
Storage
To protect the machine surface clear and without damage, we paint again and package by the film.



Why choose us?

1. Our company owned a professional design team, we can design different profiles according to customer’s demands.
2. We design and manufacture machines using advanced standard technology. We have strict control over the quality of the machines, our principle is that “never let one unqualified Machine leave our factory”.
3. Our machines are controlled by computer, PLC display, simple operation, stable and reliable operation, durable and maintenance-free.
4. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
5. Our machine has a long warranty and you can use it without worry after purchase.
6. After purchasing our machine, we will offer easily damaged parts freely.
7. All use well-known brand appliances.
8. Multilingual control system, including Spanish, Russian, English and Chinese.
9. Powerful teach teams with more than 12 years of working experience will help you, improve the design if it is not perfect before selling.
10. 24*7 hours before and after service in English, Russian, Spanish and others.


5. Our Service

1)Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.

2)Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3)After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of per day.

4)Warranty: 18 months

During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.



6. FEATURE OF PRODUCT

More efficient and accurate execution of production orders

High equipment reliability;
Little waste of materials and energy;
High productivity;
High quality materials, get a longer service life;
All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
Customized coil processing solutions to solve all aspects of technical problems.



Raw materials

In order to help customer save time find good supplier for materials: Prepainted galvanized steel coil, galvanized steel coil, galvalume steel coil (Aluzinc coil), aluminium coil and so on, we can directly provide customer high quality coil with compatitive price


We can produce according to your requirements.
