Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine

Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine
Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine

Large Image :  Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine

Product Details:
Place of Origin: Hebei,China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-77
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Standard
Delivery Time: 35 work days
Supply Ability: 15 sets/month

Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine

Description
Name: Galvanized PU Foam Roller Shutter Slat Door Roll Forming Machine Motor Power: 7.5kw
Raw Material: Aluminum Or Color Steel Usage: Door
Roller Material: 45#steel Frame Panel Thickness: 20mm
Rolling Thickness: 0.7mm-1.2mm Main Frame: 350 H Steel
Material Of Cutting Blade: Cr12 Shaft Diameter: 60mm
High Light:

1.2mm shutter door roll forming machine

,

galvanized shutter door roll forming machine

,

1.2mm roller shutter machine

Galvanized PU Foam Roller Shutter Slat Door Roll Forming Machine​







Working Flow:



Decoiler-------roll forming--------foaming-------roll forming ------cut to length-----output table



This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thus continuous automation production of foaming roller shutter door is achieved.



Machine components:

De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Foam device--------------------------------------1set

Flying saw----------------------------------------1set

PLC control box ---------------------------------1set

Production support table-----------------------1set



PU Foam Roller Shutter Door Roll Forming Machine price Technical Parameters:

Components

Technical Parameters

Quantity

1

Uncoiler

1.Width: 100-300mm
2.Speed: Based on the machine speed
3. I.D: 460-508mm; O.D: 1350mm

1 set

2

Roll Forming Machine

1.Shaft: High quality 45# Steel with tempering treatment HB280
2.Roller: GCR15 steel with quench treatment.
3.Forming Station: 23-28 stations
4.Forming Speed: 10-15m/min
5.Motor Power: 7.5kw( subjected to final design)
6.Transmission: Gear-box transmission
7.Dimension of the Line: Approx. 26000mmX1500mmX1400mm
8.Weight of the Line: Approx. 8T



1 set

3

Foaming machine

1.Type: Low Pressure Blowing Type
2
.Foaming Material: PU
3
.Power: 5KW
4
.Foaming Rate: 10 times in max
5
.Output: 120KG/Hour in max
6
.Screw Diameter: 6mm
7
.Dimension: Approx. 120x100x170 mm
8
.Weight: Approx. 300KG
9.  Clearing: by Solvent

 1 set

4

Fly Saw Cutting Device

1.Material Of Cutting Mold: Cr12 steel with quenched treatment HRC 60-62
2
.Cutting Pressure: 12-16Mpa
3
.Cutting Power: 2KW (subjected to final design)
4.  Tolerance Of Cutting Length: +/-2mm



1 set

5

Hydraulic Station

1. Power: 4kw
2. Solenoid Value: Beijing Huade



2 pieces

6

PLC System

1.Control System: Panasonic PLC
2
.Encoder: Omron brand
3
.Converter: Yaskawa
4
.Pressure of Hydraulic Station: bigger than 16Mpa
5.   PLC Control Box: 700mmx1000mmx300mm



1 set

7

Collection Station

1. Angle iron welded

1 set

1. the advantage of roller shutter door machine china

it has reasinable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the costomer with limit area or site operation.

2. Main Parameter and specification of the roller shutter door machinery

We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.

PU Foam slat shutter door roll forming machine china

Roll forming system

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;
Shaft: manufactured with 45# high grade steel by CNC machine tools;
Supporting frame: steel wallboard to guide the forming station bearing basement



Hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.
Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.

foaming roller shutter door:

1. Appearance and delicate: is made of high qualified steel plate (aluminum) rolling forming, not filled

with middle carbon fluorinated compounds of polyurethane foaming materials, heat insulation, sound insulation,

heat preservation.

2. Use fast: in the process of start, very swift and no noise, if use motor drive, power changed hands move

way can be met.

3. Durable: using high quality materials, sophisticated production technology and production technology,

meet slight collision after can sprung automatically deformation.

4. Save a space: the closed beta guide drive, promoting a door with other than to save the building, the internal

space, installation is more convenient.



PU Shutters Door Forming Machine

PU Shutters Door and window blinds 1. Rolling up and down, the noise is smaller, the work is quieter, which means less damage to the door every day, longer working hours, and more suitable for human care in some crowded areas. 2. PU shutter doors and windows are sound absorbing materials, so once you shake the shutter door, most of the street sound will be absorbed by the foam in the shutter door. 3. Fireproof and energy saving: The foam density is large, which can save area energy and fire. Therefore, it is highly recommended to install the main door and window in a safer and more economical room.
Before ordering:

We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.

Then your product is hot sale roof tile .

We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.

We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can order the material coil with lowest price.

During production:

We can send the pictures to show you the schedule of your roll forming machines.

We will show you my blogger account for you to learn knowledge of roll forming machine if you would like

We will ask you what color of the roll forming machine body. Produce the machine under your suggestion

After-sale service:

We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and you only need to pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine.

We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.









Standard Export packing:



1.one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

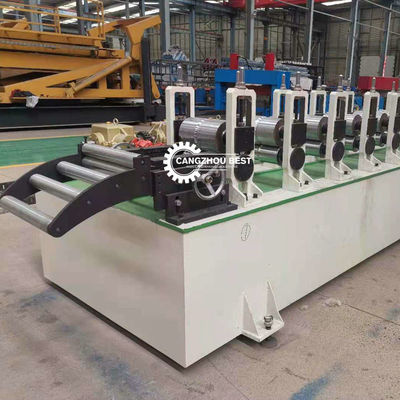

Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine 0

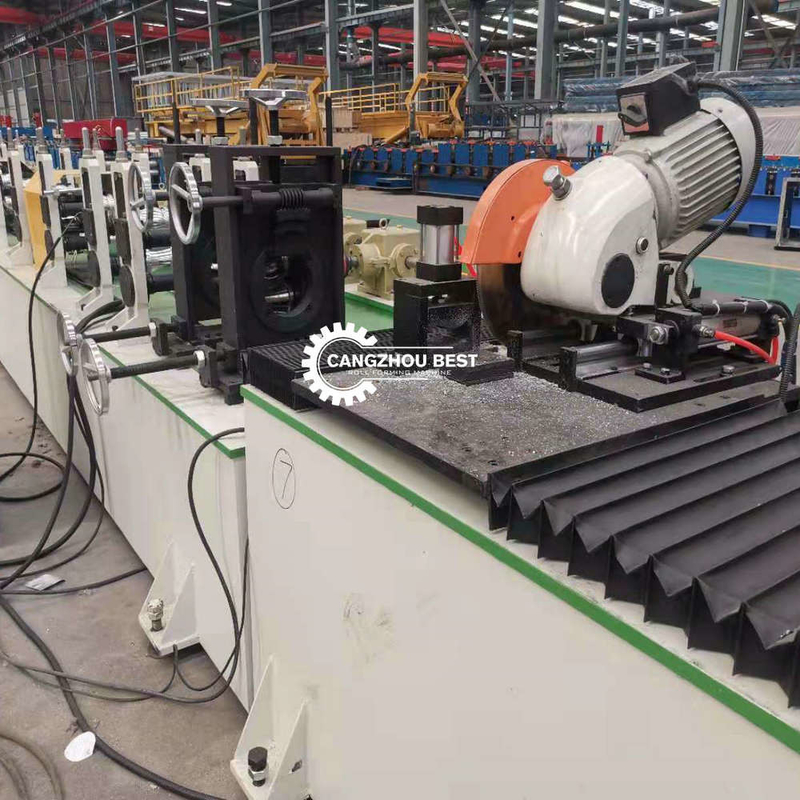

Galvanized Pu Foam 1.2mm Shutter Door Roll Forming Machine 1
