Product Details:
|
| Name: | Hurricane Window Shutters Panel Roll Forming Machine For Building | Raw Material: | 0.5-1.5 Mm |
|---|---|---|---|
| Control System: | PLC | Voltage: | 380V 50Hz 3phases |
| Customized: | Yes | Place Of Origin: | Hebei, China |
| Weight: | 2650kg | Roller Material: | GCr15 |
| Usage: | Building | Production Capacity: | 10-15m/min |
| High Light: | 0.5mm sheet roll forming machine,plc panel roll forming machine,0.5mm panel roll forming machine |
||

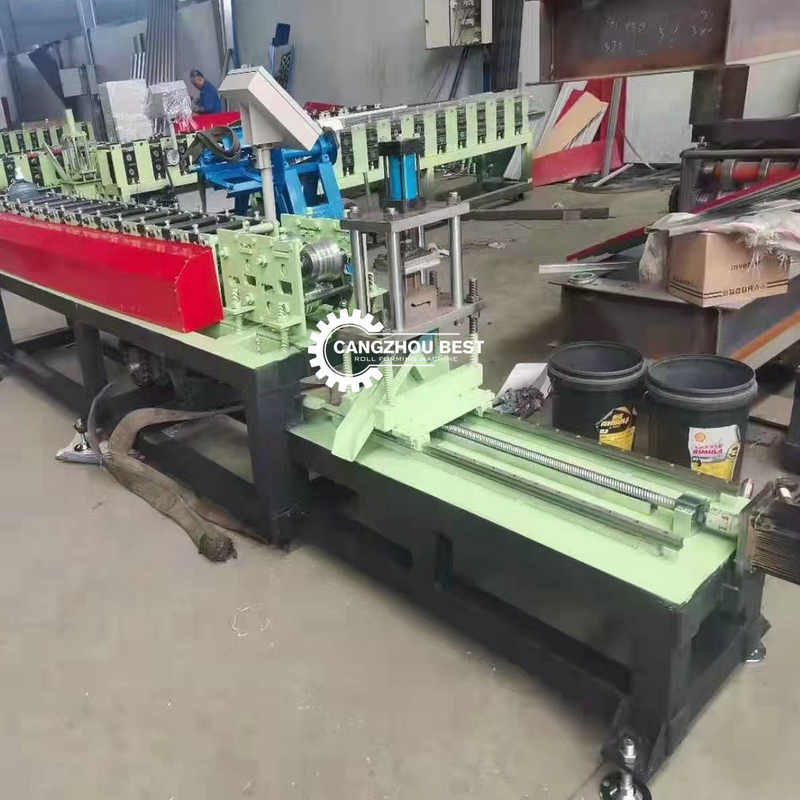

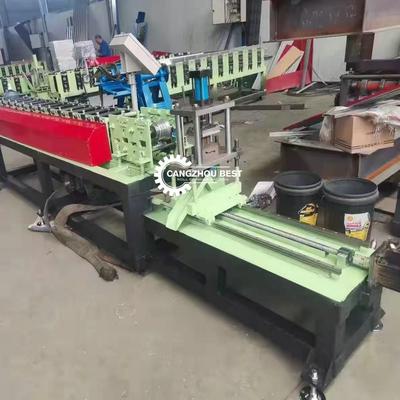

Hurricane Window Shutters Panel Roll Forming Machine For Building
1. Product Description
Our steel palisade fencing roll forming machine for different models based on different designs or customer's samples.It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
2. Technical Parameters
|
No.
|
Item
|
Specification
|
|
1
|
Can Formed Material
|
GI,AI
|
|
2
|
Equipment operation
|
Automatic
|
|
3
|
Voltage
|
380V 60Hz 3Phase or as your requirement
|
|
4
|
Thickness of sheet (mm)
|
0.8-1.2mm
|
|
5
|
Material width(mm)
|
As your requirement
|
|
6
|
Cover Width of the sheet after formed
|
as your drawing
|
|
7
|
The size of the roll forming machine
|
5000mmx800mmx1400mm
|
|
8
|
Speed
|
8-15m/min
|
|
9
|
Diameter of shaft
|
40mm
|
|
10
|
Weight of the Machine
|
3000-3500KGS
|
|
11
|
Material of rollers
|
C45 steel quenched and chromed
|
|
12
|
Motor brand
|
Siemens or Guomao
|
|
13
|
PLC
|
Siemens or Delta or Mitsubushi
|
|
14
|
Total power (kw)
|
8kw
|
|
15
|
Power of hydraulic system
|
4kw
|
|
16
|
Power of main molding core
|
4kw
|
3. Components of the machine
| No | Name | Quantity | Remarks | |
| 1 | Decoiler | 1set | Up to customer | |
| 2 | Main Machine | Leveling Device | 1set | |
| Punching Device | 1set | |||
| Roll Forming | 1set | |||
| Post Cutting | 1set | |||
| Hydraulic System | 1set | |||
| 3 | Electric Control System | 1set | ||
| 4 | Supporter | 2pcs | Up to customer | |
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading
capacity:5T,Inner diameter: 500-508mm
High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.
Using high qualiy thick shaft, the strength is more durable
The main body of the body without welding, all the use of cast steel, prevent the host body deformation.
4. Why choose this machine?
| 1 | Lifetime seivices |
| 2 | Introduced Mitsubishi PLC with touch screen to machine controll system. |
| 3 | One worker operation (minimum) |
| 4 | Lifetime>10years: roller cover with 0.05mm chrome 80mm diameter solid steel shaft Cutting blade with heat treatment. |
| 5 | Cr12 mould steel cutter with quenched treatment. |
| 6 | Product cut-to-length. |
| 7 | Technician overseas installing and training available |
5. Our Service
1) Free technical support and free accessories supply.
2) Engineer available to service machinery overseas.
3) One year warranty is provided.
4) Long life technical guidance for free.
5) We always offer technical support, quick response, all your inquire will be replied in 24 hours.
