900mm Metal Roofing Sheet Making Roll Forming Machine Color Steel
1. Advantage:
Overseas engineers can perform installation, instruction, commissioning, and maintenance.
The machine is controlled by a computer controller program, which can be set in advance to cut the
meter, length, quantity and punching position. The program will perform cut-to-length cutting by itself, saving manpower! With
multi-languages, it is convenient for users in various countries, simple and easy to operate, and can input multiple sets of
different work data, saving time, labor and labor! , High throughput!
The finished product of Profile Use Metal Steel Tile Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
2. Technical Parameters:
|
Feeding material
|
PPGl/aluminum/glgl
|
|
Thickness of the plate
|
0.3--0.8mm
|
|
Diameter of the axle
|
80mm
|
|
Rolling stages
|
14 stages
|
|
Productivity
|
8 16m/min
|
|
Total power
|
5.5kw machine motor + 4kw pump station motor
|
|
Voltage
|
220V 60Hz 3phase or as requirement
|
|
Base frame
|
350H steel
|
|
Side board thickness
|
16mm
|
|
Cutting blade
|
Cr12 with heat treatment
|
|
Cutting system
|
Hydraulic cuting system afer forming
|
|
Control cabinet
|
PLC and frequency changer in it
|
Our roofing sheet machine is customized, we will design and produce the machine as your personal requirements. Different country have different profiles, if you want this machine please just give me your profile.
|
No.
|
Name
|
Unit
|
Qty
|
|
1
|
Manual decoiler
|
set
|
1
|
|
2
|
Main forming machine
|
set
|
1
|
|
3
|
PLC control system
|
Set
|
1
|
|
4
|
Hydraulic pump station
|
set
|
1
|
|
5
|
post cut
|
set
|
1
|
|
6
|
electric motor
|
set
|
1
|
|
7
|
output table
|
set
|
1
|
Hydraulic cutting
1) Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
2) Power supply: hydraulic station
3) Frame: welding steel frame
4) Stroke switch: non-contact photoelectric switch
5) Cutting before forming: cut the sheet after roll forming to required length
6) Length measuring: automatic length measuring

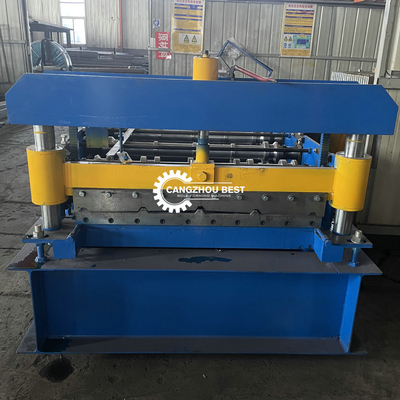

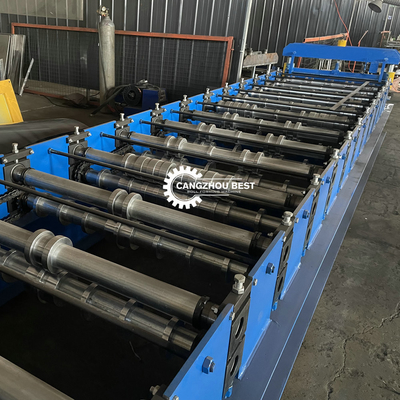

3. Machine Details:
Fully automatic tile Roofing Roll Forming Machine is composed of feeding, forming and cutting after forming. The products produced by tile press have smooth and beautiful appearance, uniform lacquer pattern, high strength and durability. It is widely used in industrial and civil buildings, such as factory buildings, warehouses, locomotive garages, hangars, gymnasiums, exhibition halls, cinemas and theatres. Its components include: whole machine, PLC computer control system, hydraulic pump station system, automatic post-shearing system.
5. Guarantee:
| 1 |
we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket, visa, accommodations, food and transportation in your country. |
| 2 |
You can send your men to our factory. we will teach them how to operate the machine without training charges. |
| 3 |
Actually, there's another cheap and easy way to choose. Every machine leaves our factory with one book of operation manual. You can read through the manual first, and get familiar with the machine. Then we can get a video call, and teach you on-line on how to operate the machine. |
| 4 |
Apart from the above training course, we also provide 18 MONTH warranty for all the easily broken part of the machine for free and whole-life technical service support. |
5. Packing:
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.
We can produce according to your requirements.
