Product Details:
|
| Name: | Zinc Coating Galvanized Steel Barrel Corrugated Roof Sheet Roll Forming Machine | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | gi roofing sheet roll forming machine,550 roofing sheet roll forming machine,550mm corrugated roll forming machine |
||

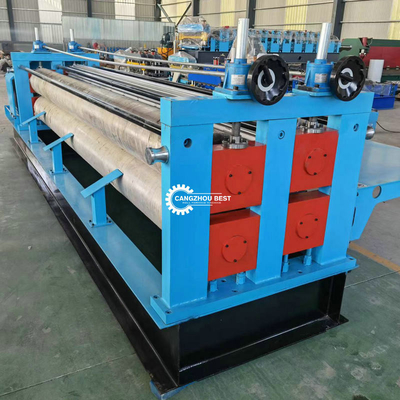

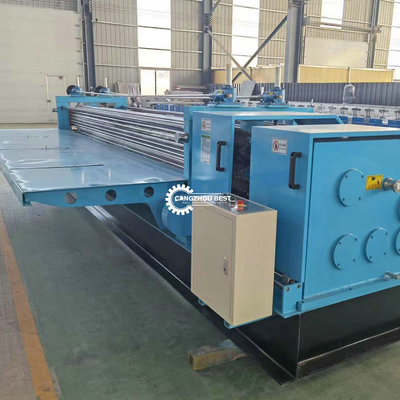

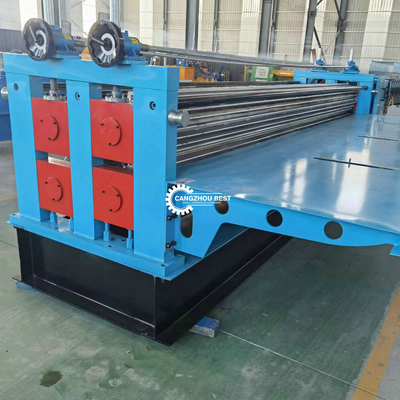

G550 Zinc Coating Galvanized Steel Barrel Corrugated Roof Sheet Roll Forming Machine
The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability. This machine can be customized. Just send us your smaple, we will design and produce the machine for you.
Main Specifications:
Working flow:
Decoiler------feeding------forming------ output table
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set

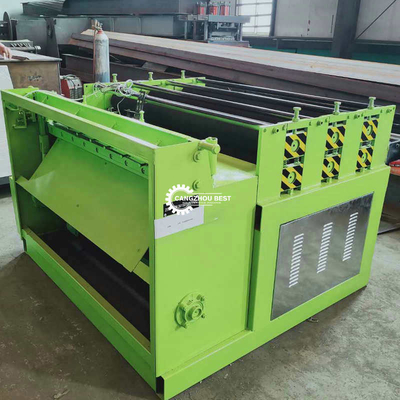

Leveling and Cutting device -------------------1set
PLC control box ---------------------------------1set
Production support table-----------------------1set
Main technical parameter:
1. DECOILER
(1) Max. Width: 1500 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2. LEVELING AND CUTTING DEVICE
(1)Stations:3groups
(2)Material for shaft: rubber
(3) Blade material: Cr12 steel
(4)Bottom frame material:35# H-section steel
(5)Type: electric
(6)Feeding power:1.5kw
(7)Cutter power:3.7kw
(8)Product table length: 6m without power
3.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3)Length Error: ±2mm
(4)Language: English and Chinese
(5)Voltage: 380v/50HZ, 3Phase(it depends on customer requirement)
4. FORMING MACHINE (sheet width 4m)
(1)Material Thickness:0.125-0.3mm PPGI and GI Q235MPA
(2)Roller station:2 Groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4)Material for shaft: high grade No.45 steel after treatment
(5) Machine frame:100mm steel panel welding
(6)Diameter of forming :390mm; Sheet to length shaft diameter:340mm
(7)Motor:15kw
(8)Control by switch
(9)Speed:10-15pcs/min
(10)Productity:2-4ton/hour
(11) Transmission: gear with Frequency
(12)Weight: about 8tons
Our service:
1). Our machine warranty is 3 years (non-man-made damage, accessories, technical support)
2). Technical guide is provided during whole life of the machine.
3). Oversea services will be provided but any cost thus incurred will be paid by the buyers.
4). We support customes inspect our factory or machines by video call.
5).After customer inspect the factory,if need translator service,we also can supply this service.10USD/H for salary.
6).Customer LOGO,Tel, can customize on our machines.
7).Voltage can customize according to customers’requirement.
8).If need raw material,we can supply the good suppliers for steel coil,alumium coil,steel strip and so on.
9).If need more machine pictures or videos,please contact me soon.
