Product Details:
|
| Name: | Powerful Roofing Iron Sheet 0.4mm Panel Roll Forming Machinery | Warranty: | 2 Years |
|---|---|---|---|
| Tile Type: | Steel | Place Of Origin: | Hebei,China |
| Roller Material: | 45# Steel | Custom: | Yes |
| Production Capacity: | 10-15m/min | Feeding Width: | 1000mm |
| Cutting Blade: | Cr 12 High Grade Steel | Power: | 3+3kw |
| High Light: | 0.4mm roof panel roll forming machine,ppgi roof panel roll forming machine,0.4mm roof panel machine |
||
Powerful Roofing Iron Sheet 0.4mm Panel Roll Forming Machinery
Chile popular Double layer roofing machine: can produce two type sheets, The input material are both 1000 mm width with thickness 0.3-0.8mm. Machine speed is 15m per minute. With pre-cutting device and double inches chain. This machine cheaper and stable. Widely used. We can also supply you the PPGI and GI coils. We can put the coils with the machine in the same container.
1. Machine Advantage:
Press Roof Sheet Production Machines Advantage:
1. Famous Brand, quality is guaranteed.
2. It can be produce Two kinds Profile can satisfy the client demand for spend less and Multi-purpose.
3. Full Automatic Computer Control make easy to operation.
4. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heat treatment 58℃-62℃ . The product quality is durable and long service life .
2. Machine Specifications
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Construction works
|
|
After Warranty Service
|
Video technical support, Online support, Spare parts
|
|
Local Service Location
|
None
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Type
|
Tile Forming Machine
|
|
Tile Type
|
Colored Steel
|
|
Use
|
floor wall step
|
|
Production Capacity
|
15 m/min
|
|
Place of Origin
|
China
|
|
|
Hebei
|
|
Brand Name
|
SYTT
|
|
Voltage
|
380V or as your requirement
|
|
Dimension(L*W*H)
|
5600*1300*1200mm
|
|
Weight
|
2500kg
|
|
Certification
|
CE
|
|
Warranty
|
1 Year
|
|
|
Online support, Free spare parts, Field maintenance and repair service
|
|
Key Selling Points
|
Automatic
|
|
Rolling thinckness
|
0.3-0.8mm
|
|
Feeding width
|
1200mm
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Marketing Type
|
New Product 2021
|
|
Warranty of core components
|
1.5 years
|
|
Core Components
|
Motor, Bearing, PLC
|
|
After-sales Service Provided
|
Online Support
|
|
Product name
|
Roof Sheet Forming Machine
|
|
Usage
|
Color Steel Construction
|
|
Raw material
|
PPGI PPGL GI GL
|
|
Cutting blade material
|
Cr12 High Grade Steel
|
|
Feeding width
|
900-1450mm
|
|
Control system
|
Taiwan Delta
|
|
Shaft material
|
45# Steel Outer Diameter: 70mm
|
|
Keywords
|
Colored Steel Roof Making Machine
|
|
Thickness
|
0.3mm~0.8mm
|
2)Components and Function
|
Manual Decoiler
|
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled automatically. Loading capacity:5T Inner diameter: 450-508mm |
|
Guiding Device
|
Adopt guiding bar and sliding block to control the width and position of the steel sheet. Pre-cutter used to cut sheet before roll forming , saving material . |
|

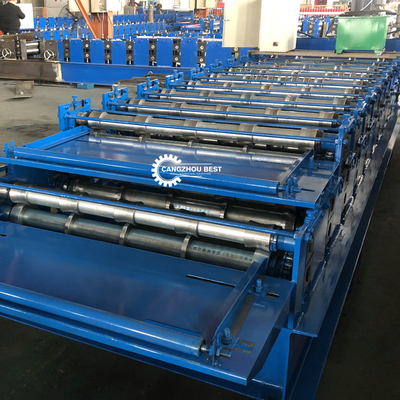

Roll Forming System
|
Material of rollers:High grade 45# steel,roller surfaces polishing, hard plating chrome coated 0.05mm , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. the 5mm thick sleeve instead of galvanized pipe.To make the shaft and rollers more stable in order to make the profile formed fitted. |
|

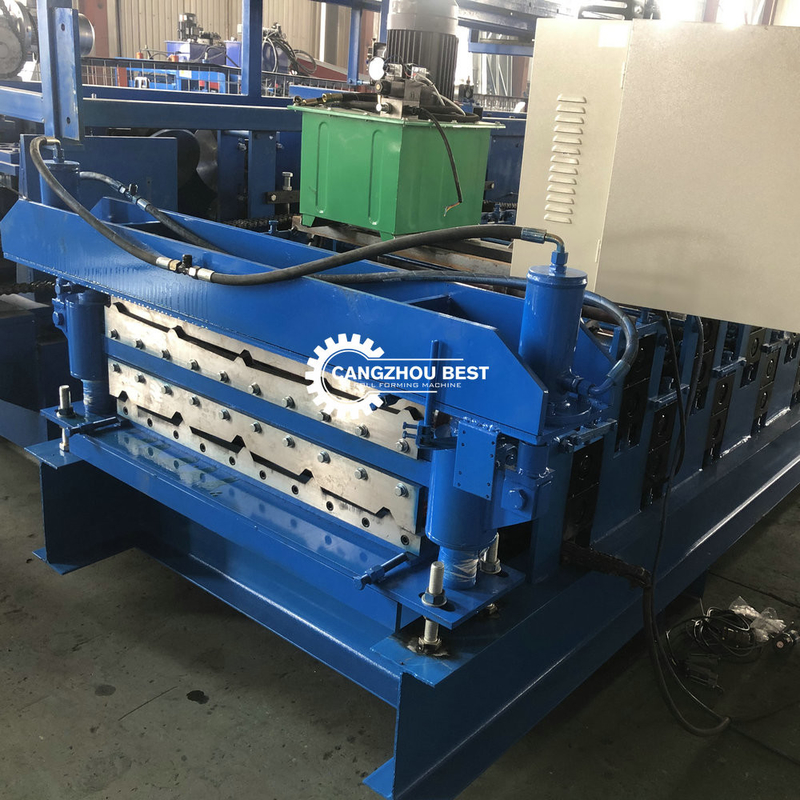

Cutting device
|
A. Adopts post cutting, the cutting blade material is Cr12 with quenched treatment, after cutting, there is no material wasted. B. Adopts welded frame for good rigidity. C. The cutting action is drove by the power from hydraulic station which guarantees the procession of the cutting and low noisy, long life. |
| Hydraulic System | It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job. |
|
PLC Control System
|
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use PLC:Delta |
| Run out table | To receive the finished products. |

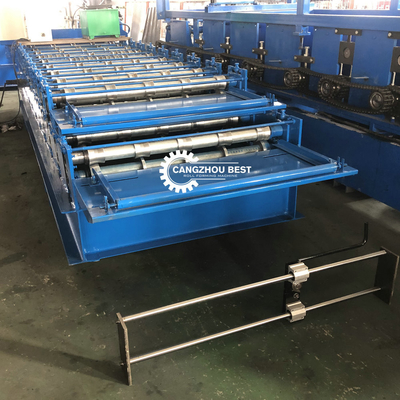

double layer cold roofing panel roll forming machine
Uncoiling—Feeding—Roll forming—Cut to length—Cutting—Output table
4. our service
Advantage of the service:
1. Provides engineering drawing design services
2.Provide machine customization service
3.Remote video service
4.Engineer on-the-spot installation service
5. Help customers booking shipping service
6.Help customers purchase raw materials service
1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery.
2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .
3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100 per day.
4.Warranty: 2years
5. Application:
