Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead

Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead
Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead

Large Image :  Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead

Description
Product Name: Steel Angle L/V Shape Corner Bead Roll Forming Machine Punching Type: Hydraulic
Control System: PLC Cutting Type: Flying Saw
Warranty: 2 Years Lifetime: 10years
High Light:

0.25mm galvanized roll forming machine

,

stud galvanized roll forming machine

,

0.25mm drywall roll forming machine

Steel Angle L/V Shape Corner Bead Roll Forming Machine

Specifications for reference

Material Thickness

0.25-0.8 mm

Working Speed

8-30 m/min

Feeding width

750-1220mm

Material of Roller

45# steel quenching process and chrome coated

Material of Main Shaft

45 steel forged

Main Motor Power

4 KW

Electrical Hydraulic Station Power

3 KW

Hydraulic Station Pressure

12.0 Mpa



1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs


2. ROLL FORMING MACHINE
(1) Material Thickness: 0.5-1.0mm PPGI and GI

(2) NO. of roller Stations:8groups
(3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°

(5) Diameter of shaft: 60mm

(6) Frame panel : casting type

(7) Bottom frame: 36# H-section steel
(8) Motor Power: 3kw

(9)Driven type: chain

(10)Speed: 8-12m/min


3. CUT-OFF DEVICE

(1)Material for Cut-Off Modular:Cr12 steel after treatment

(2)Hardness for Heat Treatment:HRC58 – 62°

(3)Cut-Off Type: Mould Cutting

(4)Motor for Hydraulic Stand: 3kw


4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3) Encoder Brand: Omron

(4)Length Error: ±2mm

(5)Language: English and Chinese

(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand



Warranty

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.



FAQ

1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 24 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.

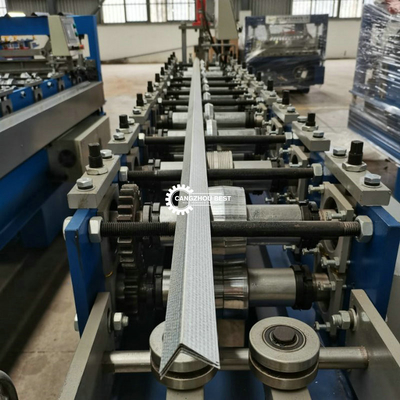

Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead 0

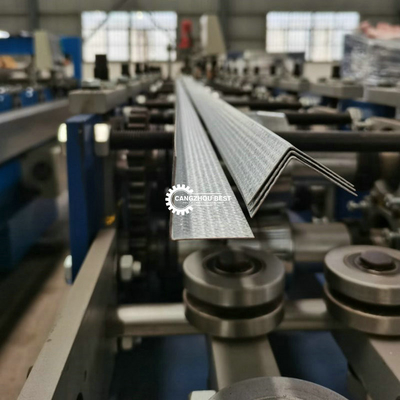

Drywall Stud Angle 0.25mm Galvanized Roll Forming Machine L/V Shape Corner Bead 1
