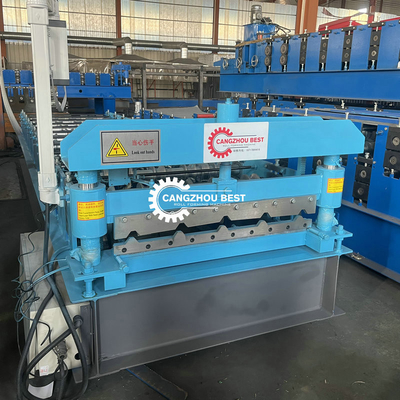

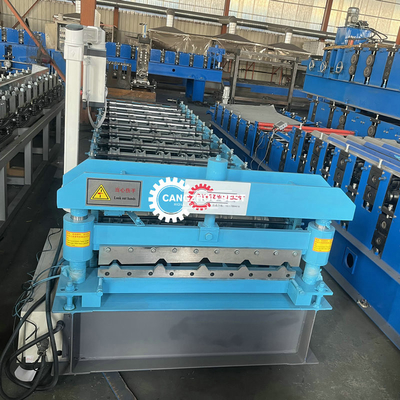

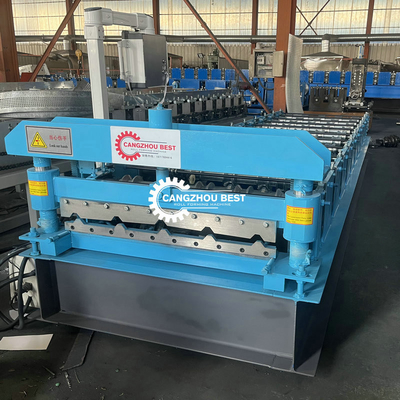

Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine

Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine
Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine

Large Image :  Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine

Product Details:
Place of Origin: China.Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-840
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

Box Profile Ibr PPGI Color Steel Roofing Sheet Making Machine

Description
Name: Color Steel Box Profile IBR Roof Sheet Making Cold Roll Forming Machine Material: PPGI/GI
Color: As Your Require Shaft Material: 45# Steel
Conreol System: PLC Warranty: 2 Year
High Light:

ppgi color steel roofing sheet making machine

,

ppgi ibr roof machine

,

ibr color steel roofing sheet making machine

Color Steel Box Profile IBR Roof Sheet Making Cold Roll Forming Machine



Draft Specifications



Name
Details
Remark
Feed frame roller
Color Steel

Machine base structure
350H steel welded

Machine architecture
Middle plate
20mm thick
Drive mode
Chain drive

Rollers material
45# steel
Surface hard chromium plating
Shaft diameters
Φ 70mm Solid shafts

Shaft material
45# steel

Motor power
4kw

Forming speed
0-12m per minute

Power
380v 50hz 3Phase
Or as customer request



Work Flow

Decoiler------feeding------roll forming------cut to length-----output table



Machine Specifiations:



Decoiler

Max. Width: 1000mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000kgs

Type:Manual Or Hydraulic

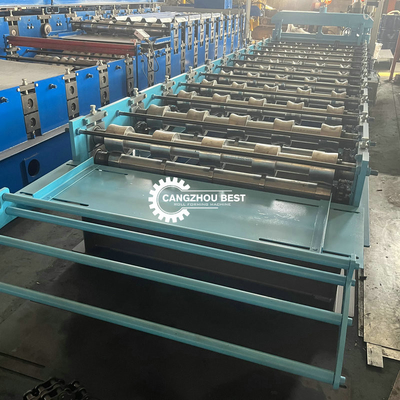

Roll Forming Machine

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated



Cutter Device:

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Power supply: hydraulic station;

Frame: welding steel frame;

Stroke switch: non-contact photoelectric switch;

Cutting after forming: cut the sheet after roll forming to required length;

Length measuring: automatic length measuring.

Power:3lw



Control System:

Name:PLC
Brand: Mitsubishi
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.



Hydraulic System:

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.



Output Table

No power type
Length: 2m



Packing Detall

1*20 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.

3. electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.
