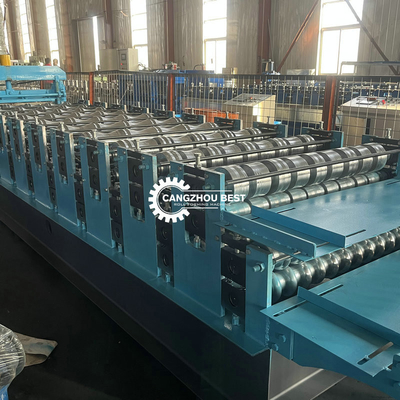

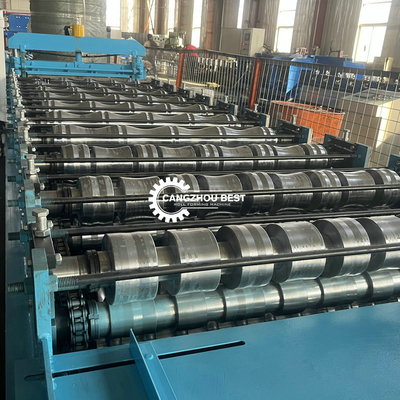

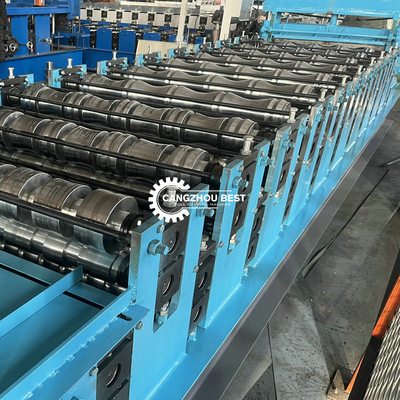

Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven

Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven
Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven

Large Image :  Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven

Description
Product Name: Galvanized Steel Profile Roman Tile&Corrugated Double Layer Roof Sheet Roll Forming Machine Warranty: 2 Years
Machine Speed: 4-6m/min Driven System: Chain Or Gearbox
Control System: PLC Cutting Type: Hydraulic
High Light:

roman roof tile roll forming machine

,

gearbox roof tile roll forming machine

,

gearbox driven galvanized roll forming machine

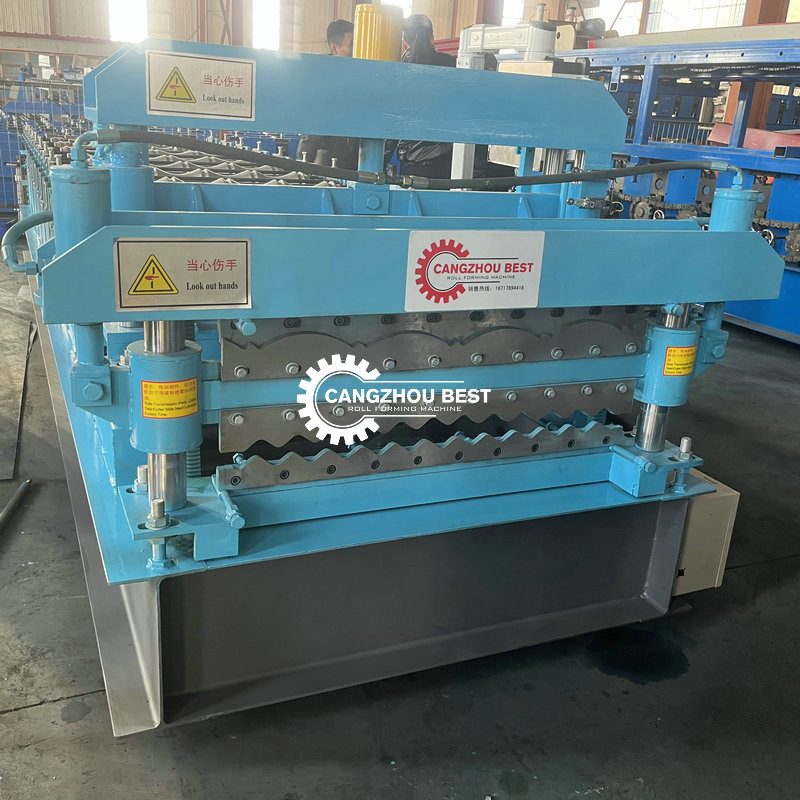

Galvanized Steel Profile Roman Tile&Corrugated Double Layer Roof Sheet Roll Forming Machine



Main Technical Parameter

Item Parameter
Material Type PPGI
Yield strength 345Mpa
Coil thickness 0.5mm
Coil width 1038mm/1054mm
Forming speed About 15m/min(Not include cutting and punching)
Main motor power 5.5kw
Roller material No.45 steel
Controller PLC
Cutter blade material Cr12 mould steel



Componets



1

Manual uncoiler

1 set

2

Sheet guiding equipment

1 set

3

Roll forming system

1 set

4

Pressing device

1 set

5

Post-cutting equipment

1 set

6

Hydraulic station

1 set

7

Electric controlling system

1 set

8

Support table

2 pieces



1.Process flow

Decoiling--feeding--roll forming--hydraulic cutting--product table



2.Manual decoiler

1) Capacity:5T

2) Coil inner diameter:450-550mm

3) Max coil width:1250mm



3.Roll forming machine

1) Machine structure:350H beam welded,18mm middle plate support

2) Shaft diameter:80mm

3) Shaft material:45# steel,tempered treatment

4) Forming stations:IBR:18stations

Corrugated sheet:16stations

5) Way of drive:chain drive,Chinese famous brand

6) Max rolling speed: 0-20m/min

7) Material of roller:45#forge steel processed with numerical control, polished and coated with chrome, surface with 0.05mm

8) Motor power:5.5kw

9) Voltage:380V,50HZ,3P



4.Hydraulic cutting system

1) Cutting method:Hydraulic cutting,by four pillars

2) Hydraulic power:5.5kw

3) Blade material:Cr12 with quenched treatment

4) Length tolerance:±1mm



5.Control system

1) Control system:PLC

2) PLC brand:Delta

3) Screen:touch screen,Delta brand from Taiwan

4) Encoder:Omron



6.Product tabel

Manual and automatic(as customers' request)



Terms of Payment
30% to be paid by TT as Down Payment,70% to be paid by TT before delivery.


Time of Shipment
40 daysafter down payment


Guarantee of Quality
The Seller shall guarantee the goods with materials and workmanship in accordance with the required on the drawings, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in drawings and guarantee a good smooth operation for 12 months after date of shipment (except consumables). This guarantee excludes the parts that require the normal plant maintenance. The guarantee is strictly limited to the repairing and the replacing of the mechanical parts supplied by us found to be defective provided that failure has occurred during the ordinary use of the equipment and it is not accepted and claim due to damage to people, property or loss of production.



Customized service:
The pictures and parameters you see are the machines customized by other customers before. We will customize the machines for
each customer according to their needs.
Please tell us your preferences and needs and let me customize the machines for you!



Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven 0

Galvanized Steel Profile Roman Roof Tile Roll Forming Machine Gearbox Driven 1
