|Name:||Double Layer Roof Sheet Roll Forming Machine||Machine Color:||As Your Request|
|Payment Type:||T/T LC||Speed:||8-12m/min|
|Roller Material:||45#steel||Shaft Material:||45#steel|
theatres roofing sheet roll forming machine,
touchscreen roofing sheet roll forming machine,
theatres metal roofing sheet forming machine

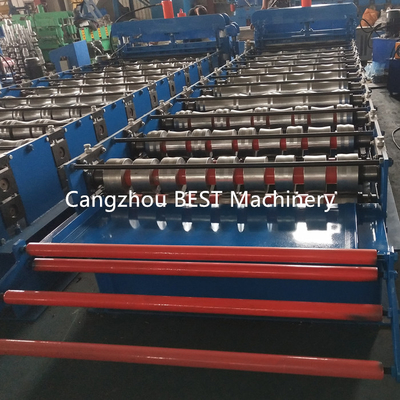

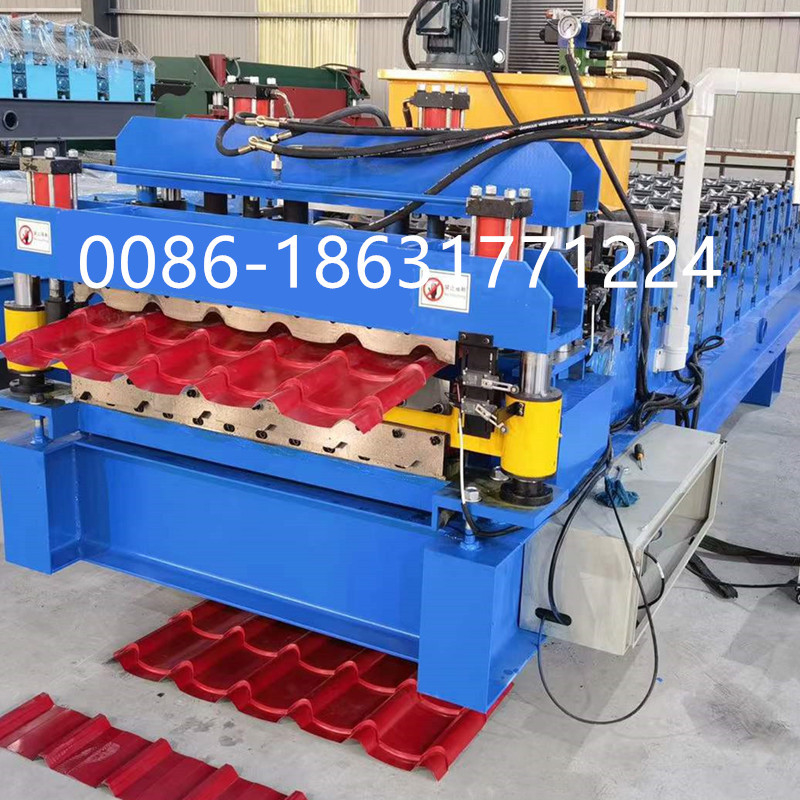

Double layer roof sheet roll forming machine
Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
|1. Decoiler system||Arm type automatic decoiler (With ultrasonice control)||1set||Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.|
|2. Main forming system||Pre-shearing device||1set||
1.Roller material:No.45 steel with surface hard chrome painted.
2. Roller shaft material: No.45
3. Roller inner supporting structure type: guide column
4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear
5. Cutting blade material Cr12 quenched treatment
6. Punching die material adopts No.45 steel with nitride treatment.
|Feeding guide device||1set|
|Film covering device||1set|
|Roll forming system||1set|
|Complete safety cover||1set|
|3. Output system||Support table||2set||For supporting the finished plate|
|4. Hydraulic system||1set||Separated hydraulic station for the main machine and decoiler.|
|5. Electric control system||1set||
1. PLC Control, encoder automatic cutting in length
2. Operation stage: Touch screen+ button
3. AC frequency for adjusting the speed
5T manual decoiler
Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
Power of the open and closure of segments: Mechanical;
Power of rotation of segment: Pull by forming system;
Number of segment: 4pcs;
Range of segment expansion: 460 ~ 520mm;
Height of center of the mandrel: 0.65m;
Feeding speed: depend on the roll forming machine speed;
Roll forming machine
Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;
Shaft: manufactured with 45# high grade steel by CNC machine tools;
Supporting frame: steel wallboard to guide the forming station bearing basement;
NO. of roller Stations:up 18groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Diameter of shaft: 70mm
Frame panel thickness:14mm
Bottom frame: 36# H-section steel
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.
Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
Electric control system
Automatic length measurement: one unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length; length inaccuracy can be amended easily.
Automatic quantity measurement;
PLC is used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved;
Control panel: Button-type switch, LED display length and quantity ;
Unit of length: millimeter;
Motor Over-Load, System Over-Current, Short circuit Protection function;
Display total length and total quantity produced.
|1.How to ask the accurate quotation of the framework making machine?|
|1.) Normally we give the accurate quotation based on the drawing profile, so if you want to get the accurate quotation, please show us the drawing profile first.|
|2.)Machine could be designed in many type and methods, for the machine frame, PLC brand, motor brand all will effect the price.|
|2. Terms of payment:|
|30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.|
|3. What is your after-sale service?|
|framework making machine warranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the T Bar Roll Forming Machine.|
|4. How to visit your company?|
|a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.|
|b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.|
Contact Person: Belle Song
