Product Details:
|
| Name: | Glazed Tile IBR Sheet Double Layer Making Machine Trapezoidal Roof Press | Voltage: | 380V, 380V 50Hz 3phases |
|---|---|---|---|
| Machine Weight: | 6.5 Tons | Roller Material: | 45#steel |
| Shaft Diameter: | 70mm | Production Capacity: | About 4m/min |
| Driven Type: | Chain | Sheet Thickness: | 0.3-0.8mm |
| Feeding Width: | 914-1450mm | Cutting Blade: | Cr112 |
| High Light: | ppgi glazed tile making machine,ppgi ibr sheet making machine,chain driven ibr sheet making machine |
||
Glazed Tile IBR Sheet Double Layer Making Machine Trapezoidal Roof Press
1. Description
We can provide the solution of the color steel single roll forming machine used in the production process of the profile industry production team.(Steel roof, anti-corrosion and durable)
2. Parameters:
3. Technology Index
The rollers which are key parts of the machine designed by advantaged software And experienced engineers,to make sure final precise profile. For top quality products of our clients. And machining by CNC machine with hard surface treatment.
Cutting System
Meterial of the cutting:Cr12Mov with quenched treatment.
It can decide cut panel dimension acoording to the hydraulic drive and Plc computer control system.Hydraulic system supply stable and fast power to make high speed total production.
Un-coiler:
UnCoiler : 5 ton manual
Decoiling Holder: 2200mm×1620mm×1700mm
inside diameter of the uncoiler: 510-610mm
Passive Out table
Size of the out table: 2000*1350*1000mm, two pieces
4. Our service:
| Terms of payment | 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery. |
| Delivery | 30 days after receipt of advance payment. |
| Service |
we sent technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day. |
| Warranty |
18 months limited warranty During warranty: parts are free but buyer pay the shipping fee. |
5. Summary
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 25+ years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 60m/min;
5). Very easy to install and operate the roll forming machine.

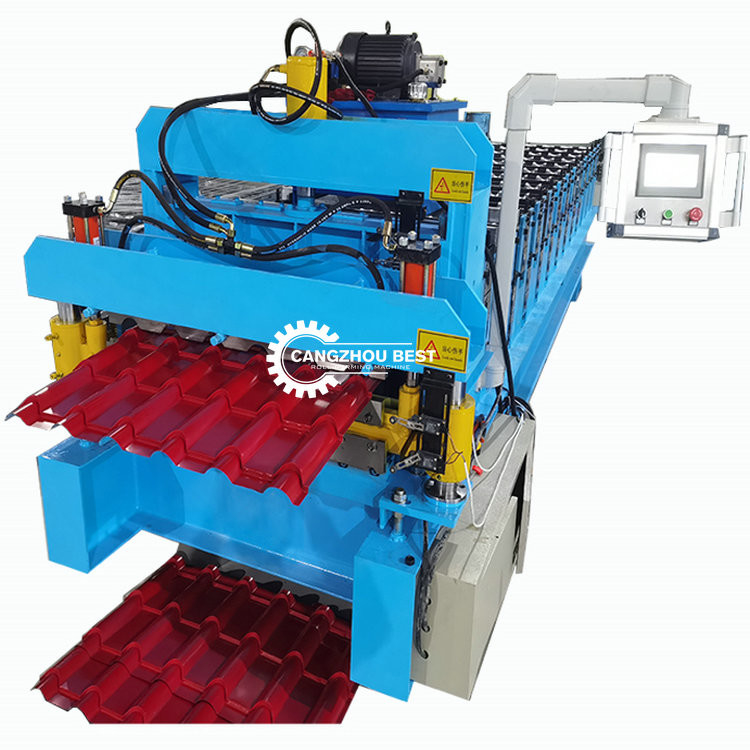

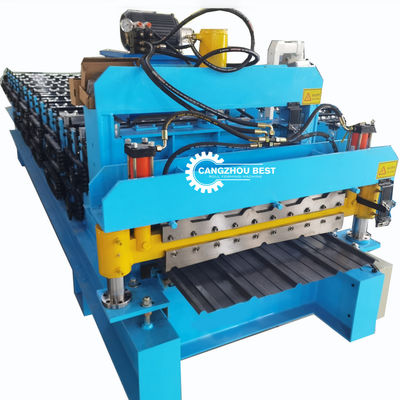

6. Machine photos:
