|Name:||Glazed Tile IBR Sheet Double Layer Trapezoidal Roof Press Making Machine Roll Forming Machinery||Material Of Roller:||45# Steel Polished And Coated With Chrome|
|Material Of Shaft:||45# Steel Polished And Coated With Chrome||Diameter Of Shaft:||70 Mm|
|Frame Panel Thickness:||20 Mm||Bottom Frame:||350 H-section Steel|
|Motor Power:||3kw||Raw Material:||0.3-0.8mm|
ibr roofing sheet roll forming machine,
gymnasiums roofing sheet roll forming machine,
0.8mm roof tile roll former

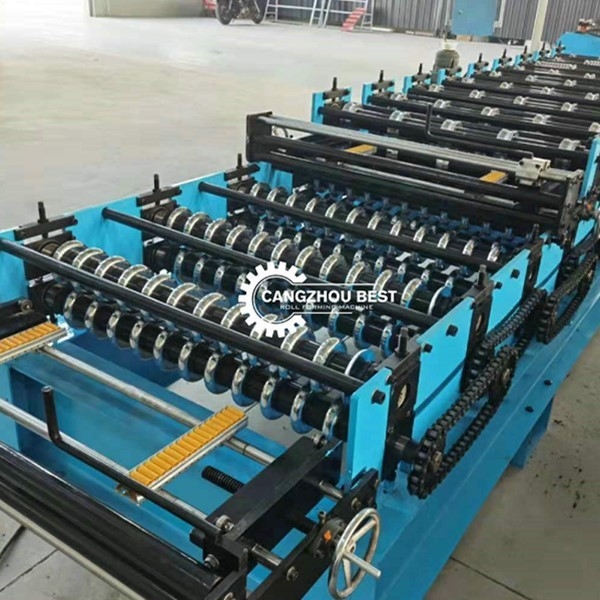

Glazed tile IBR sheet double layer trapezoidal roof press making machine roll forming machinery
Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc.
Decoiler------feeding------roll forming------cut to length-----output table
Main technical parameter:
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.2-0.8mm PPGI and GI
(2) NO. of roller Stations: 16groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 350 H-section steel
(8) Motor Power: 3kw
(9)Driven type: 1＂Chain

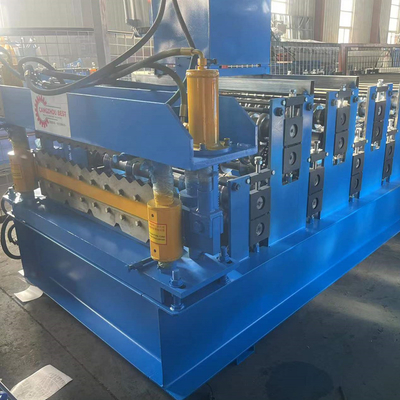

3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Voltage: 380v/50HZ, 3Phase
|1.working size||22m x 2m x 4m|
|4.Wires/cables||4-6mm²(length according to workshop)|
|5. Labor cost||2 workers|
|6. Tools||Spanners and screwdriver|
|7.Lift device||3-5t forklift or crane|
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine. Our professional engineer engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept.
We Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine, slitting machine, bending and cutting machine, some auxiliary equipment.
