0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing

0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing
0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing 0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing 0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing

Large Image :  0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing

Description
Name: Durable And Automatic Roofing Sheet Manufacturing Production Line Voltage: 380V, 380V 50Hz 3phases
Machine Weight: 5.5 Tons Roller Material: 45#steel
Shaft Diameter: 70mm Production Capacity: About 4m/min
Driven Type: Chain Sheet Thickness: 0.3-0.8mm
Feeding Width: 1000mm Cutting Blade: Cr112
High Light:

touchscreen fully automatic roll forming machine

,

0.25mm fully automatic roll forming machine

,

0.25mm automatic roll forming machine

Durable And Automatic Roofing Sheet Manufacturing Production Line



1. Description

We can provide the solution of the color steel single roll forming machine used in the production process of the profile industry production team.(Steel roof, anti-corrosion and durable)



2. Parameters:

material colored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.3-0.8 mm
material expand width 1000mm
Efficiency width 835/840mm
Machine details
roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material high grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm or as your requirement
main frame 300 H steel
forming steps

up layer:14rows

down layer:16 stations

productivity 20-25m/min
hydraulic station power 3.7 KW
hydraulic pressure 10-12MPa
appearance size 8700mm*1500mm*1500mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirement
Cut Mode Hydraulic forming after cutting off
Cutter materia Cr12 Heat Treatment
Electronic control system PLC, Touch Screen, Encoding counter
Color Blue, green or yellow or as your requirement
Rolling material 45# steel,roller surfaces polishing, hard plating



3. Main Features

1) This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.

2) Rollforming process:uncoiler, rollforming, forming step effect, cut to length.

3) Fully Automatic Control System with PLC.
4) Easy operation: Key in the length and quantity on the control panel.
5) two years warranty for free, and beyond two years if any part broken, tell us and pay us we delievery any part u need. And support technical skills for machine for whole life.
6) we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
7) One roll forming machine only can produce one profile. and we also can produce double or three layer roll forming machine.



4. Our service:

Terms of payment 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery 30 days after receipt of advance payment.
Service

we sent technician to your country to fix the machine.

The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.

Warranty

18 months limited warranty

During warranty: parts are free but buyer pay the shipping fee.



5. why choose us?

We are professional manufacturer, we can produce best quality machine for you.

Our factory have strong design ability, we can design machine as your requirements.

Engineers have much experience for installation and training experience overseas.

Sales team have successfully exported our machines to many countries.

The machines provide two years machine warrant and whole life technical support.

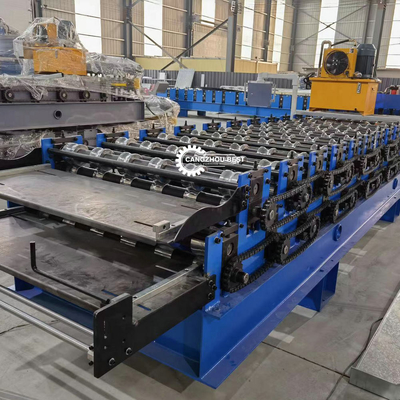

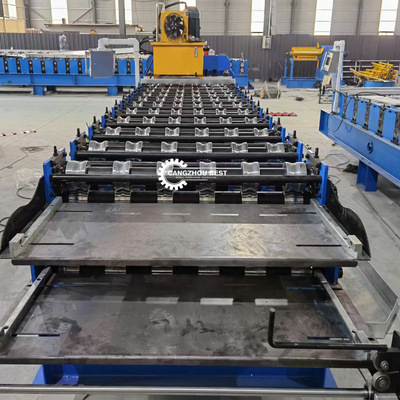

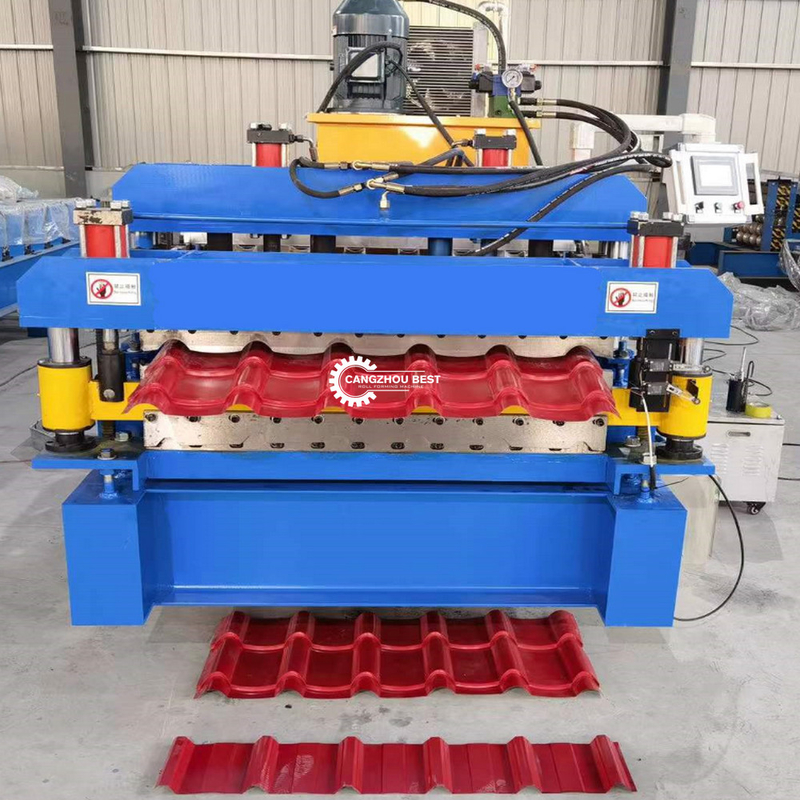

6. Machine photos:

0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing 0

0.25mm Touchscreen Fully Automatic Roll Forming Machine Roofing Sheet Tile Manufacturing 1
