Product Details:
|
| Name: | 4 Inch Spandrel Ceiling Panel Roll Forming Machine For Roofing | Cutting: | Hydraulic Cutting |
|---|---|---|---|
| Shaft: | 75mm | Cutting Blade Material: | Cr12 |
| Delivery Time: | 25-30 Days | Shaft Material: | 45# Steel, Quenched |
| Rolling Thickness: | 0.3-0.8mm | Marketing Type: | Hot Product 2021 |
| Voltage: | 380V 50Hz 3phases | Side Panel: | 20mm |
| High Light: | spandrel ceiling panel roll forming machine,4 inch panel roll forming machine,4inch roofing sheet roll forming machine |
||

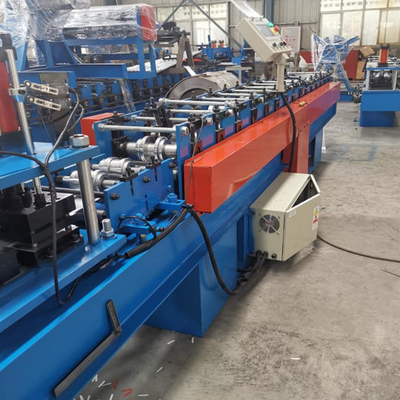

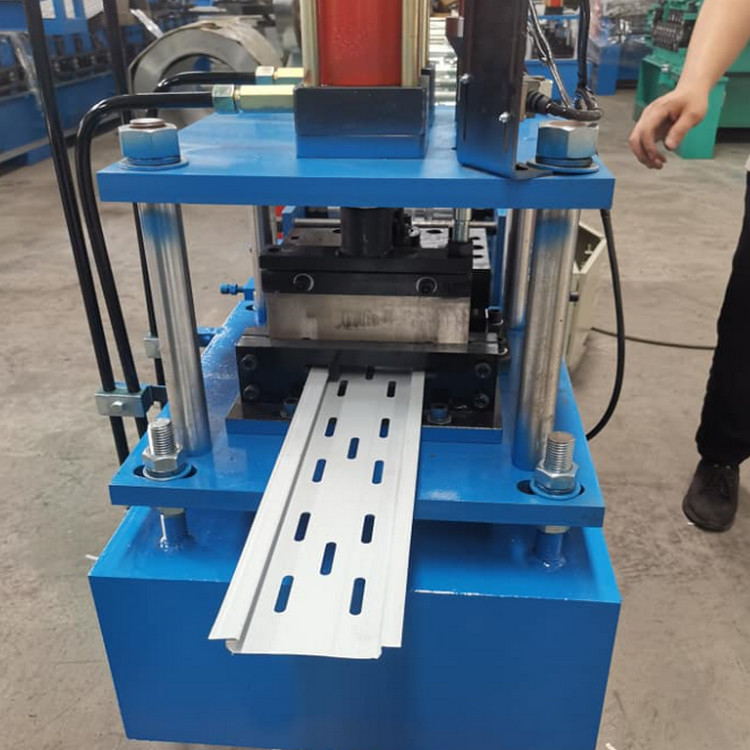

4 Inch Spandrel Ceiling Panel Roll Forming Machine For Roofing

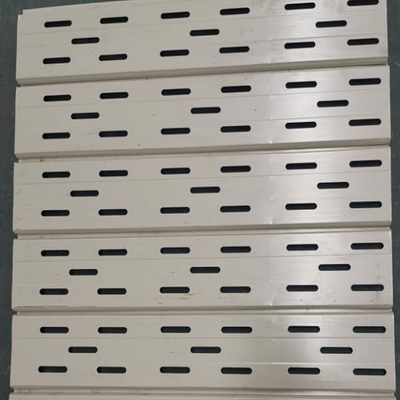

Automatic Spandrel Ceiling Wall Panel Roll Forming Machine has different types and widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product .The finished goods Spandrel roof is made from pre painted metal sheet or pvc materials.Spandrel has a functional beauty for a perfect finish on eaves, ceilings & overhangs.
Main Parameters:
|
No.
|
Automatic Spandrel Ceiling Wall Panel Roll Forming Machine
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil/Aluminium Coil
|
|
2
|
Roller
|
16Rows
|
|
3
|
Dimensions
|
7.0*1.3*1.55m
|
|
4
|
Motor Power
|
7.5Kw
|
|
5
|
Pump Station Motor
|
5.5Kw.Lichao Brand
|
|
6
|
Thickness of the plate
|
0.6-1.2mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ80mm
|
|
10
|
Weight
|
About 4800kgs
|
|
11
|
Main structure of the machine
|
400H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
18mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer's need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|
3. Machine Details:
Brand: The famous brand from Jermany or according to customer's need
4. Guarantee:
| 1 | we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket, visa, accommodations, food and transportation in your country. |
| 2 | You can send your men to our factory. we will teach them how to operate the machine without training charges. |
| 3 | Actually, there's another cheap and easy way to choose. Every machine leaves our factory with one book of operation manual. You can read through the manual first, and get familiar with the machine. Then we can get a video call, and teach you on-line on how to operate the machine. |
| 4 | Apart from the above training course, we also provide 18 MONTH warranty for all the easily broken part of the machine for free and whole-life technical service support. |
5. Packing:
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packedwith waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 18 months.When the machine isused in China,we will install and debug the machine for free;if it is used at abroad,we willsend the professional technician to debug. Buyers should take all the fees for technicianstravelling abroad.
- 3 AlI the parts in the roll forming machine is free to maintain all the life,if in 18 months ourcompany bear the cost for exchanged the broken part like the new parts cost and expresscost,if more than 18 month,we also free to maintain the broken parts but for send the newparts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chi-nese and English) to you with the machine,they can teach you how to operater themachines.
Our service:
Before ordering:
We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.
Then your product is hot sale roof tile .
We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.
We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can order the material coil with lowest price.
During production:
We can send the pictures to show you the schedule of your roll forming machines.
We will show you my blogger account for you to learn knowledge of roll forming machine if you would like
We will ask you what color of the roll forming machine body. Produce the machine under your suggestion
After-sale service:
Warranty :One year,and we will provide technical support for whole life of the equipment.
Delivery time: Within 25 days after deposit receipt your payment
Guarantee period: 24months free service/ pay service all the machine life
Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your
workers/technician face to face.
We can produce according to your requirements.
