Product Details:
|
| Product Name: | Guide Pillar 30m/min T Bar Main/Cross Ceiling T Grid Roll Forming Machine | Color: | Blue Or According To Your Requirement |
|---|---|---|---|
| Control System: | PLC | Cutting Type: | Non-stop Cutting |
| Warranty: | 2 Years | Lifetime: | 10years |
| High Light: | guide pillar stud and track machine,30m/min stud and track machine,ceiling grid stud and track machine |
||

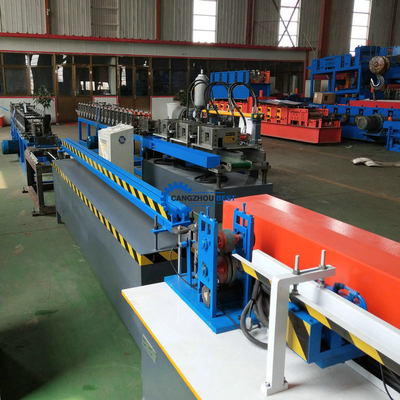

Guide Pillar 30m/min T Bar Main/Cross Ceiling T Grid Roll Forming Machine

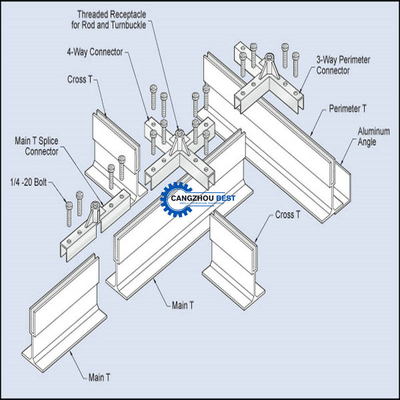

The T-bar is a technical profile for supporting suspended ceiling panels (T-grid suspended ceiling), usually sized 60x60cm and 60x120cm. This highly technical system consists of three different profiles with length 600, 1200 (cross tees) and 3600mm (main runner) although many other sizes exist on the market like the Imperial system.
Main Technical Parameter
|
Item |
Parameter |
|
|
Suitable Material |
Type |
Galvanized Steel |
|
Thickness |
0.3-0.7mm |
|
|
Main Motor Power |
5.5kw |
|
|
Hydraulic Motor Power |
3kw |
|
|
Total Power |
8.5kw |
|
|
Forming Speed |
About 15m/min |
|
|
Control Type |
PLC |
|
Specifications
|
Manual decoiler |
1).Material coil inner diameter: 450mm-550mm 2).Max coil width:300mm 3).Carrying capacity: 1.5T |
|

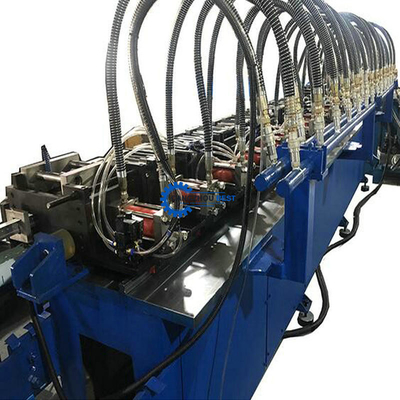

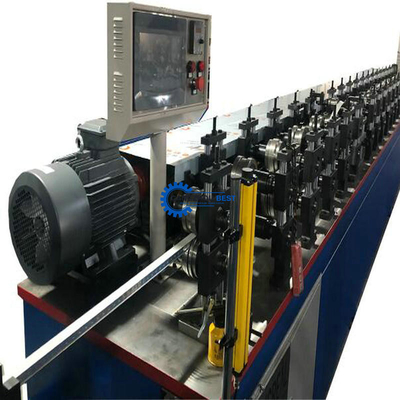

Forming device |
1)Shaft material:high grade No.45 steel after treatment 2) Out diameter: 50 mm 3)Roller material: Cr12 polished and coated with chrome HRC55-60° 4)Forming speed:30m/min 5)Main motor power:5.5 kw 6)Roller station:10-12stations 7)Voltage:380v,50Hz,3 phase 8)Main frame structure: memorial arch structure 9)Control device:automatic cumputer control ,by PLC,operate easily 10)Cutting device: hydraulic tracking cutting(you can also request to add a servomotor,the production speed can be reached 40-60m/min) 11)Transmission: gear drive |
|
Hydraulic cutter |
1). material of blade: Cr12 mould steel with quenched treatment 55-60°C 2). cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort, no wasting , high safe factor.(main motor stop cutting) |
|
Control system |
Type: PLC Frequency Control System with touch screen Length Error: ±2mm (about the electrical apparatus element ,customers also can specify the brand) |
|
Outpur table |
It is simple and used to load finished product. Length:6m |
We Promise :
1).Take the EUROPEAN Quality Standard;
2). Choose the Best Material and Components.
3). Over 30-Year-Experienced Experts and Top International Sales to Care Your Needs.
4). Offer The Highest Quality but The Best Price in Prevailing Market.
5). Customize for You.
Terms of Payment
30% to be paid by TT as Down Payment,70% to be paid by TT before delivery.
Time of Shipment
50 days after down payment
Guarantee of Quality
The Seller shall guarantee the goods with materials and workmanship in accordance with the required on the drawings, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in drawings and guarantee a good smooth operation for 12 months after date of shipment (except consumables). This guarantee excludes the parts that require the normal plant maintenance. The guarantee is strictly limited to the repairing and the replacing of the mechanical parts supplied by us found to be defective provided that failure has occurred during the ordinary use of the equipment and it is not accepted and claim due to damage to people, property or loss of production.
