Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel

Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel
Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel

Large Image :  Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY38x26
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel

Description
Product Name: Light Gauge Drywall Profile Frame Roll Former Machine For Omega Channel Color: Blue Or According To Your Requirement
Control System: PLC Cutting Type: Flying Saw
Warranty: 2 Years Lifetime: 10years
Shaft Material: High Grade No.45 Steel After Treatment Thickness: 0.7-1.2mm
Power: 5.5kw Key Selling Points: Easy To Operate
High Light:

omega channel profile roll forming machine

,

flying saw profile roll forming machine

,

flying saw drywall roll forming machine

Light Gauge Drywall Profile Frame Roll Former Machine For Omega Channel



Furring channel omega profile light steel keel forming machine is mainly used to produce various types of metal light steel keel required for factory, stadiums, bus stations, exihibitiom pavilions and other urban buildings. This product has strong durability, is not easy to be damaged, and the speed of rolling the steel plate is fast, which greatly saves time and labor costs. The finished product after rolling is smooth without burrs and not easily deformed.



Parameter

furring channel omega profile light steel keel forming machine
Dimensions
5*1.5*1.6m
Weight
About 3200kgs
Roller
14 Rows
Material of the Cutting Blade
Cr12, Quenched treatment 58℃-60℃
Rolling Materials
45# forging steel with chromium plate
Diameter of the Roller
Φ 50 mm solid
Main Structure of the Machine
Square steel frame
Side Panel of Machine
25 mm
Chain
1 Inch
Motor Power
7.5Kw
Pump Station Motor
4Kw Lichao Brand
Productivity
30-45m/min
Thickness of the Plate
0.5-1.2mm
Length Tolerance
±2mm
Touch Screen
Delta
Voltage
380V 50Hz 3 phases or as customer's need
Drive Mode
Gear driver
Suitable to Process
Galvanized steel strip or black steel strip



Our first focus is quality improvement and customer's satisfaction,we have exported the products to Africa, South America, Russia, India, Pakistan,Southeast Asia etc. the custormers of domestic and foreign evaluate highly for our stable quality and cost effective.



PACKING & DELIVERY

A. The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.

B. Rollers and shafts are covered with anti-rust oil.

C. PLC control system and motor pump are packed with waterproof paper and plastic film.

D. Spare parts in a carton box.

E. Manual decoiler was nude packing.

F. The output-table put into a carton box.

G. If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.

H. Fit for ocean shipping.



FAQ:
1. Are you manufacturer or trader?
We are real manufacturer and we can produce the commodities according to your request.
2. I am interested in the products but I do not have the experience.
Tell us your budget and target market and then professional advice will be provided.
3. Why we are your best choice?
Since we are the direct manufacturers, different to other brokers because of a reduction of a sales aspect. So we can sell our merchandise at the lowest price. Besides, high quality, timely delivery, considerate services will also be provided.
4. Can I get some samples?
Of course, samples will be provided for free but you have to pay the freight charge and we will pay it back to you when the first order is placed.
5. What is your MOQ?
No MOQ limit, from 1 piece to 100 containers upon your demand.
6. What is the payment terms?
1) 30% TT, the balance 70% based on the copy of B/L
2) 100% L/C at sight

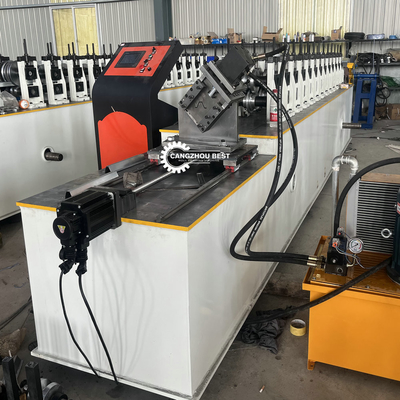

Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel 0

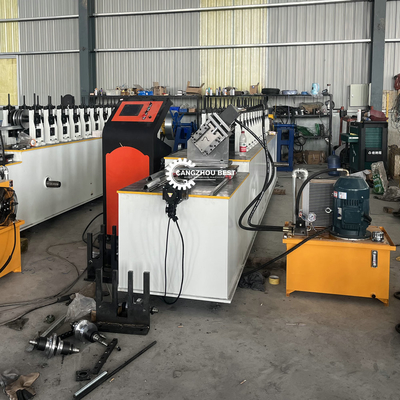

Flying Saw Profile Roll Forming Machine Light Gauge Drywall Frame For Omega Channel 1
