Double Layer PPGI Roofing Sheet Manufacturing Machine Color Steel Ibr Trapzodial Corrugated

          Double Layer Color Steel IBR/Trapzodial/Corrugated Roof Sheet Roll Forming Machine

1. Main structure

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency

Machine Component

Work Flow

Decoiler------feeding------roll forming------cut to length-----output table

Decoiler

(1) Max. Width: 1000 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1000 mm
(4) Max. Loading Capacity: 5000 kgs

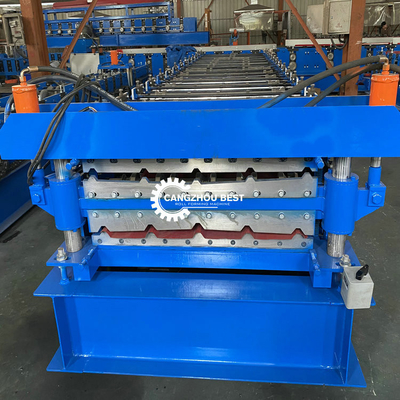

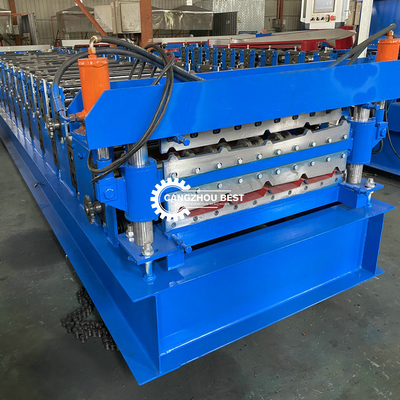

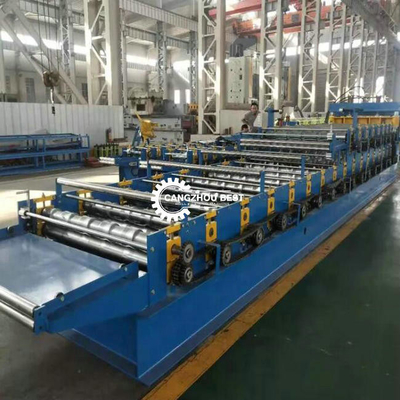

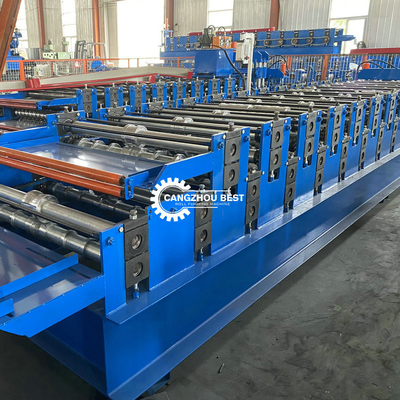

Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

Roller Stations:up16groups  down20groups

Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 5.5kw

Diameter of shaft: 70mm

Shaft Material: 45# steel

Driven type: 1.0＂Chain

Cutting Device

Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW

PLC Control Box

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
