Product Details:
|

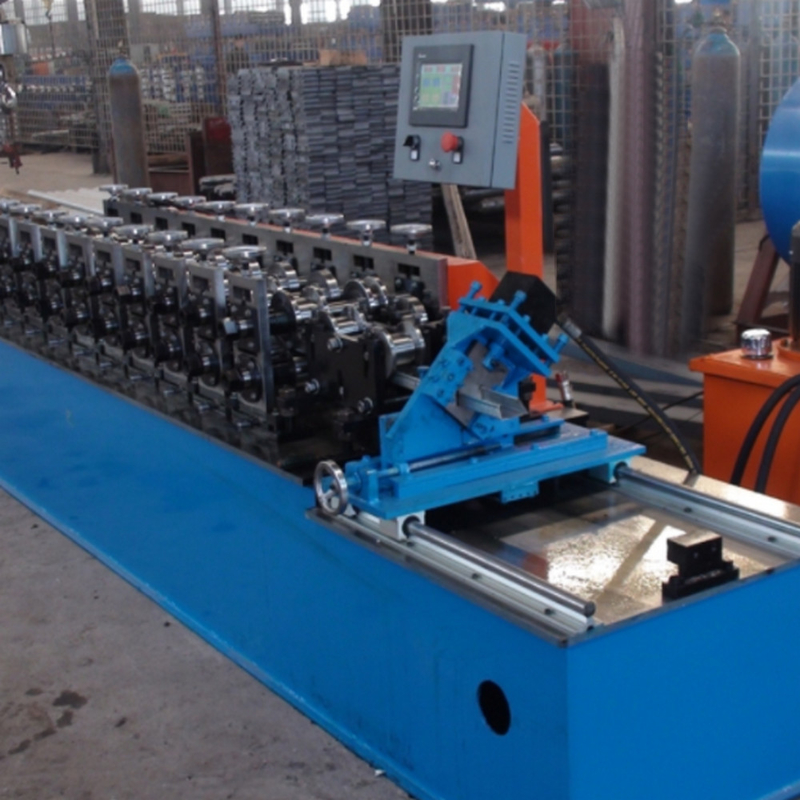

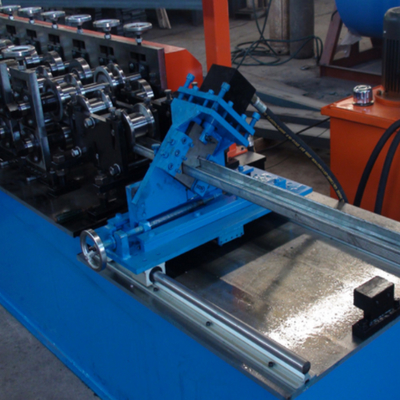

| Product Name: | Steel CD UD Profile Metal Section Stud And Track Roll Forming Machine For Drywall | Control System: | PLC |
|---|---|---|---|
| Cutting Type: | Hydraulic | Shaft Material: | Shaft Material |
| Usage: | Ceiling | Material: | GI,AL |
| Production Capacity: | 25-30M/MIN | Key Selling Points: | Long Service Life |
| Structure: | 350H Steel | Roller Material: | Cr12 |
| High Light: | 30m/min drywall roll forming machine,ud drywall roll forming machine,drywall c stud roll forming machine |
||
The Fully automatic high speed Suspended Ceiling T grid roll forming machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
2). Working Flow of C keel roll former stud and track interchangeable metal steel purline roll forming machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
Advantages of the machine:
1) The design of the machine is convenient to adjust, for it owns reasonable structure, compact shape, high precision and high efficiency.
2) The manufacturing process of the complete machine is in strict accordance with the mechanical standards, tracking and controlling the manufacture of each part.
3) Professional team for technical research and development, providing users with automatic plate processing equipment of high quality and efficiency.
4) The entire line is controlled with PLC, with touch screen of display and operation and high automation.
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 12 |
| Shaft diameter | 55 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Cr 12 | |
| Machine size | About 4.8×0.8×1 m | |
| Machine weight | About 1.8 ton | |
| Machine color | As customer' request | |
| Working speed | 30-50 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4) Q: What can you do if the machine broken?
A: Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q: Can you be responsible for transport?
A: Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q: Can you supply the raw materials?
A: Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
5. Application:
