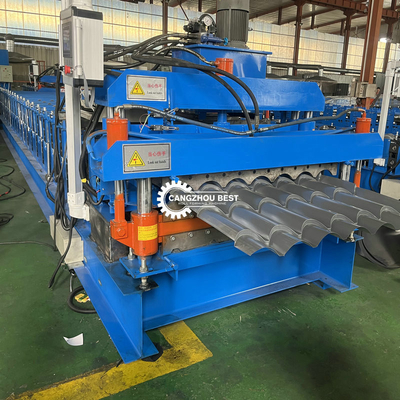

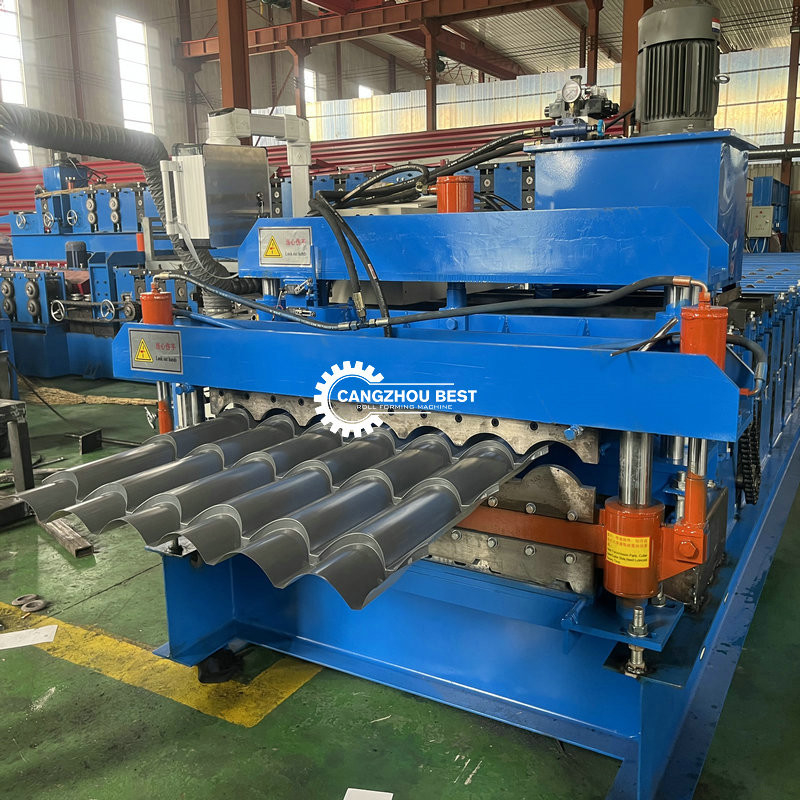

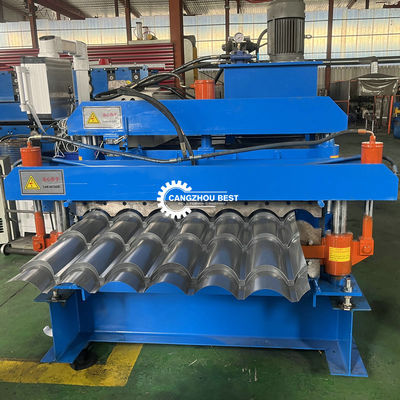

Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min

Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min
Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min
Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min

Large Image :  Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min

Product Details:
Place of Origin: HEBEI CHAIN
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: CB800
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD12500
Packaging Details: naked
Delivery Time: 35days
Supply Ability: 15sets/month

Double Layer Bamboo Roof Tile Roll Forming Machine 8m/Min

Description
Name: Double Layer Bamboo Roof Tile&T101 IBR ROOF Roll Forming Machine Control System: PLC
Machine Speed: 8-12m/min Shaft Diameter: 70mm
Shaft Material: 45#steel Material Thickness: 0.3-0.8mm
High Light:

8m/min roof tile roll forming machine

,

bamboo roof tile roll forming machine

,

bamboo tile double layer forming machine

Double Layer Bamboo Roof Tile&T101 IBR ROOF Roll Forming Machine



Working flow:



Decoiler----feeding-----roll forming-----pressing&cutting------output table



Specifications:



Part details

Item Name

Specification

Material

Raw material

Galvanized steel or PPGI



Thickness

0.3-0.8 mm

Machine

Roller station

Depend on customer' drawing



Shaft diameter

70 mm



Shaft material

45# steel with 0.05mm chrome



Roller material hardness 30-40 HRC

45# steel with 0.05mm chrome



Machine size

About 6×1.5×1.3 m



Machine weight

About 7.5 ton



Machine color

As customer' request



Working speed

8-20 m/min

Cutter

Hardness

50-65 HRC



Cutting tolerance

± 1 mm



Material

Cr 12



Operate

Hydraulic cutting

Power

Driving way

Chain 1 inch



Main power

7.5 kw



Pump power

4 kw



Voltage

380v/50HZ,3P or customize

as customer' request

Control system

PLC brand

Delta made in Twaiwan



Screen

Touchable screen



Language

Chinese and English or add language as customer need

Decoiler

Operation

Manual



Weight capicatity

5 ton



Price

Free as gift

Receiving table

Operation

Manual



Length

3 m



Price

as finally drawing



Packing Method

Main machine is packaged with plastic film



Transportation

All machines need one 40 feet container to hold



Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.



Delivery Time

Within 35 days after receiving deposit.



Warranty

One years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 1 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 1 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
