Galvanized Roofing Sheet Profiling Machine Gauge 28-30

Galvanized Roofing Sheet Profiling Machine Gauge 28-30
Galvanized Roofing Sheet Profiling Machine Gauge 28-30 Galvanized Roofing Sheet Profiling Machine Gauge 28-30

Large Image :  Galvanized Roofing Sheet Profiling Machine Gauge 28-30

Product Details:
Place of Origin: China
Brand Name: CHBEST
Certification: CE,BV,SGS
Model Number: YX-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD8500-25500/set
Packaging Details: 20GP/40GP container
Delivery Time: 5-60days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month

Galvanized Roofing Sheet Profiling Machine Gauge 28-30

Description
Name: Maxcover Galvanized Roofing Sheet Roll Forming Machine For Gauge 28-30 Voltage: 380V, 380V 50Hz 3phases
Control System: Taiwan Delta Roller Material: 45#steel
Shaft Diameter: 70mm Production Capacity: About 15m/min
Warranty: 2 Years Sheet Thickness: 0.3-0.8mm
Advantage: Long Service Life Cutting Blade: Cr112
High Light:

galvanized roofing sheet profiling machine

,

gauge 28 roofing sheet profiling machine

,

gauge 30 roof sheet forming machine

Maxcover Galvanized Roofing Sheet Roll Forming Machine For Gauge 28-30



1. Description

Roofing sheet making cold press tile roll steel profile machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The roofing tiles sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!



2. Parameters:

Machine Specifications

No.
roofing sheet making cold press tile roll steel profile machine
1
Suitable to process
Color alu-zinc steel coil
2
Roller
18 Rows
3
Dimensions
9.0*1.75*1.7m
4
Motor Power
5.5Kw
5
Pump Station Motor
4Kw.Lichao Brand
6
Thickness of the plate
0.3-0.8mm
7
Productivity
10-15m/min
8
Material of the cutting blade
Cr12,Quenched treatment 58℃-60℃
9
Diameter of the roller
Φ70mm
10
Weight
About 5200kgs
11
Main structure of the machine
350H beams
12
Processing precision
Within 1.0mm
13
Side panel of machine
16mm
14
Chain Wheel and Cycle Chain
1 Inch
15
Voltage
380V 50Hz 3phases or as customer's need
16
Control system
PLC control (Delta)
17
Frequency system
Delta
18
Drive mode
Motor driver
19
Touch screen
Delta
20
Rolling materials
45# forging steel with chromium plate
21
Length Tolerance
±2mm



01. Mainframe: GB H steel, hard texture.

02. Operator station: 360-degree rotation display.
03. Cutter: The main material is Cr12, which has high hardness.
04. Retaining pad: Prevent the nut from loosening.
05. Easy hanging: Prevent the machine from scratching during the movement.
06. Wheel: generally 45# steel, good hardness.
07. Travel switch: Limit the position or travel of the machine.
08. Rear hand knife: cut in advance to prevent waste.
09. Resin wheel: used to record the length of discharge and record data is more accurate.
10. Electric control cabinet: The main motor and PLC are famous brands.



3. Machine production process

Drawing confirmation:
After confirming the final profile with the customer, the team of 12 engineers worked out detail workable
parts CAD drawings; After 5 recheck, the production manager arrangement the material for all machine parts.
Start production:
Our company owns 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start to manufacture.
Product Inspection:
Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine.
Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing. Our Inspect team test all roller surface, confirm all part surface paint above 5um.
Mainframe and medium plate: Our Inspect team tests the mainframe and plate cutting precise.
Assembling machine:
5 workers assemble and welding one machine body frame by three days.
Machine painting:
Putty ensure weld parts surface smoothly, and environment-friendly paint ensures protect worker body and environment.
Machine Manual use test
Confirm the output sheet tolerance within 2mm.
Cutter production:
According to the finally manufacture sheet, confirm the blade precise profile, Cr12 MOV steel cutting knife finished by laser cutting.
Storage:
To protect the machine surface clear and without damage, we paint again and package by the film.



4. Our service:

Terms of payment 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery 30 days after receipt of advance payment.
Service

we sent technician to your country to fix the machine.

The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.

Warranty

18 months limited warranty

During warranty: parts are free but buyer pay the shipping fee.



5. Summary

1). To design and make the best roll forming machine, we took EUROPEAN quality standard;

2). Choose the best material and components, and adopting our 25+ years experience;

3). We achieves that the machine capacity is double of the competitors;

4). The machine working speed can be 60m/min;

5). Very easy to install and operate the roll forming machine.



6. Machine photos:

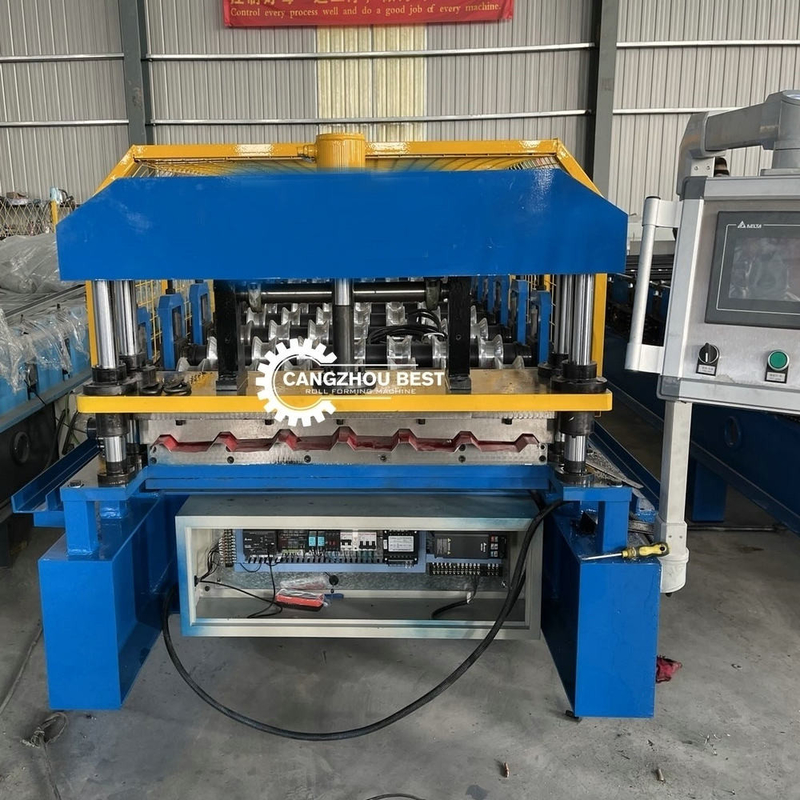

Galvanized Roofing Sheet Profiling Machine Gauge 28-30 0

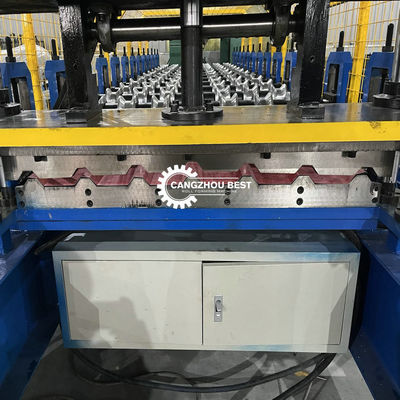

Galvanized Roofing Sheet Profiling Machine Gauge 28-30 1
