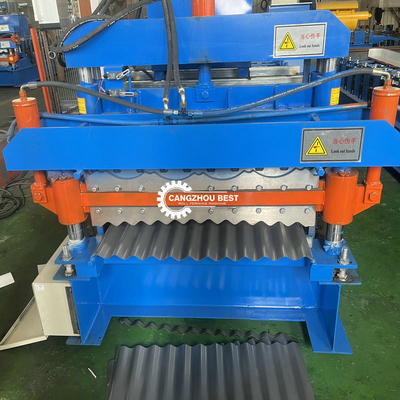

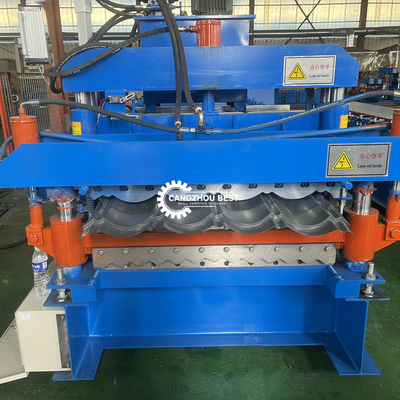

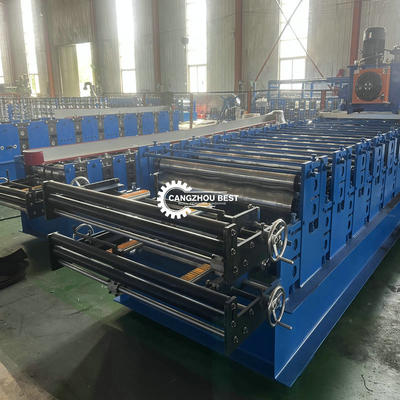

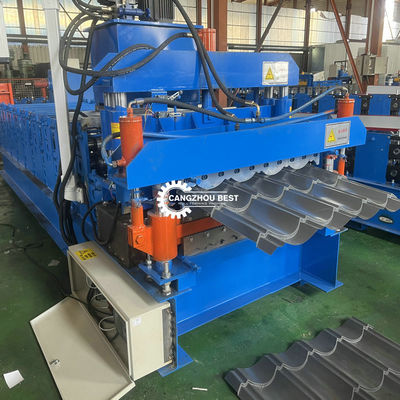

Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet

Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet
Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet
Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet

Large Image :  Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: YX836
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: standard
Delivery Time: 35days
Supply Ability: 14sets/month

Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet

Description
Name: Steel Double Layer Jami Tile&Corrugated Roof Sheet Roll Forming Machine Machine Color: As Request
Machine Weight: 5tons Machine Length: 8.5m
Machine Width: 1.5m Machine Height: 1.5m
Warranty: 2 Years
High Light:

double layer roll forming machine plc

,

914mm double layer roll forming machine

,

plc controlled double layer forming machine

Steel Double Layer Jami Tile&Corrugated Roof Sheet Roll Forming Machine ​



Working flow



Uncoiling→Sheet Guiding→Roll Forming→Pressing→Measuring Length &Shearing→Sheet to Support Table.



Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet 0





Name

Double Layer Roof Sheet Roll Forming Machine

Suitable Material

Colored or galvanized steel coil, HRB60 or equivalent

Thickness Range

0.3-0.8 mm

Coil Width Range

914, 1000, 1220 or 1250 mm.

According to your actual drawing.

Electric Power

380V, 50 Hz, 3 phase

or according to your need.

Dimension

About 7.2*1.3*1.1m(L*W*H), as per the drawing

Cutting

Automatically stop and cutting when it comes to the set length.

Length of the Sheet

You can set the length according to your need.

It is controlled by PLC

length accuracy: ±1mm.







Machine Parts

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment, coated



Main Features

Name:PLC
Brand: Mitsubishi
Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.



Machine Parts

Name: Pump
Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#



Main Features

Name: Bliwing Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.



Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.

Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet 1

Steel PLC 914mm Double Layer Roll Forming Machine Jami Tile Corrugated Roof Sheet 2
