Product Details:
|
Name: | Color Steel YX490 Self Lock Roofing Sheet /Roof Panel Cold Roll Forming Machine | Color: | As Your Require |
---|---|---|---|
Material: | PPGI GI | Shaft: | 70mm |
Voltage: | 380V/50HZ/3PHASE | Warranty: | 2 Year |
High Light: | 50hz roofing sheet roll forming machine,selflock roofing sheet roll forming machine,double layer roofing sheet roll forming machine |

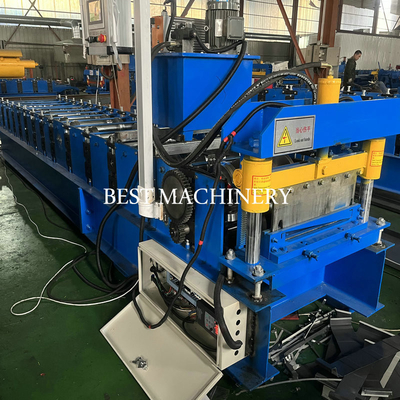

Color Steel YX490 Self Lock Roofing Sheet /Roof Panel Cold Roll Forming Machine
1. Main structure
a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency
Machine Component
Decoiler |
2set |
Roll Forming |
1set |
Cutting Device |
1set |
Hydraulic Pump |
1set |
PLC Control Box |
1set |
Output Table |
1set |
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Decoiler
(1) Max. Width: 650 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1000 mm
(4) Max. Loading Capacity: 5000 kgs

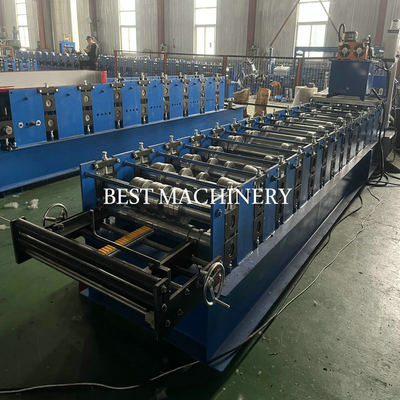

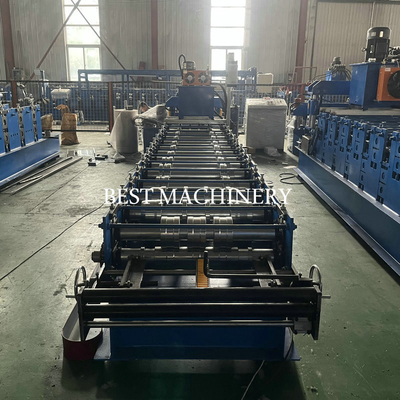

Roll Forming Machine
Material Thickness: 0.3-0.8mm PPGI and GI
Roller Stations:16groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Frame panel thickness: 20mm
Bottom frame: 36# H-section steel
Motor Power: 5.5kw
Diameter of shaft: 70mm
Shaft Material: 45# steel
Driven type: 1.0"Chain

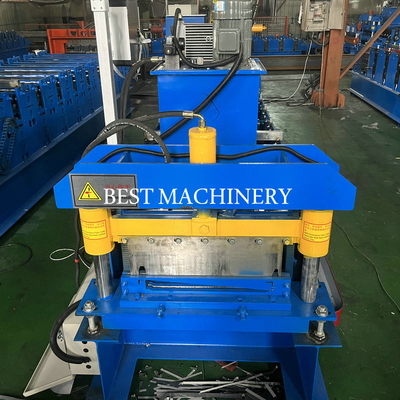

Cutting Device
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW
PLC Control Box
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3)Length Error: ±2mm
(4)Language: English and Chinese
(5)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
Hydraulic Pump
Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand
