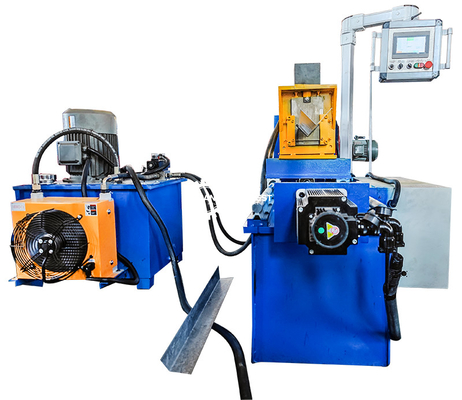

450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making

450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making
450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making 450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making 450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making 450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making

Large Image :  450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY50x30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 30-40 days
Supply Ability: 20 sets/month

450mm PLC Light Steel Roll Forming Machine L Shape Angle Corner Bead Making

Description
Product Name: Light Steel L Shape Angle Corner Bead Making Roll Forming Machine Color: Blue Or According To Your Requirement
Control System: PLC Cutting Type: Non-stop Cutting
Warranty: 2 Years Lifetime: 10years
High Light:

plc light steel roll forming machine

,

450mm light steel roll forming machine

,

l shape light gauge steel machine

Light Steel L Shape Angle Corner Bead Making Roll Forming Machine

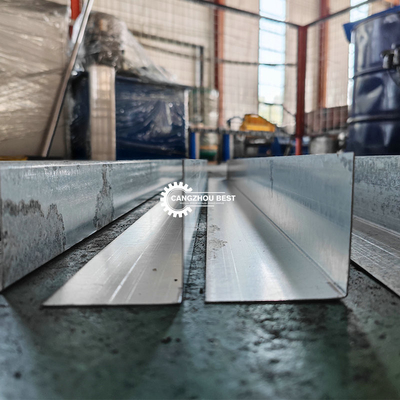

Description: Angle bead roll forming machine is used to produce the angle bead which is used in plasterwork for outside (external)corners of concrete columns of wall

Advantages:1. High speed can reach to 15-20m/min.

2. PLC control, easy operation

Usage:Angle beads can be supplied in expanded metal or perforated metal, mainly used for plastering of walls. Finishes can be hot dipped zinc coating or electro galvanizing.



Working flow



Uncoiling—Feeding—Roll forming—Cut to length—Cutting—Output table



Component



Item
Quantity
Passive decoiler
1 set
Guiding
1 set
Roll forming
1 set
Hydraulic cutting
1 set
Out table
1 set
Hydraulic station
1 set
PLC controller
1 set
Spare parts
1 box



Technical Detail



Name:Manual decoiler



Manual decoiler Coils inner diameter 450-550(mm) Coils outside diameter 1500(mm) Max can put max 700kgs



High-level automatic control PLC system



Brand:Delta PLC

system: Chinese/ English/Russian/ Spanish

PLC:The PLC control system introduces computer technology, automatic control and other technologies based on traditional controllers.Name:

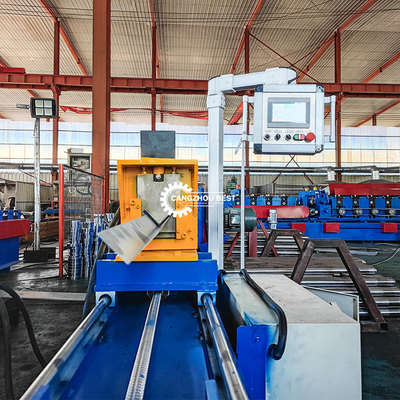

Cutting head

Blade material: Cr12MOV, forged by heat treatment.

The cutting head uses an High quality electro-hydraulic cutting system and automatic positioning function
Because the cutting method is stable, metal plate cross section is neat.

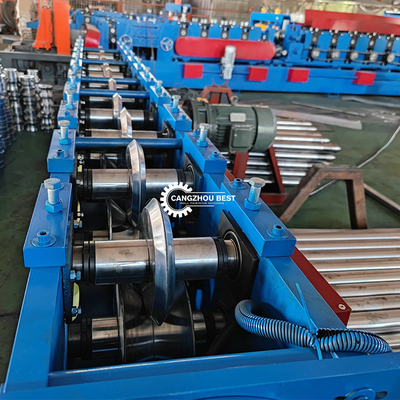

Name: Main rollers

1. Motor: 5.5kw

2. Working speed: 20m/min
3. Forming stations: 15 stations
4. Structure: arch structure
5. Driving: by gearb

Hydraulic station

1. Hydraulic station provides power for both hydraulic punching and cutting.

2. It's controlled by gear wheel oil pump. The tank should be filled with 46# hydraulic oil.
3. Hydraulic motor power: 5.5kw
4. Components: the system includes a set of hydraulic tank, a set of hydraulic oil pump, hydraulic pipes and electromagnetism
valves.

Installation and Training:

① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.



Warranty

1. Warrenty period: Except the wearing parts, 18 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free,and we will provide the technical support for the whole life.

2. Breakage problem: If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.

3.We will provide you technical support for whole machine life.
