Product Details:
|
| Name: | Coil Width 1000mm Corrugated&IBR Double Layer Steel Profile Roll Forming Machine | Voltage: | 380V 50Hz 3phases |
|---|---|---|---|
| Condition: | New | Weight: | Around 10.0 Tons (depend On Final Design) |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Dimension(l*w*h): | 7600mm*1300mm*1450mm |
| High Light: | 1000mm roofing sheet roll forming machine,profile roofing sheet roll forming machine,ibr corrugated sheet roll forming machine |
||

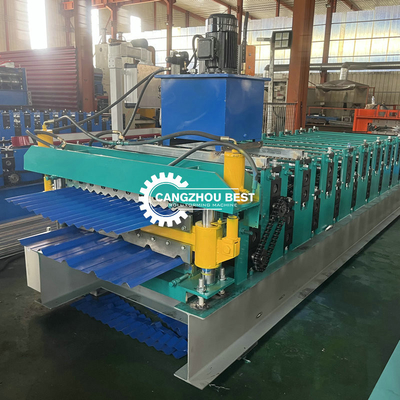

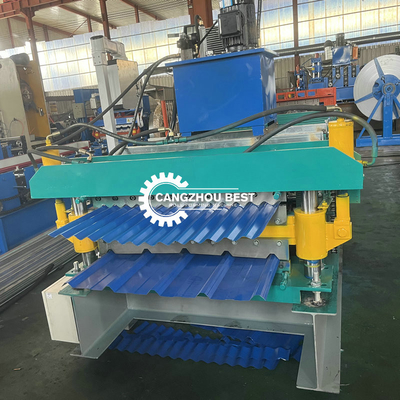

Coil Width 1000mm Corrugated&IBR Double Layer Steel Profile Roll Forming Machine
Draft Specifications:
|
No. |
Spc. |
|
|
1 |
suitable material |
Color Steel plate, galvanized sheet |
|
2 |
Feeding width |
1000mm |
|
3 |
Rows of rollers |
11 rows |
|
4 |
Main power |
3.0kw |
|
5 |
Hydraulic power |
3.0kw |
|
6 |
Main frame |
250 H steel |
|
7 |
Thickness of raw material |
0.3-0.8mm |
|
8 |
Transportation system |
Chain transportation |
|
9 |
Thickness of chain |
1.0inches |
|
10 |
Productivity |
8-10m/min |
|
11 |
Out diameter of shaft |
70mm (solid shaft) |
|
12 |
Material of shaft |
Material of shaft |
|
13 |
Roller material |
45# steel polished and coated with chrome HRC55-60° |
|
14 |
Shear mould |
Gr12 |
|
15 |
Voltage |
380V 50Hz 3phases |
|
16 |
Control system |
PLC Frequency Control System with touch screen |
|
17 |
Machine size |
5200mm*1600*1200mm
|
1.Decoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system

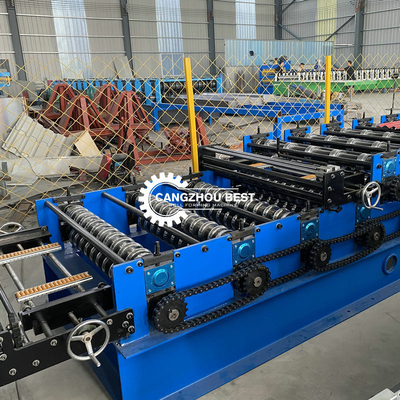

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations:up16groups
Down22groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 35# H-section steel
(8) Motor Power: 5.5kw
(9)Driven type: 1.0＂Chain
(10)Speed:8-12m/min
(11)Pre slide cutteer

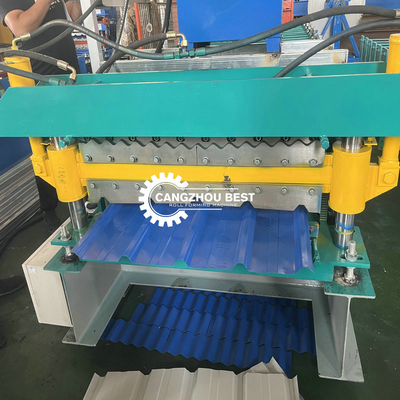

3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
(4)Cooling fan
6. PRODUCTION SUPPORT TABLE
(1) No power type
(2)Length: 2m
