Product Details:
|
| Product Name: | Single Layer Steel Profile Corrugated Roof Sheet Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Decoiler Capacity: | 5t | Cutting Type: | Hydraulic |
| Processing Material: | PPGI And GI | Material Thickness: | 0.25-0.8mm |
| High Light: | 1layer roofing sheet roll forming machine,0.25mm roofing sheet roll forming machine,single layer corrugated roll forming machine |
||

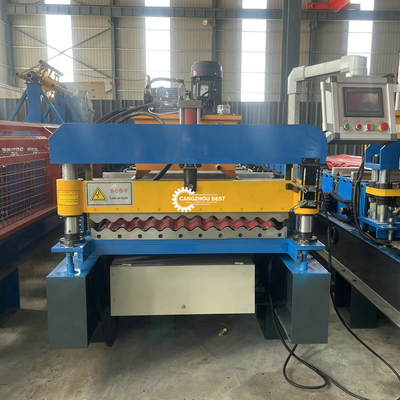

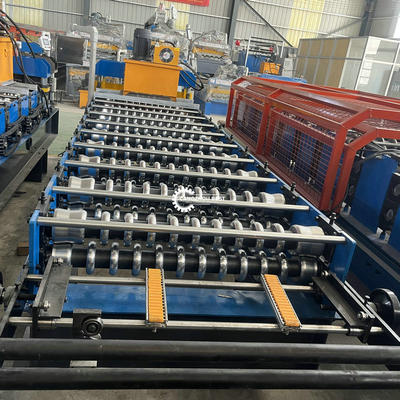

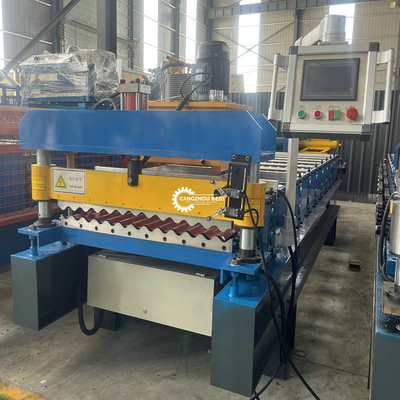

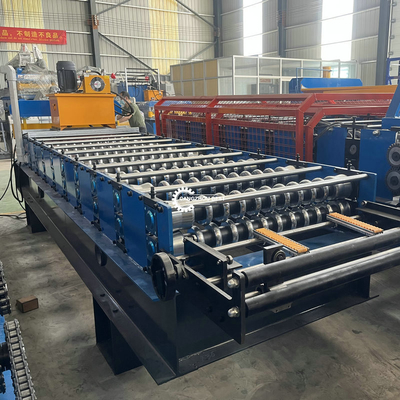

Single Layer Steel Profile Corrugated Roof Sheet Roll Forming Machine
1.Different roof/wall panel cold roll former can produce different shapes of steel roof wall sheets
According to the client's profile drawings and requirements.
We can also supply the customized machines
2. Applications of Roof/Wall Panel Roll forming Machine:
The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition
centers etc
The advantage of IBR sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Hydraulic Cutting Device | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
Technical Parameters:
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1000mm | |
| Thickness | 0.2-0.8mm | |
| Yield strength | Q235 | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 11 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 20-25m/min | |
| Side plate thickness | 16 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5800mm*1300mm*1500mm | |
| Weight(About) | 4.5 tons | |
| Length measurement | Encoder | |
| Control mode | PLC | |
| Operating mode | Button +Touch screen | |
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 40 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 35 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
