G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile

G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile
G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile

Large Image :  G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile

Product Details:
Place of Origin: China.Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-850
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 35days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

G550mpa GI Wave Corrugated Panel Roll Forming Machine Color Steel Profile

Description
Name: Color Steel Profile Wave Corrugated Roofing Sheet Roll Forming Machine Material: PPGI/GI
Color: As Your Require Shaft Material: 45# Steel
Conreol System: PLC Warranty: 2 Year
High Light:

gi corrugated panel roll forming machine

,

wave corrugated panel roll forming machine

,

color steel profile corrugated roll former

Color Steel Profile Wave Corrugated Roofing Sheet Roll Forming Machine



Main Parameter



Name Model/Name Quantity Technical Description
1. Decoiler system Arm type automatic decoiler (With ultrasonice control) 1set Arm-type, hydraulic expanding, electrical motor actively release the sheet, with coil cart and pressing arm.
2. Main forming system Pre-shearing device 1set

1.Roller material:No.45 steel with surface hard chrome painted.

2. Roller shaft material: No.45

3. Roller inner supporting structure type: guide column

4.Cycloidal pin gear speed reducer motor driving, the back/forward rollers driven by chain, part of upper/lower rollers driven by gear

5.Cutting blade material Cr12 quenched treatment

6.Punching die material adopts No.45 steel with nitride treatment.

Feeding guide device 1set
Film covering device 1set
Roll forming system 1set
Pressing system 2set
Post-cutting device 1set
Complete safety cover 1set
3. Output system Support table 2set For supporting the finished plate
4. Hydraulic system 1set Separated hydraulic station for the main machine and decoiler.
5. Electric control system 1set

1. PLC Control, encoder automatic cutting in length

2. Operation stage: Touch screen+ button

3. AC frequency for adjusting the speed



Specifications:

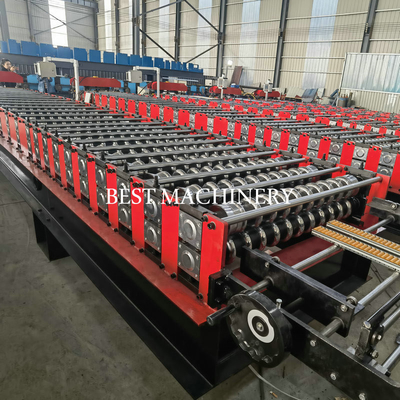

Rollers

High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.

PLC Control System.

Usually we prodvide the Delta PLC control system, but

we can make that according to your need. You need which brand, then we send to you which brand.

But the long life of that will bring you great benefit .

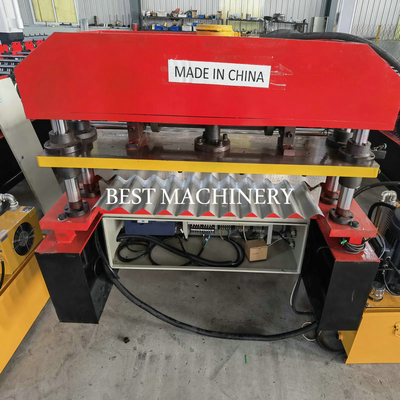

The Cutter.

Our company adopts this advanced technology----we call that "four poles structure hydraulic cutter", which really improve the quality of the whole machine, it cuts accurately, stable, and of course the profile edge is very nice. Recently more and more factories learn from us. But remember that, "Audi will not get the real technology from the Benz even though they said they will make that."



Hydraulic System:

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.



Output Table

No power type
Length: 2m



Work Flow

Decoiler------feeding------roll forming------cut to length-----output table



Our Service



Pre-Sales-Service

If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

After-Sales-Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.





Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.

3. electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.
