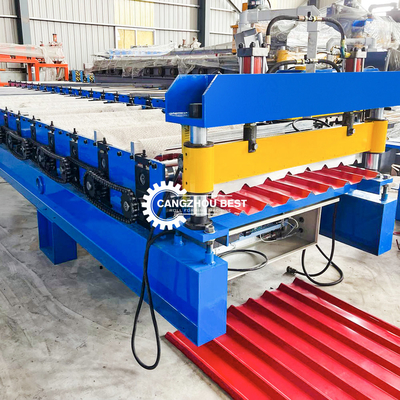

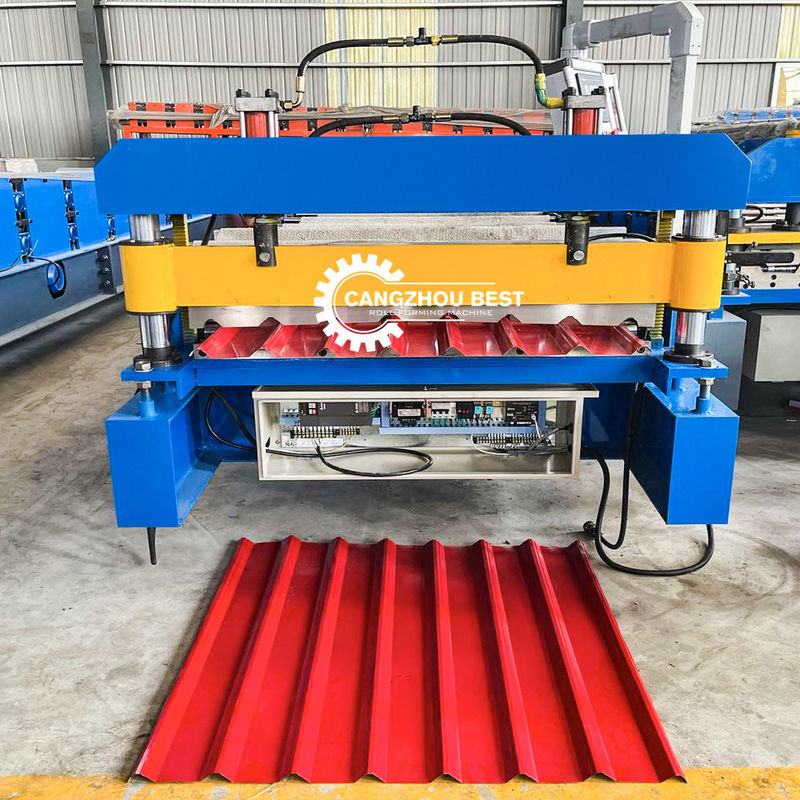

PPGI R101 Metal Roofing Sheet Roll Forming Machine
The R101 roofing sheet roll forming machine is specifically designed for the Mexico market, producing high-quality roofing tiles that are increasingly popular in modern construction. These roofing products are widely used in warehouses, gyms, theaters, supermarkets, residential houses, and various other structures.
Roofing sheet advantages include lightweight construction, high strength, excellent load-bearing capacity, superior resistance to bending and compression, simple installation, and multiple color options.
Technical Specifications
| Parameter |
Specification |
| Main Motor Power |
5.5KW |
| Rolling Speed |
10-12 m/min |
| Roller Material |
45# Steel, Chromed Treatment |
| Shaft Material |
45# Steel, Quenched Treatment, Diameter 80mm, Solid |
| Hydraulic Power |
5.5KW |
| Transmission |
Chain Drive |
| Raw Material Compatibility |
PPGI, PPGL, GI, GL |
| Control System |
PLC |
| Cutting Blade Material |
Cr12 |
| Hydraulic Oil |
46# Oil |
| Length Tolerance |
±1.0 mm |
Machine Components
| No. |
Component |
Unit |
Quantity |
| 1 |
Manual Decoiler |
set |
1 |
| 2 |
Molding Core |
set |
1 |
| 3 |
PLC Control Box |
set |
1 |
| 4 |
Hydraulic Pump |
set |
1 |
| 5 |
Exit Rack |
set |
1 |
| 6 |
Cutting System |
set |
1 |
Warranty & Service
12-Month Guarantee: We provide replacement parts for any machine component failures. For damage resulting from operator error, the buyer is responsible for shipping costs.
After-Sales Service: We dispatch technicians to your location for machine installation and maintenance. The buyer covers all associated costs including visa fees, roundtrip airfare, accommodation, and daily technician salary.
Packaging & Support
- Nude packaging with waterproof cloth and stow-wood protection
- 18-month free maintenance period
- Free installation and debugging services within China
- Lifetime maintenance for all machine components
- Includes comprehensive CD and specification documentation (Chinese and English)
Competitive Advantages
- Dual side hand wheels for precise feeding width adjustment
- Four stainless steel rollers ensure smooth material entry and prevent surface scratches
- Three rows of orange plastic rollers facilitate smooth steel coil feeding
- Enhanced PLC control station with user-friendly operation
- Premium components sourced from certified Chinese brands with CE and ISO certifications
Additional Product Range
Our manufacturing capabilities extend to Villa Keel Roll Forming Machines, Stud and Track Keel Roll Forming Machines, Omega Profiles Keel Roll Forming Machines, Profiles Bending Roll Forming Machines, Ceiling Keel Roll Forming Machines, Double Layer Roofing Tile Roll Forming Machines, Metal Roofing Roll Forming Machines, Floor Deck Roll Forming Machines, C-Purlin Forming Machines, Light Steel Forming Machines, Ridge Tile Forming Machines, Bending Machines, and Container House systems.
Custom Manufacturing: We can produce machines according to your specific requirements and specifications.
