Product Details:
|
| Name: | Customzied Steel Profile Color Roofing Sheet Making Roll Forming Machine | Material: | PPGI/GI |
|---|---|---|---|
| Color: | As Your Require | Shaft Material: | 45# Steel |
| Conreol System: | PLC | Warranty: | 2 Year |
| High Light: | customized color steel roll forming machine,ppgi color steel roll forming machine,ppgi roofing sheet roll forming machine |
||
Customzied Steel Profile Color Roofing Sheet Making Roll Forming Machine
Work Flow
Decoiler------feeding------roll forming------cut to length-----output table
Machine Specifiations:
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1000mm | |
| Thickness | 0.3-0.8mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers |
Up layer : 13 stations Down layer : 14 stations |
|
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70mm | |
| Material of blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed |
Up layer: 3-4 m/min Down layer: 15-20 m/min |
|
| Side plate thickness | 16 mm | |
| Chain size | 1 inch | |
| Total power | 5.5 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 7000mm*1500mm*1600mm | |
| Weight(About) | 5 tons | |
| Electronic control system | PLC (Delta) Touch Screen | |
Decoiler
Max. Width: 1000mm
Inner Diameter: Φ450 – Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000kgs
Type:Manual Or Hydraulic

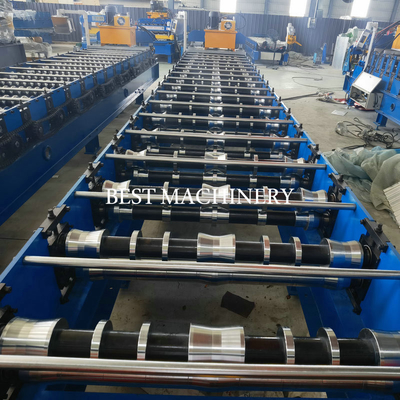

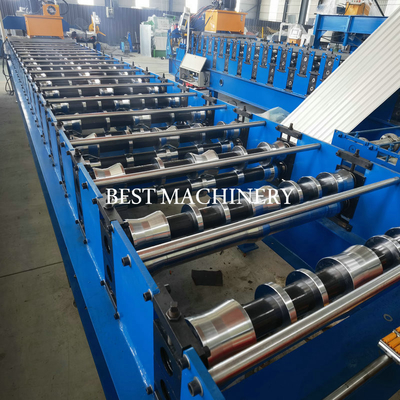

Roll Forming Machine
1. Dimensions: length 7500mm × width 1400mm × height 1300mm
2. Maximum speed of molding machine: 15 meters per minute
3. Forming color steel plate thickness: 0.2-0.8mm
4. Roller shaft diameter: 70mm
5. CNC computer operation panel
6. The unit includes: forming machine, hydraulic station, discharging rack, forming shears and control box.
7. Machine weight: about 3.0 tons,
8. Transmission mode: 1 inch chain drive
9. Forming row number: 4 peak tile type 13 row 5 peak tile type 11 row
10. Power host: 3kw
11. Pump station motor: 3kw
12. Distribution: The whole machine is controlled by industrial computer PLC;
13. Equipment chassis: 300H steel; vertical plate thickness is 14mm
14. Maximum error: Since the device is fully computer controlled, the maximum length error is ±1mm;

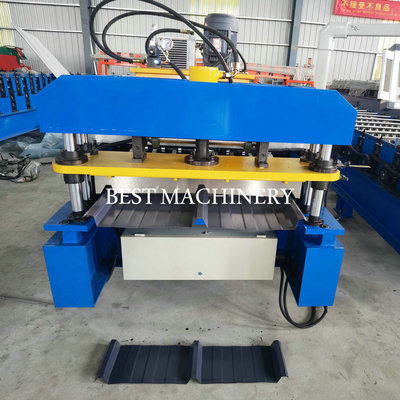

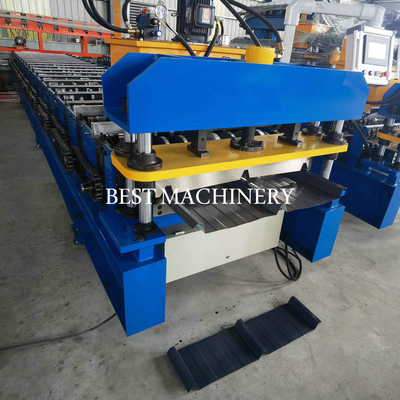

Cutter Device:
Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Power supply: hydraulic station;
Frame: welding steel frame;
Stroke switch: non-contact photoelectric switch;
Cutting after forming: cut the sheet after roll forming to required length;
Length measuring: automatic length measuring.
Power:3lw
Hydraulic System:
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.
Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.
Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.
Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.
Output Table
No power type
Length: 2m
