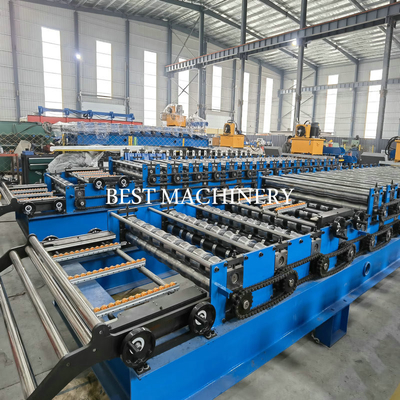

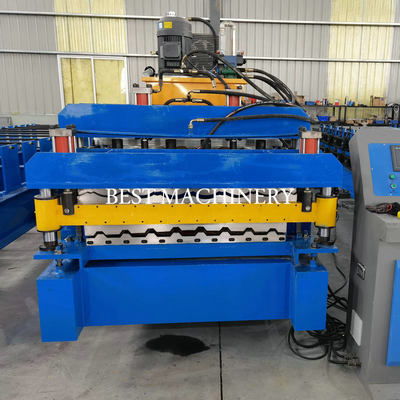

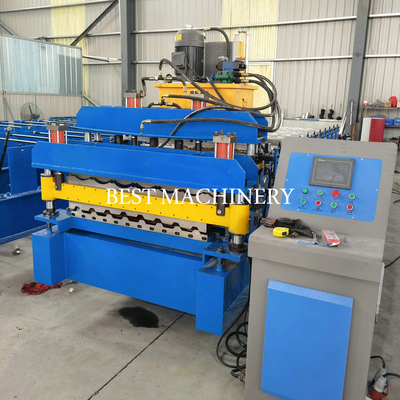

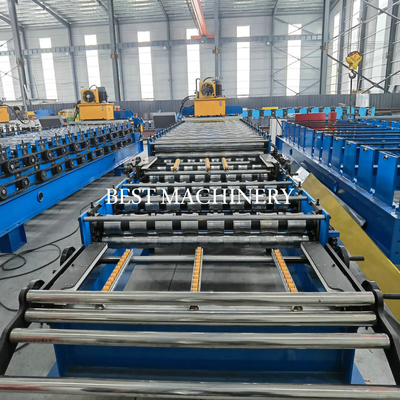

Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase

Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase
Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase

Large Image :  Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-1080
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35das
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

Gi Color Steel Double Layer Roofing Sheet Roll Forming Machine 3phase

Description
Name: Color Steel Double Layer Roof Tile&IBR Trapezodial Profile Making Roll Forming Machine Color: As Your Require
Material: PPGI GI Shaft: 70mm
Voltage: 380V/50HZ/3PHASE Warranty: 2 Year
High Light:

3phase roofing sheet roll forming machine

,

gi roofing sheet roll forming machine

,

gi color steel roll forming machine

       Color Steel Double Layer Roof Tile&IBR Trapezodial Profile Making Roll Forming Machine



1. Main structure

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency



Machine Component

Decoiler

2set

Roll Forming

1set

Cutting Device

1set

Hydraulic Pump

1set

PLC Control Box

1set

Output Table

1set



Work Flow

Decoiler------feeding------roll forming------cut to length-----output table



1

Suitable to process

Color steel plate, galvanized sheet, aluminum coils and etc.

2

Width of the feeding material

914-1250mm

3

Roller station

11-18 rows or custom as customer's requirements

4

Thickness of feeding material

0.3-0.8mm

5

Productivity

8-12m/min

6

Rollers' material

45# steel

7

Diameter of shaft

70-80mm

8

Voltage

380V 50Hz 3phases

9

Wall thickness of main forming machine

12-18mm steel plate

10

Main forming machine body

300-400 mm H steel

11

Motor power

4-7.5 kw

13

Weight

About 5-15T

14

Custom

According to customer's requirements





Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
