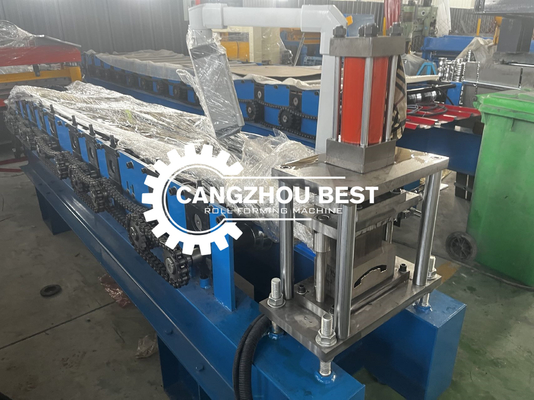

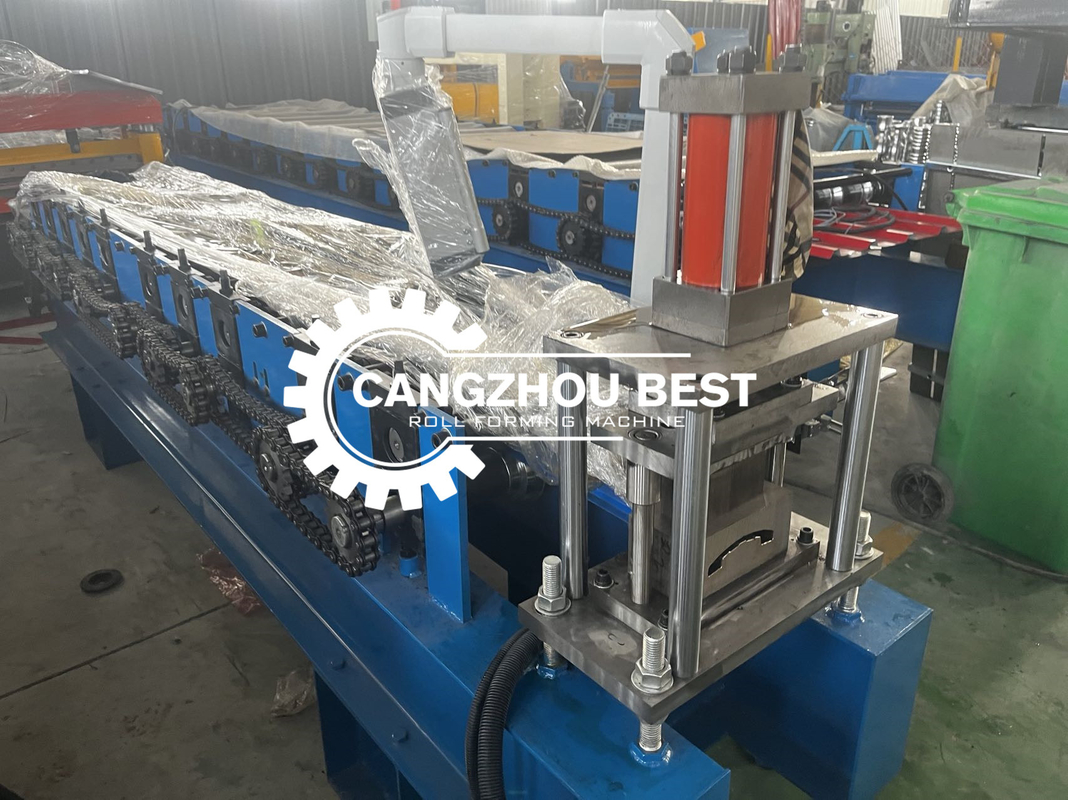

Ppgi Rack Roll Forming Machine Garden Fence Panel Making

Ppgi Rack Roll Forming Machine Garden Fence Panel Making
Ppgi Rack Roll Forming Machine Garden Fence Panel Making Ppgi Rack Roll Forming Machine Garden Fence Panel Making

Large Image :  Ppgi Rack Roll Forming Machine Garden Fence Panel Making

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: BEST
Certification: CE/BV/SGS
Model Number: YX686/762
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 12000 / SET
Packaging Details: naked
Delivery Time: 35days
Supply Ability: 15 sets/ month

Ppgi Rack Roll Forming Machine Garden Fence Panel Making

Description
Name: Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine Machine Color: As Customer Request
Payment Type: T/T LC Speed: 8-12m/min
Roller Material: 45#steel Panel Thickness: 20 Mm
Power: 8.5kw Raw Material: 0.3-0.8 MM PPGI/ GI
High Light:

garden fence rack roll forming machine

,

ppgi rack roll forming machine

Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine



General information for the Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine

Products made by this machine is easy to install, used together with different colors can make it appear dye-in-the-wood individual character. Width of 75, 100, 150, 200, and 300 C-shaped keel can be assembled arbitrarily, and they are connected tightly. They can be fixed on the device which is specially used for keels, they can tear down individually.Material for this machine is galvanized steel plate, snowflake plate and colored steel plate

Detailed components introduction for Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine



1.Manual Decoiler of the Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine

1):coil inner diameter: 450-550mm
2):coil max width: 1250mm
3):max carrying capacity: 5000kg
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system



2.Coil feeding part of the Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine

Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.





3.Main roll forming machine part of the Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine

1).roller material: 45# steel with hot treatment at 52-68 degrees, hot chormed on the surface to make sure its hardness.
shaft material: solid shaft(not hollow style), around 70kg/pc, to make sure the strength of it.and final profile shape are perfect in this way.
shaft diameter: normally is 72mm.
2).power: normally 7kw in total
3).transmission model: gear and chain
4).controlling model: PLC controlling system, fully automatic.
5).Forming speed: 0-17m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor
reducer drive, chain transmission,roller was chromed which can keep the molding plate surface
smooth and not easy to be marked when it is working

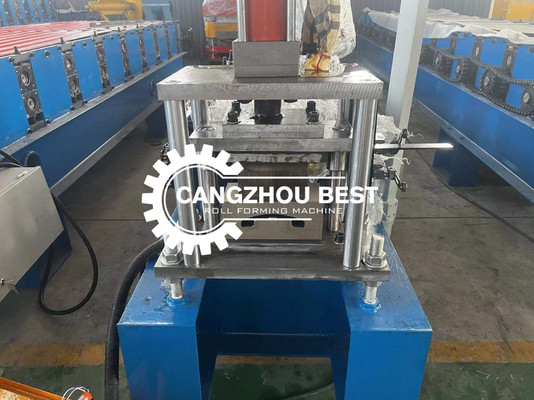

4.Automatic cuttting system of the Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine

1).Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor.
It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.The tolerance is within 10m±1mm
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine



5.Computer controlling part of the Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine

1).PLC brand: Normally, it is Delta. Mistubishi, Panasonic, Siemens are optional.
2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.



6. Hydraulic station of the Garden Fence Panel Making Machine/ Metal Fencing Cold Forming Machine 1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube

2).3kw,4kw,5.5kw,will be adopted as per your profile sheet.



Why choose us ?

1. We are professional manufacturer, so we can offer better price and after-sale service and shorter delivery time.

2. We have strong design & technical ability, we can design and manufacture as customer's requirement.

3. Our factory has been approved ISO 9001 certificate.

4. We have much experience for installation and training experience overseas.

5. We have successfully exported our machines to more than 90 countries, We all get good feedback.

6. We provide a free two years warranty for all our items.

7. OEM brand.



Process Flow

Ppgi Rack Roll Forming Machine Garden Fence Panel Making 0
