686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer

Certification
China Cangzhou Best Machinery Co., Ltd certification
I'm Online Chat Now

686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer

686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer
686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer 686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer 686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer 686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer

Large Image :  686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer

Product Details:
Place of Origin: HEBEI CHINA
Brand Name: CBEST
Certification: CE/BV/SGS
Model Number: YX762
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD 12000 / SET
Packaging Details: naked
Delivery Time: 35days
Supply Ability: 15sets/month

686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer

Description
Name: Double Layer Roof Sheet Roll Forming Machine Machine Color: As Your Request
Payment Type: T/T LC Speed: 8-12m/min
Roller Material: 45#steel Shaft Material: 45#steel
Power: 8.5kw
High Light:

hydraulic roofing sheet roll forming machine

,

762mm roofing sheet roll forming machine

,

686mm roof sheet roll forming machine



South Africa 686&762 Double Layer Roofing Sheet Steel Profile Roll Forming Machine



Machine Specifications



1 Coil Type Pre-painted coil,Galvanized steel
2 Width 925mm
3 Thickness range 0.3-0.8mm
4 Yield stress(mm) Q235
5 Effective width 686/762mm



Detail Information



Decoiler



5T manual decoiler

Features: Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.

Power: None;

Power of the open and closure of segments: Mechanical;

Power of rotation of segment: Pull by forming system;

Number of segment: 4pcs;

Range of segment expansion: 460 ~ 520mm;

Height of center of the mandrel: 0.65m;

Feeding speed: depend on the roll forming machine speed;



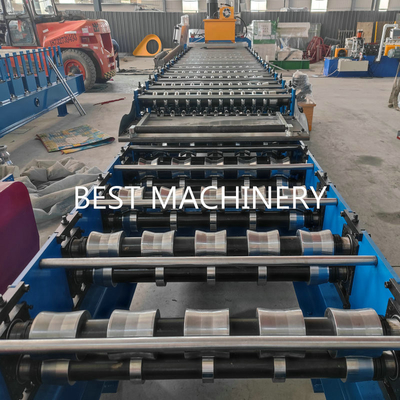

Roll forming machine

Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome;

Shaft: manufactured with 45# high grade steel by CNC machine tools;

Supporting frame: steel wallboard to guide the forming station bearing basement;

NO. of roller Stations:up 18groups
Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°

Diameter of shaft: 70mm

Frame panel thickness:14mm

Bottom frame: 36# H-section steel



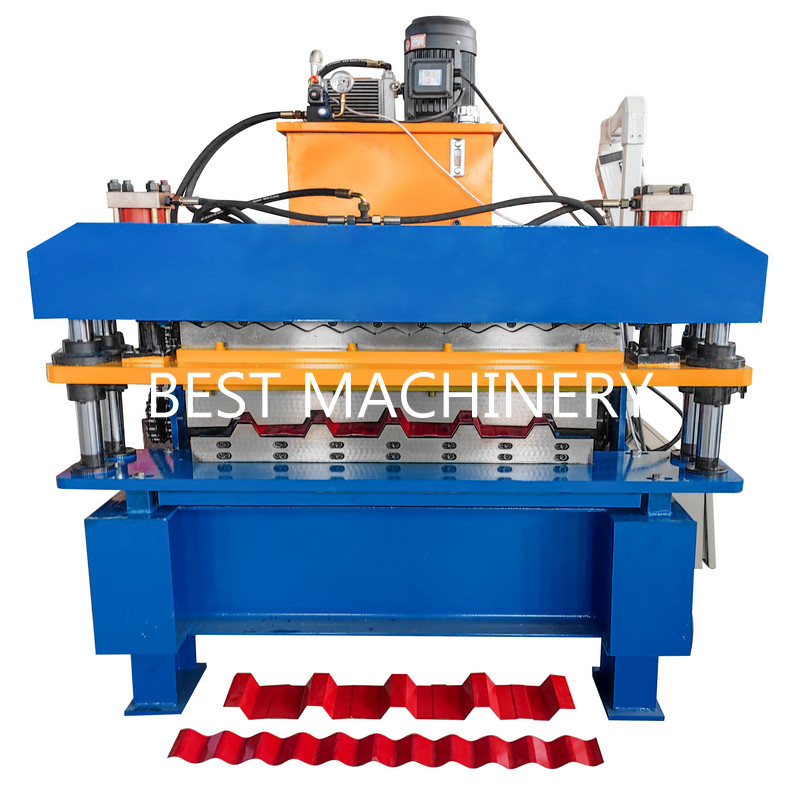

Cutter device

Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.

Power supply: hydraulic station;

Frame: welding steel frame;

Stroke switch: non-contact photoelectric switch;

Cutting after forming: cut the sheet after roll forming to required length;

Length measuring: automatic length measuring.



Hydraulic system

Hydraulic station

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutter machine to begin the cutting job.

Match equipment: The system includes a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes.and two sets of electromagnetism valves.

Adopted top brand hydraulic system components to ensure the stability and lifetime, avoid leakage.

Supplies the initial power to the cuter through a closed oil tank. It is off without cutting, which can save the power.



Electric control system

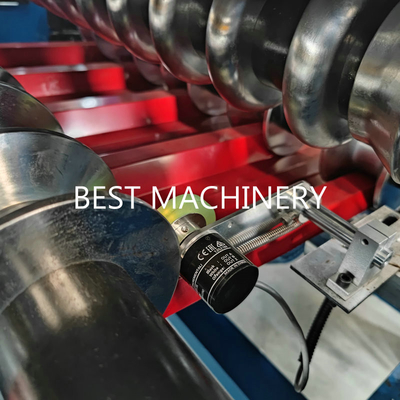

Automatic length measurement: one unit tooling of length measuring which is lightly pressed on the surface of the steel sheet; the tolling will roll with the moving speed of the steel sheet and then sense to measure its length; length inaccuracy can be amended easily.

Automatic quantity measurement;

PLC is used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved;

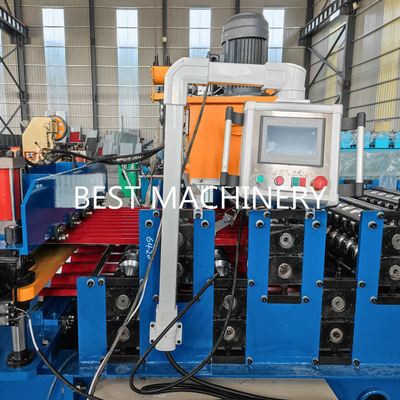

Control panel: Button-type switch, LED display length and quantity ;

Unit of length: millimeter;

Motor Over-Load, System Over-Current, Short circuit Protection function;

Display total length and total quantity produced.



686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer 0



686mm 762mm Hydraulic Roofing Sheet Roll Forming Machine Double Layer 1
