Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven

Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven
Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven

Large Image :  Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY77
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven

Description
Product Name: Galvanized Steel Profile Roller Door Slate Shutter Roll Forming Machine Machine Speed: 8-12m/min
Driven System: Chain Or Gear Box Control System: PLC
Cutting Type: Hydraulic Warranty: 2 Years
High Light:

380v50hz roller shutter slat machine

,

chain driven roller shutter slat machine

,

chain driven shutter door rolling machine

Galvanized Steel Profile Roller Door Slate Shutter Roll Forming Machine

Roller Shutters are one of the most versatile door products available for access control to almost all sizes of opening and perfect for covering and securing doorways, windows and other apertures.

Our factory is specialize in designing, making and installing roller shutter door forming machine. Our machines are selled all over the world.

Machine components



No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Hydraulic Cutting Device 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set


Parameter



No
Item
Parameter
1
Forming Speed
About 10-15m/min without punching
2
Forming station
12 groups
3
Main Forming Power
4 KW
4
Pump Station Power
3 KW
5
Cutting Type
Mould cutting
6
Total Weight
About 3,500 KGS
7
Machine Type
Hard column structure
8
Voltage
380v50hz,3p or as required
9
Diameter of shaft
50 mm solid, 45# steel with grinding process
10
Rollers
GCr15 with heat treatment and hard chrome coating 0.04-0.05
11
Cutting Blade
Cr12Mov with hard treatment, HRC52-68
12
Main frame system
Square box frame
13
Control System
Delta PLC
14
Measuring accuracy
Precision 3m +/-2mm,with frequencyer
15
Electrical motor
SHANGHAI LICHAO (famous brand)
16
Transmission
By gear drive
17
Counter
Omron from Japan
18
Under frame
Square box, 80mm square pipe welded, 10mm steel plate to make square box.
19
Straightening system
Straightening head
20
Language
Chinese-English operation version
21
Chain
Single chain 1’
22
Installation Size
5.9M * 1.5 M *1.2M



Standard export packing and delivery
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

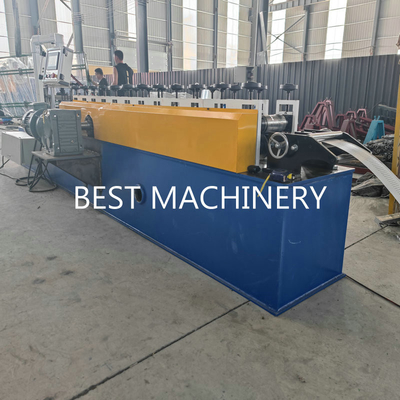

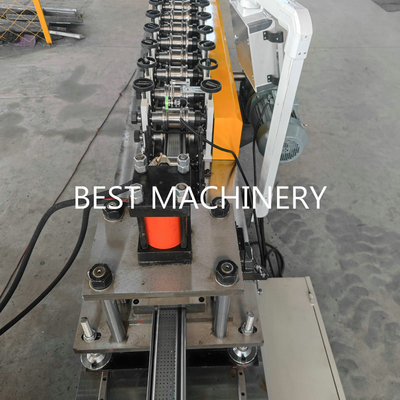

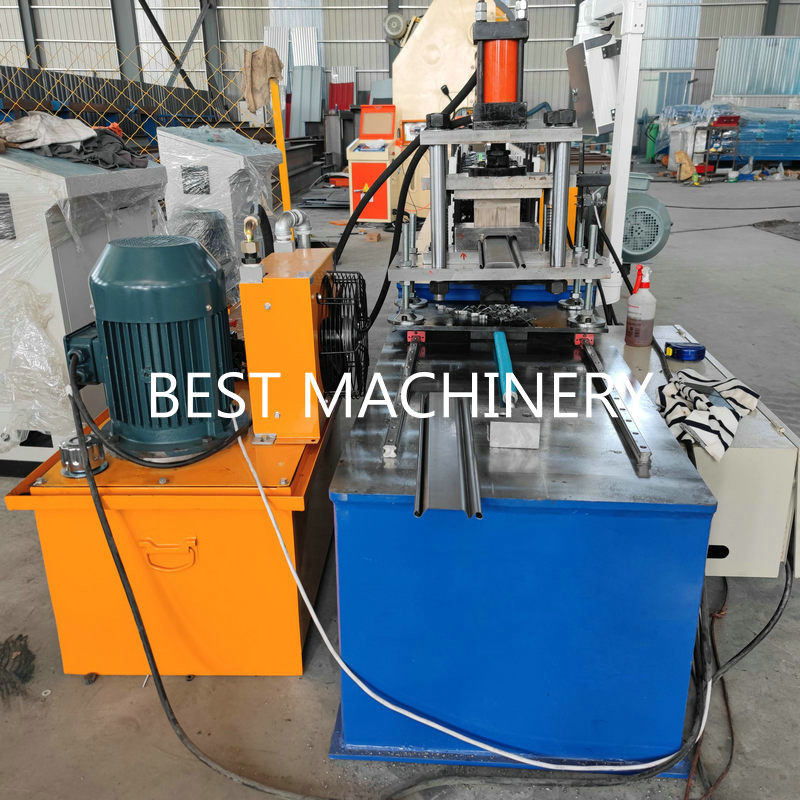

Galvanized Steel Profile 380v50hz Roller Shutter Slat Machine Chain Driven 0
