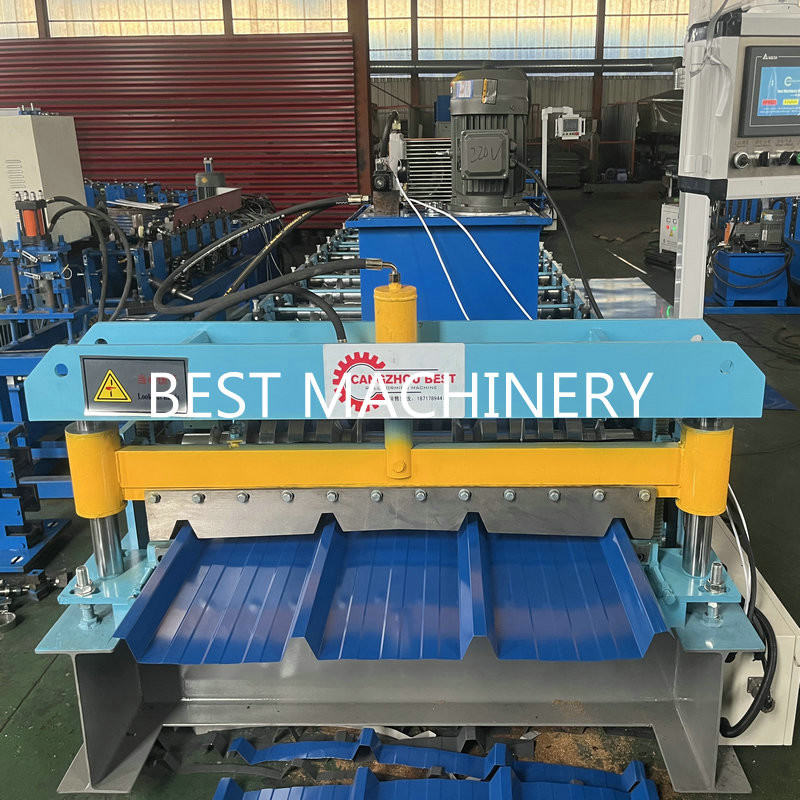

Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase

Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase
Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase

Large Image :  Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase

Product Details:
Place of Origin: China, Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-762
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: Standard
Delivery Time: 35das
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 15sets/month

Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase

Description
Name: Steel Profile Peru Popular Design TR4 Roof Sheet Roll Forming Machine Color: As Your Require
Material: PPGI GI Shaft: 70mm
Voltage: 380V/50HZ/3PHASE Warranty: 2 Year
High Light:

ppgi steel profile roll forming machine

,

3 phase profile roll forming machine

,

tr4 roof sheet roll forming machine

          Steel Profile Peru Popular Design TR4 Roof Sheet Roll Forming Machine



Sheet Specifications

1 Coil Type PPGI GI
2 Width 1250mm
3 Thickness 0.3-0.8mm
4 Yield stress Q235
5 Effective 1050mm



1. Main structure

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency



Work Flow



Decoiler------feeding------roll forming------cut to length-----output table



Machine Specifications



Decoiler

(1) Max. Width: 1000 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1000 mm
(4) Max. Loading Capacity: 5000 kgs

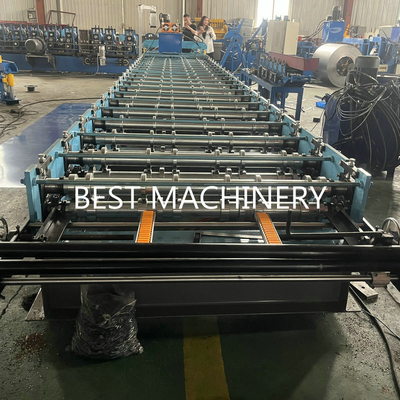

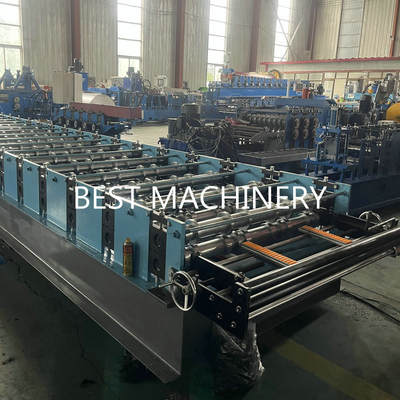

Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

Roller Stations:up16groups  down20groups

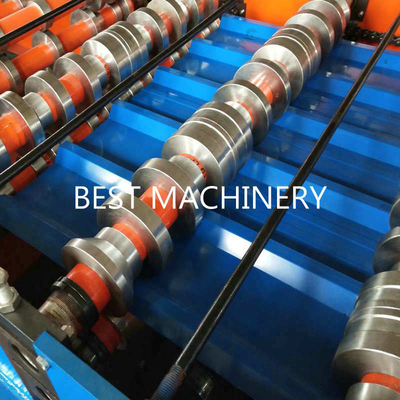

Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 5.5kw

Diameter of shaft: 70mm

Shaft Material: 45# steel

Driven type: 1.0"Chain



Cutting Device

Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW



PLC Control Box

(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta

(3)Length Error: ±2mm

(4)Language: English and Chinese

(5)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)



Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand





1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.

2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.

4.Warranty: 18months

During the warranty, the replaceable parts are free, but the buyers need to pay for the shipping . We will also provide you instruction manual to show you how to operate the machines.



Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase 0



Ppgi Steel Profile Roll Forming Machine Popular Design Tr4 3 Phase 1
