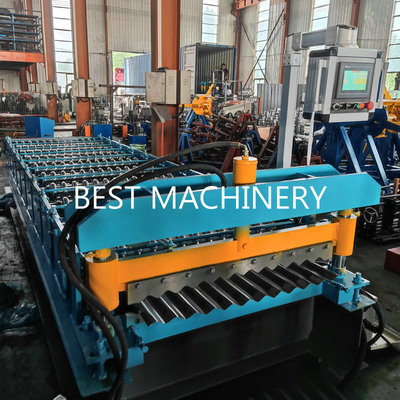

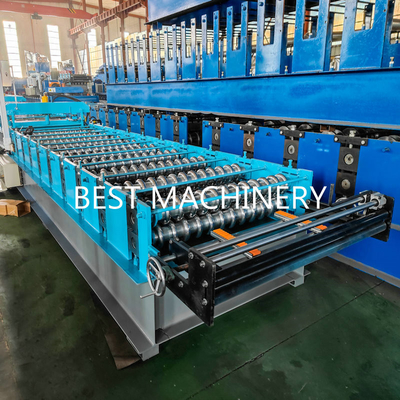

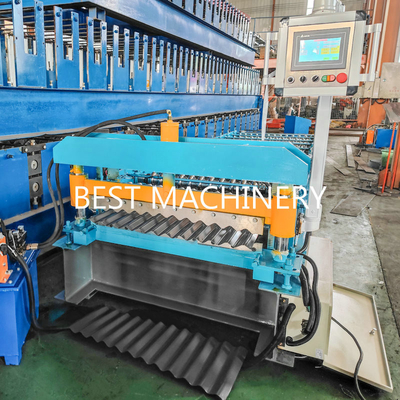

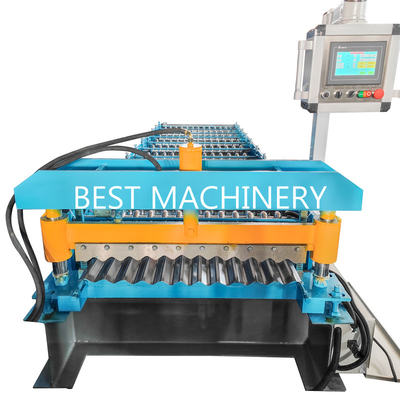

Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed

Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed
Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed

Large Image :  Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY836
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Coil Width 1000mm Roofing Sheet Roll Forming Machine Corrugated Steel Profile High Speed

Description
Product Name: High Speed Coil Width 1000mm Corrugated Steel Profile Roofing Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 8-12m/min Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
High Light:

corrugated roofing sheet roll forming machine

,

1000mm roofing sheet roll forming machine

,

1000mm high speed roll forming machine

High Speed Coil Width 1000mm Corrugated Steel Profile Roofing Roll Forming Machine

Components Details



Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 15, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.





C. Electric Components



Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES

well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

Delta VFD-M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.




Specifications:



Name:Manual decoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading

capacity:5T,Inner diameter: 500-508mm



Name:Feeding table

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

Please refer to the equipment regulation to know the function of locate angle iron. Remarks:Pre-hand cutting is manual



Name: Main rollers

Material of rollers:High grade 45# Forging Steel ,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Name:Computer Control Cabinet
PLC:Delta PLC(or according to customer's inquirement)

Touch Screen:Delta Frequency system:Delta Chinese/English and Russian Or Spanish



Name: Cutting head
It adopts the Motor drive and automatic location to decide the dimension and cut the target products. Material of blades: Cr12,quenching treatment

Name: Received goods table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. 2 pieces 3meters
FAQ

1. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.

2: How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation and trainning .

3.What about your warrenty?

A: Within the 18months period, we could supply you the replacement parts for free .

If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .
