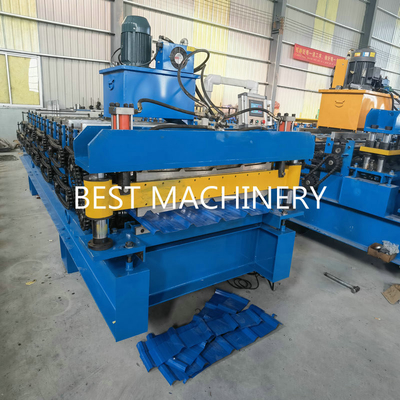

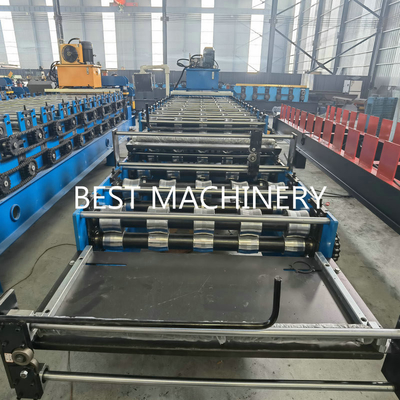

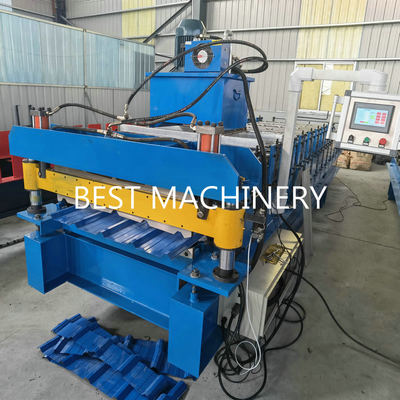

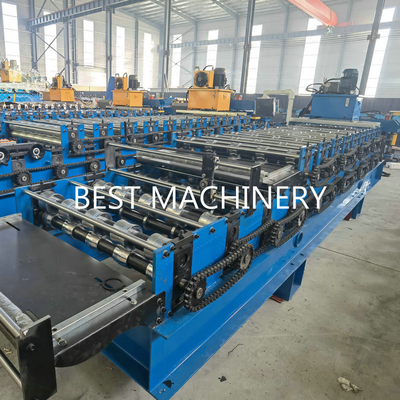

Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups

Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups
Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups

Large Image :  Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups

Product Details:
Place of Origin: China,Hebei
Brand Name: CHBEST
Certification: CE/ISO
Model Number: CHBEST-840
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD+8000+SET
Packaging Details: Standard
Delivery Time: 35days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 15sets/month

Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups

Description
Name: PV4 And Wall Panel Double Layer Steel Profile Roofing Panel Roll Forming Machine Color: As Your Require
Material: PPGI/GI Control System: PLC
Roller Station: 11 Groups Warranty: 2year
High Light:

pv5 roofing sheet roll forming machine

,

customized roofing sheet roll forming machine

,

11 groups roof sheet making machine

PV5 and Wall Panel Double Layer Steel Profile Roofing Panel Roll Forming Machine



Machine Specifications



Coil width 1000mm/1000mm
Effective width 840mm/900mm
Voltage 380V/415V/440V
Advantage Easy Operation
Capacity 12-15M/MIN
Color Blue or As customized
Power 3KW/5.5KW
Material PPGI/GI
Suitable for Roof Panel
MOQ 1SET
Condition New
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2022
Warranty of core components 1 Year
Core Components PLC, Bearing, Gear, Pump
Warranty 2 years
After-sales Service Provided Free spare parts, Field installation, commissioning and training, Video technical support, Online support
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location None
Applicable Industries Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Showroom Location None
Place of Origin Heibei,China





Name: Manual Uncoiler

Usage:It is used to support the steel Strip and uncoil it in a turnable way.

The steel strip is uncoiled by hand.

Loading capacity:5T

Inner diameter: 450mm-550mm



Feeding table:

The feeding table with a hand cutting.

During the operation of the machine, raw materials can be cut off in advance at the feeding position to avoid waste of raw materials.

The metal sheet  is manually put on the feeding table.

The metal sheet can be smoothed and leveled



Roller and Shaft:

Roller Material: bearing steel

The roller material processing method :

1. Rough machining

2.Fine polishing

3.Heat treatment58 ℃-62 ℃

4.45# hard chromium plating

5.Shaft Diameter: 70 mm

The roller and shaft won't scratch the board. It is long service life and durable.



Hydraulic Pump:

The pump power:4 KW

Brand: Lichao

Motor with pump  capacity of tank: 45L

Hydraulic pump station provide cutting power



Hydraulic Cutting:

Blade material: Cr12, heat treatment58 ℃-62 ℃

When cutting start to work,  Hydraulic pump station excitation guide column working, drive blade cutting .

Because this cutting method is stable, metal plate cross section is neat.the cutting speed is increased.



PLC electronic control system

Brand : Delta

Touch Screen electronic panel

Brand : DELTA

Touch design with multilingual function

It is to used to setting the cutting size with easy to operation



Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups 0



Pv5 Roofing Sheet Roll Forming Machine Wall Panel Double Layer Steel Profile 11 Groups 1
