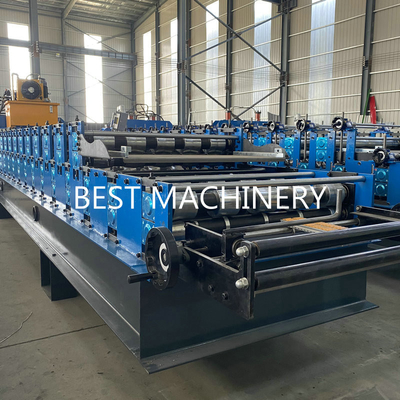

Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min

Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min
Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min

Large Image :  Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min

Product Details:
Place of Origin: China Hebei
Brand Name: CHBEST
Certification: CE/BV/SGS
Model Number: XY1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plastic film for naked machine
Delivery Time: 20-30 days
Supply Ability: 20 sets/month

Color Steel Profile High Rib Roof Panel Roll Forming Machine Plc 8m/Min

Description
Product Name: Color Steel Profile High Rib Roof Sheet& Spanish Roof Tile Double Layer Roof Roll Forming Machine Color: Blue Or As Your Request
Machine Speed: 8-12m/min Driven System: Chain Or Gear Box
Control System: PLC Cutting Type: Hydraulic
Warranty: 2 Years Bottom Frame: 360 H Steel
High Light:

8m/min roof panel roll forming machine

,

plc roof panel roll forming machine

,

high rib roof sheet making machine

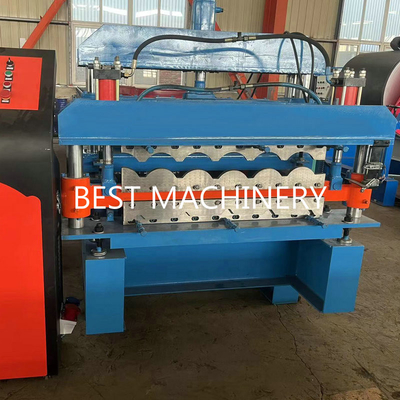

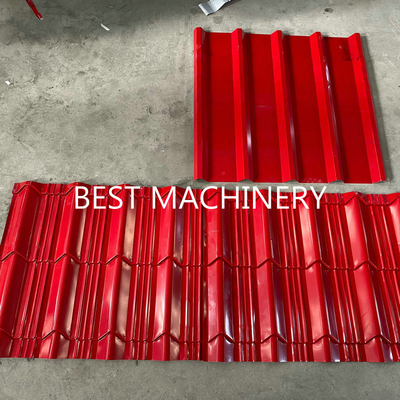

Color Steel Profile High Rib Roof Sheet& Spanish Roof Tile Double Layer Roof Roll Forming Machine


Machine Component


No.
Name
Amount(set)
1
Passive de-coiler
1
2
Roll forming machine
1
3
Hydraulic cutting blade
4
Hydraulic station
1
5
Computer control counter
1
6
Run out table
2


Working Flow:

Passively De-Coiling → Guiding & Feeding Material → Roll Forming → Cutting-to-Length → Output Panel.

Specifications:



Decoiler

Roof sheet make machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also can choose electric loading frame or hydraulic loading frame.

This loading frame decoiler also can use in other type machine, customer can buy it alone.



Machine frame

Roof sheet make machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable

AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.

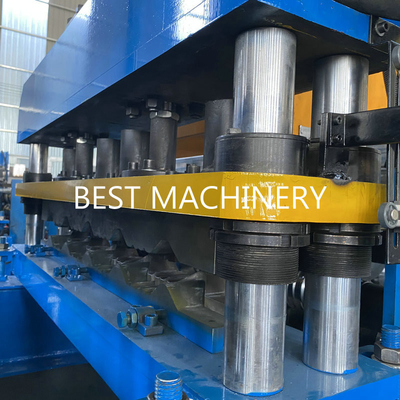

Forming roller

Roof sheet make machine forming roll quality will decide roof sheet shapes, we can according to your local roof shape customized different type rollers

Roller chrome coated thickness: 0.05 mm

Roller material: Forging Steel 45# heat treatment.



Control part

Roof sheet make machine control parts have different types, standard type are button control, through press buttons to realize different function.

PLC touch screen type can setting data on the screen, its price is little higher, but is more intelligent and automatic.



FAQ



1. Q: How to visit our company:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 24 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
