Product Details:
|
| Name: | Gear Box Transmission Automatically C Purlin Roll Forming Machine/C Profile Machine | Warranty: | 18 Month |
|---|---|---|---|
| Condition: | New | Material: | Galvanized |
| Forming Speed: | 8-12m/min | Cutting Type: | Hydraulic |
| Power Supply: | 380V, 3-Phase,50Hz | ||
| High Light: | Gear Box Transmission C Purlin Machine,Automatically C Purlin Machine,Automatically C Purlin Roll Forming Machine |
||
Gear Box Transmission Automatically C Purlin Roll Forming Machine/C Profile Machine
Main parts in detailes

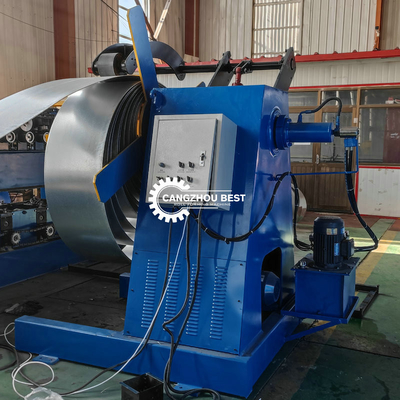

(1) Manual Uncoiler
Max.Capacity: 5T
(2) Pre- Cutting Device& Pre-Punching Device
It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.
Cutting length tolerance:±2mm
Material: GCr12 with quenched treatment 60-62°C
(3) Hydraulic System
Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.
Power: 22 KW
(4) Control System
It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.
Parameter
| Configurations | Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table. |
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Roller Diameter | 80mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1.5-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Overall Size | About 8500×1000×1400mm |
| Total Weight | About 10T |
| Custom | According to customer's requirements |
Our service:
1. One year warranty, whole life technical support.
2. Installation & adjustment: We can take video for the customer and customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and pay salary everyday.
Featares:
a. The tile froming must use the high number pulse input function, the high number input performance is excellent, and the AB phase has strong anti-interference ability. And use the fixed value interrupt function to ensure accuracy.
b. The testing part of the tile forming machine includes: a pulse encoder for detecting the length of the colored steel tile, a press-type upper and lower stroke switch, a cutter upper and lower stroke switch, a press-type upper and lower operation button, a cutter upper and lower stroke button, an emergency stop switch , hydraulic start and stop switch and so on.
c. The implementation part of the forming machine has the inverter drive motor, the hydraulic station motor, the two hydraulic solenoid valves of the pressure type, and the two hydraulic solenoid valves of the cutter.
d, PLC with 14 inputs / 10 relay output, just meet the input and output requirements. With the text screen, you can complete parameter settings, alarm display, help information, production data display, and more.
Packing and Loading:
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
