Product Details:
|
| Product Name: | Double Layer Tr4&Tr6 Color Steel Roofing Sheet Cold Roll Forming Machine/Pv4 Pv5 Pv6 | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| Warranty: | 2 Years | Life Time: | More Than 10 Years |
| High Light: | Tr4 Tr6 Cold Roll Forming Machine,Cold Roll Forming Machine Pv4,Tr4 Tr6 Roofing Sheet Forming Machine |
||

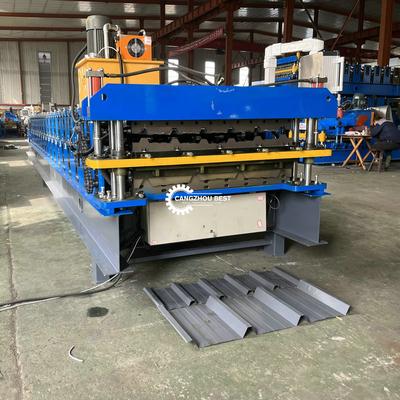

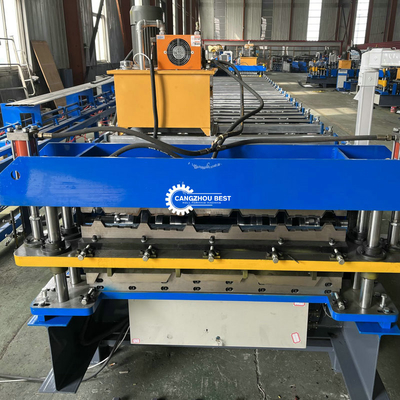

Double Layer Tr4&Tr6 Color Steel Roofing Sheet Cold Roll Forming Machine/Pv4 Pv5 Pv6
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |

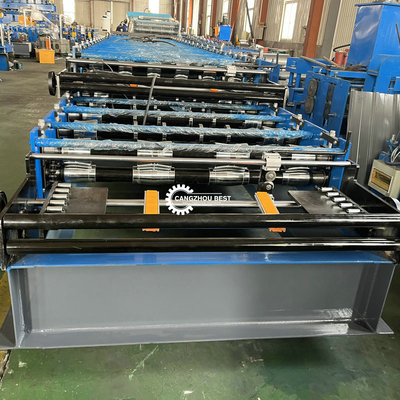

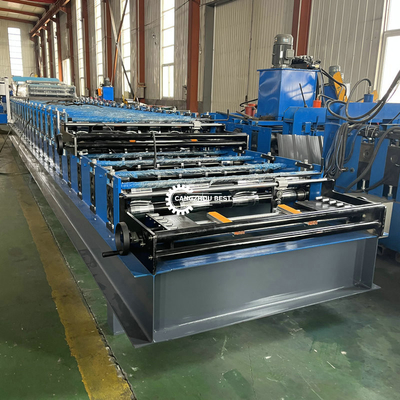

roll forming
| High Quality tr4/tr6 Double Layer Roof Machine | ||
| 1.Formed Material | PPGI,GI,AI | Thickness:0.25-0.6mm Width:1000mm/1250mm(customized) |
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free) |
| 3.Main body | Roller station | 18+20 rows(As your requirement) |
| Diameter of shaft | 70mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | 400 H steel | |
| Drive | Gearbox transmission | |
| Dimension(L*W*H) | 9500*1800*1600(customize) | |
| Weight | 18T | |
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Motor Power | 5.5KWsets,Siemens brand |
| Hydraulic system power | 3KW | |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 8.Forming Speed | 15-20m/min | The speed is adjustable |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
