Product Details:
|
| Product Name: | Steel Profile Double Layer Roof Sheet/Roof Tile/Corrugated Panel Roll Forming Machine | Color: | Blue Or As Your Requirement |
|---|---|---|---|
| Machine Dimention: | 6.5mx1.4mx1.4m | Machine Power: | 3kw+4kw |
| Warranty: | 2 Years | Control System: | PLC |
| High Light: | PLC Corrugated Panel Roll Forming Machine,Double Layer Roof sheet roofing machine,PLC tile roll forming machine |
||

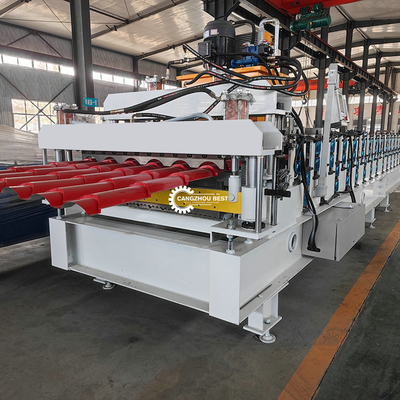

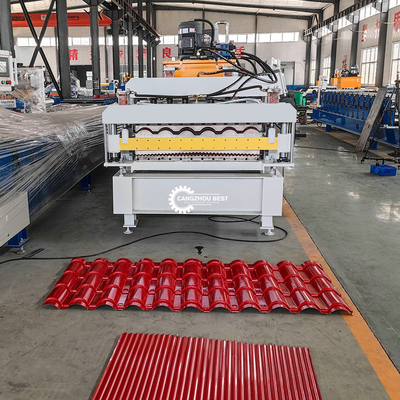

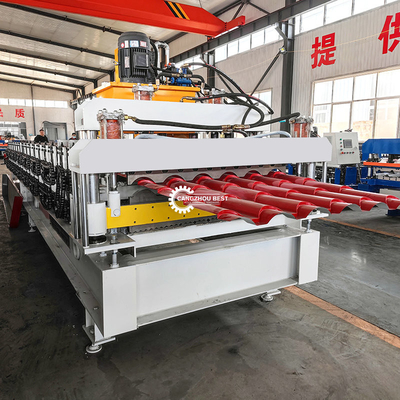

Steel Profile Double Layer Roof Sheet/Roof Tile/Corrugated Panel Roll Forming Machine
Tile effect roofing sheets are manufactured, cut to customers exact sizes and length requirements, providing 1m cover when fitted. ie. 10 sheets will cover 10m when fitted. Two types of durable cosmetic finish our tile effect roofing sheets are available in either a Polyester coated smooth finish or a plastisol coated leather grained finish.
The profile of the tile effect roofing sheet has a depth of 32mm providing 5 tiles across the width of each sheet. Each individual tile is 200mm wide and 300mm long. For example a 3 metre long sheet will consist of 50 tiles on a sheet, why fit 50 tiles when you can fit one sheet.
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 2 Sets |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
| Type | Manual type(standard) |
| Width | 1250mm |
| Capacity | Max 5 tons |
| Inner diameter | φ508-610mm |
| Outer diameter | φ1500mm |

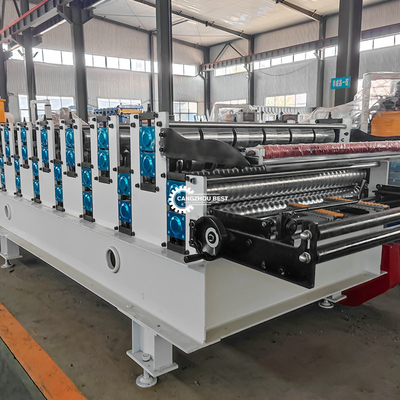

roll forming
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 13-22 stations(according to the profiles) | ||||||||
| Machine rollers |
high grade No.45 forged steel,plated hard chroming with thickness 0.05mm |
||||||||
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | 1 inch chain or gear box(option) | ||||||||
| Machine power | 3kw-11kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Pressing and cutting device
| Type |
bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Hydraulic Pump
Oil type: 46# hydraulic oil
Pump brand: China brand
Output Table
No power type
Length: 2m
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 45 days after receiving down payment
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting,we will send you user manual and CD to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
Contact Person: Mr. Arno Hao
Tel: +8618717894416
