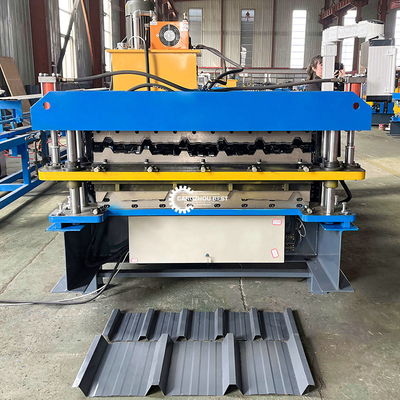

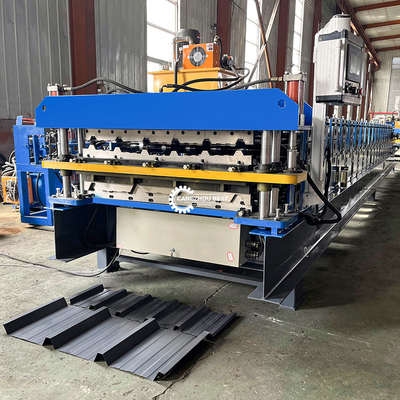

Steel Profile Tr4&Tr6 Double Layer Roofing Sheet Roll Forming Machine 70mm Shaft

         Peru Pouplar Steel Profile Tr4&Tr6Double Layer Roofing Sheet Roll Forming Machine

1. Main structure

a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
d) It is very easy to install the equipment and suitable for producing in the factory.
e) Low noise with high efficiency

Machine Component

Work Flow

Decoiler------feeding------roll forming------cut to length-----output table

Decoiler

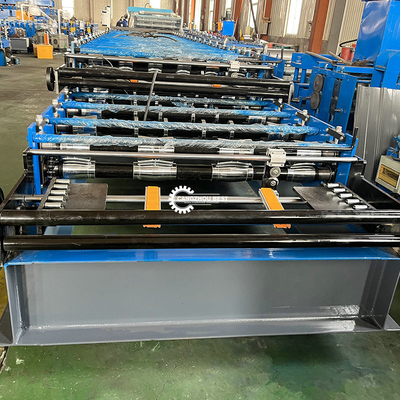

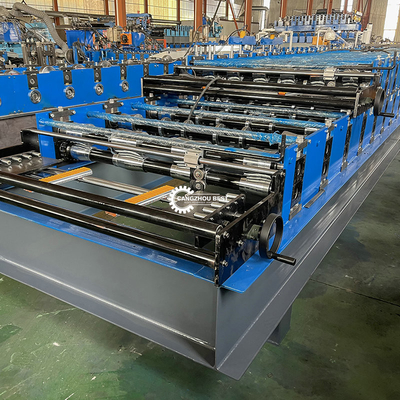

Roll Forming Machine

Material Thickness: 0.3-0.8mm PPGI and GI

Roller Stations:up16groups  down20groups

Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°

Frame panel thickness: 20mm

Bottom frame: 36# H-section steel
Motor Power: 5.5kw

Diameter of shaft: 70mm

Shaft Material: 45# steel

Driven type: 1.0＂Chain

Cutting Device

Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW

Hydraulic Pump

Motor power: 3 kw
Oil type: 46# hydraulic oil
Pump brand: China brand

Packing Detall

1*40 GP container ; main machine naked and fastened with iron wire in the container.
2. rollers were painted with oil and packed with plastic film.

3. electrics devices be packed with wooden box.for Standard export packing.

4. All Components Fixed by steel wire with Container.
