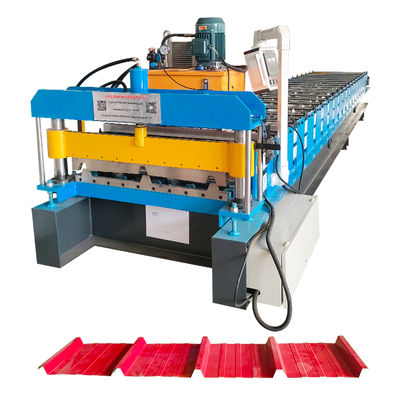

Three Peaks 820 Roofing Sheet Roll Forming Machine For Afira Market Good Quality

Large Image : Three Peaks 820 Roofing Sheet Roll Forming Machine For Afira Market Good Quality

Product Details:

Place of Origin:	China
Brand Name:	BEST
Certification:	ISQ/CE
Model Number:	XY-1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 6500-13000/SET
Packaging Details:	Main machine naked and fastened with wire rope in the container.All electrics devices be packed with plastic film.
Delivery Time:	35 days
Payment Terms:	L/C,T/T
Supply Ability:	15 sets/ month

Contact Now

Three Peaks 820 Roofing Sheet Roll Forming Machine For Afira Market Good Quality

Description

Name:	Three Peaks 820 Roofing Sheet Roll Forming Machine For Afira Market Good Quality	Key Words:	Steel Profile Roof Sheet Roll Forming Machine
Material Of Roller:	45# Steel Polished And Coated With Chrome	Material Of Shaft:	45# Steel Polished And Coated With Chrome
Diameter Of Shaft:	70 Mm	Frame Panel Thickness:	20 Mm
Bottom Frame:	350 H-section Steel	Motor Power:	3kw
Highlight:	Three Peaks 820 roofing sheet machine , Afira market roll forming machine , roofing sheet machine with warranty

Three Peaks 820 Roofing Sheet Roll Forming Machine For Afira Market

This high-quality roofing sheet roll forming machine produces various steel roof and wall panel profiles according to client specifications. The finished sheets are ideal for construction projects including gymnasiums, airports, theaters, factories, warehouses, garages, and exhibition centers.

Working Process

Decoiler → Feeding → Roll forming → Cut to length → Output table

Main Technical Parameters

No.	Item	Parameter	Remark
1	Material Type	Cold-rolled strip steel, galvanized sheet
	Material Thickness	0.25-0.6mm
	Material Yield Strength	G550
2	Forming Product Width	1200mm
3	Forming Speed	25m/min	Including hole
4	Motor Power	5.5 KW
5	Collect Rack	6m
6	Voltage	AC380V,50Hz,3P	Customized

Machine Specifications

1. Decoiler

Max. Width: 1250 mm
Inner Diameter: Φ450 - Φ550 mm
Out Diameter: 1500 mm
Max. Loading Capacity: 5000 kgs

2. Roll Forming Machine

Material Thickness: 0.2-0.8mm PPGI and GI
Number of Roller Stations: 16 groups
Roller Material: High grade 45# steel polished and coated with chrome HRC55-60°
Shaft Material: High grade 45# steel polished and coated with chrome HRC55-60°
Shaft Diameter: 70mm
Frame Panel Thickness: 20mm
Bottom Frame: 350 H-section steel
Motor Power: 3kw
Driven Type: 1" Chain
Speed: 8-12m/min

3. Cut-Off Device

Cut-Off Modular Material: Cr12 steel after treatment
Hardness for Heat Treatment: HRC55 - 60°
Cut-Off Type: Hydraulic, Automatic Cut-Off
Motor for Hydraulic Stand: 3 kW

4. PLC Control Box

Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Voltage: 380v/50HZ, 3Phase

Installation and Training

On-site training available for visiting buyers
Remote support including user manual and instructional videos
Optional technician dispatch (travel expenses and daily fee apply)

About Our Factory

Cangzhou Best Machinery Manufacturing Co., Ltd. specializes in high-quality cold roll forming machines with over 20 years of engineering expertise. Our product range includes various roll forming machines for construction and industrial applications.
