Product Details:
|
| Name: | Portable Metal Standing Seam Machine KR18 Profile | Roller Material: | 45#steel |
|---|---|---|---|
| The Shaft: | 60mm | Cutting Blade Material: | Cr12 |
| Place Of Origin: | Hebei, China | Bottom Frame: | 350H Steel |
| Control System: | PLC | Certification: | CE BV SGS |
| Voltage: | 380v 50hz 3phase | Side Panel: | 20mm |
| High Light: | Portable Standing Seam Roll Forming Machine,Metal Standing Seam Machine KR18 Profile,Portable Standing Seam Roll Forming Machine |
||
Metal Steel Portable Standing Seam Roll Forming MachineMachine KR18 Profile

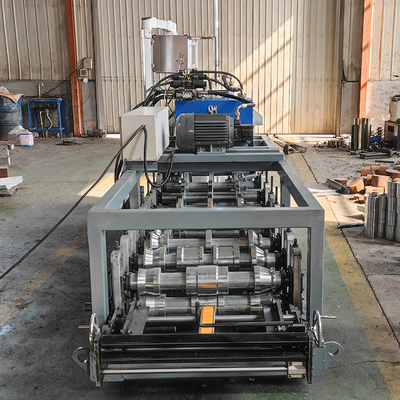

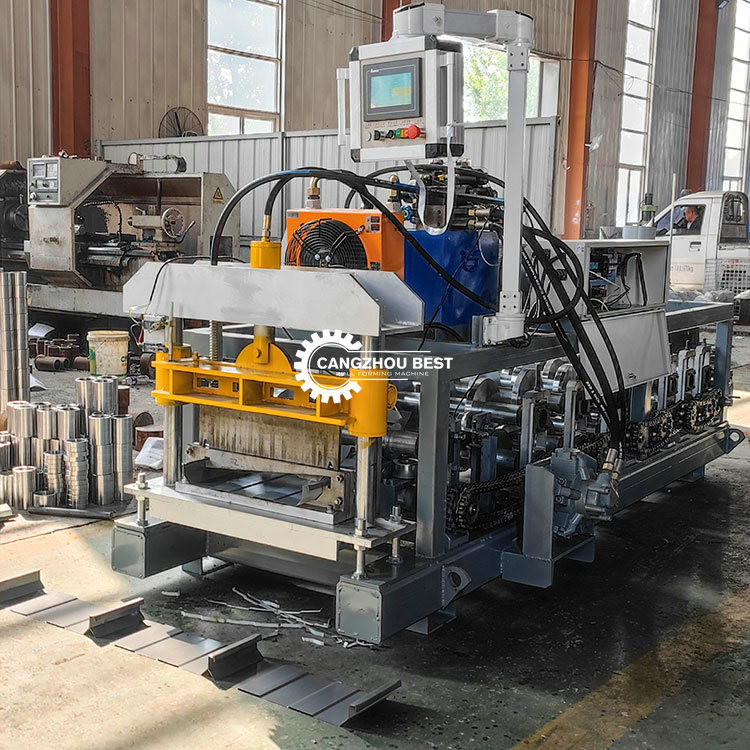

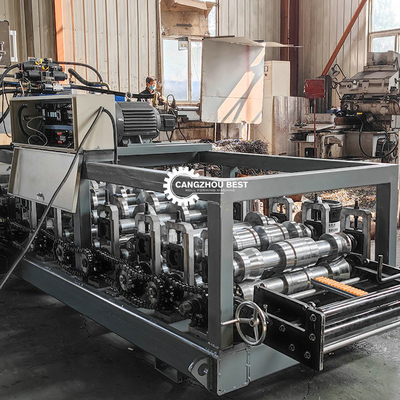

Portable Metal Standing Seam Machine KR18 Profile
1. Machine information:
Mexico KR18 KR24 Portable Standing Seam Roof Profile Roll Forming Machine has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet,selflock roof machine. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
2. Machine Details:
| size | 6000mm × 1300mm × 1400mm |
| Weight | 5000KG |
| Feeding width | 600mm |
| hydraulic cutting power | 3.0kw |
| Working Speed | 8-10m/min |
| Material of rollers | Good 45# steel, rigid chrome coated |
| Material of roller shafts | 45# steel, quenched HRC 58-62 |
| Material of cutting blade | Cr12 steel |
| Thickness of the coil | 0.42mm-0.48mm |
| Electric Standard | 380V / 50 HZ / 3 PHASE |
| Forming station | 11 steps |
| Electronic controlling system | Japan Omron PLC |
| Type of cutting | Roll-formed and quantity-set and length-set cutting |
| Ship Container | 20GP*1 |
3. Parameters
| NO | Item | Para | Remark | |
| 1 | Suitable Material | Type | Color Steel Sheet | |
| Thickness (mm) | 0.4 to 0.7 | |||
| Yield Strength (Mpa) | 230 to 300 | |||
| (mm) | ≤1250 | |||
| Capacity of Decoiler | 5T/8T/10T | According to Customer | ||
| 2 | Material of Rollers | No.45 Hard Chromeplate | ||
| 3 | Line Speed (m/min) | 20/30/50/60 | ||
| 4 | Roller Shaft Supporting Structure | Guiding Column | ||
| 5 | Electric Control System | PLC | Brand: Mitsubishi or Siemens | |
| 6 | Operation Desk | Touch Screen + Button | ||
4. Our Service
About Guarantee
We provide 10 years guarantee for some parts of machine.
About Design
We can design projects for free according to your requirements, and provide drawings.
About Training
If you send the technicians to our factory to study, we will provide training, accommodation, meals and local traffic expense.
If you need technicians we send to your country to train, you should provide expenses of visa, accommodation, meals, round-trip tickets, local traffic and 100 dollars wages per day for everyone.
Packing and Loading:
- 1.Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2.This producing line is maintained free of charge for 24 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3.All the parts in the roll forming machine is free to maintain all the life,if in 24 months our company bear the cost for
exchanged the broken part like the new parts cost and express cost,if more than 24 month,we also free to maintain the broken parts ,but for send the new parts,the buyer need bear the express cost.
- 4.When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
