Product Details:
|
| Product Name: | Three Layer Roof Tile/IBR Roof Sheet/Corrugated Roofing Sheet Roll Forming Machine/Three Profiles In One | Color: | Blue Or As Your Request |
|---|---|---|---|
| Driven System: | Chain Or Gear Box | Control System: | PLC |
| Cutting Type: | Hydraulic | Warranty: | 2 Years |
| High Light: | roof sheet making machine PLC Control,Roofing Sheet Roll Forming Machine Corrugated,Hydraulic roof sheet making machine |
||

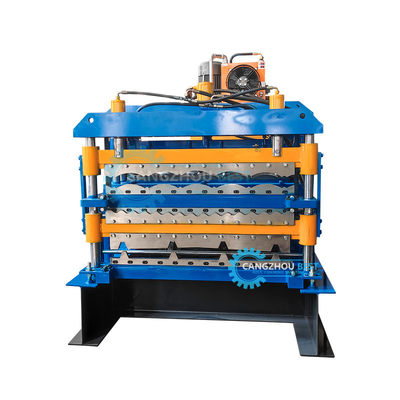

Three Layer Roof Tile/IBR Roof Sheet/Corrugated Roofing Sheet Roll Forming Machine/Three Profiles in One
Machine components
|
Name |
NO. |
Unit |
|
1.De-coiler |
3 |
set |
|
2.Forming machine |
1 |
set |
|
3.Cutting device |
1 |
set |
|
4.PLC control box |
1 |
set |
|
5.Hydraulic pump station |
1 |
set |
|
6.Production support table |
1 |
set |
Specifications:
| No | Item | Data |
| 1 | Raw material width | 1000-1200 mm |
| 2 | Sheet effective width | 750-1000 mm |
| 3 | Raw material | Color steel sheet or galvanized steel sheet |
| 4 | Material thickness | 0.3-0.8 mm or customized |
| 5 | Forming roller material | 45# steel plated with chrome |
| 6 | Shaft diameter | 70 mm |
| 7 | Forming roll station | 8-16 steps |
| 8 | Main motor power | 3 KW 4 KW 5.5 KW(according to type) |
| 9 | Hydraulic power | 4 KW (according to type) |
| 10 | Control system | PLC control |
1.DECOILER
(1) Max. Width: 1250 mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 5000 kgs
(5)Type: Manual or hydraulic
2. ROLL FORMING MACHINE
(1) Material Thickness: 0.3-0.8mm PPGI and GI
(2) NO. of roller Stations: 19groups
(3) Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 350 H-section steel
(8) Motor Power: 11kw
(9)Driven type: 1.0＂Chain
(10)Speed:20-30mm/min
3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC55 – 60°
(3)Cut-Off Type: Hydraulic, Automatic Cut-Off
(4) Motor for Hydraulic Stand: 3 kW
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand:Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase
(it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Motor power: 3 kw
(2)Oil type: 46# hydraulic oil
(3) Pump brand: China brand
6. PRODUCTION SUPPORT TABLE
(1) auto stacker
(2)Length: 6m
(3)Power:1.5kw
7.Spare part
Chain x1; Bearing x 1; limit switch x1
Training and Installation
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
Advantages
Forming machine rollers are manufactured from high quality bearing 45 # steel(not A3 steel), which make roller more wearable and longer life;
Forming machine housing is manufactured from H steel(not angle iron),which the machine run in stable situation and avoid vibration to affect forming precision;
The key components of PLC control system, electric switches, electric motors, drives and hydraulic componentsare famous brands to ensure the machines in good and stable working order for long time;
Forming machine all parts with special treatment for anti-corrosion and long life(shaft chromeplated, straining beam galvanized ,screw rod black painted);
Forming machine all parts baking finishing and then assembly

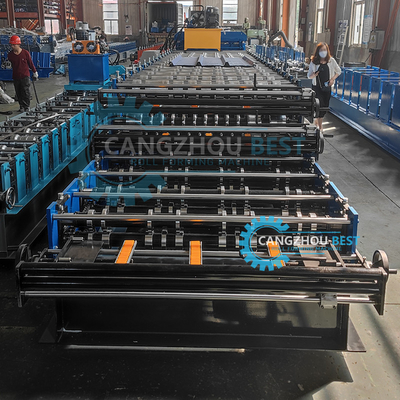

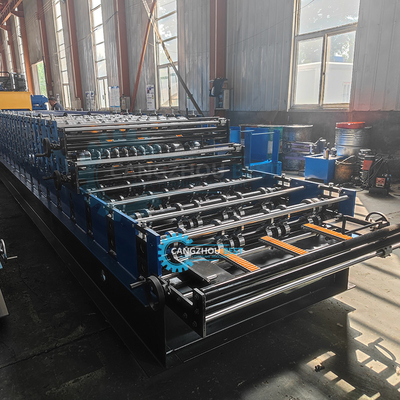

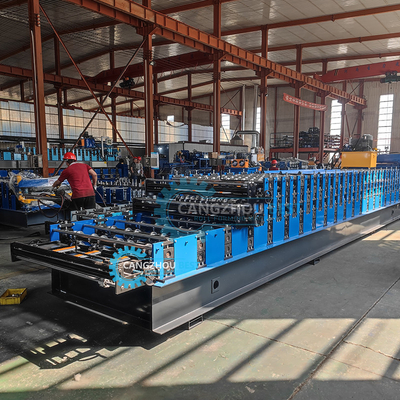

Machine Photo
