Product Details:
|
| Product Name: | Mexico Popular Double Layer R101&Corrugateed Roofing Profile Roll Forming Machine | Color: | Blue Or As Your Request |
|---|---|---|---|
| Machine Speed: | 8-12m/min | Driven System: | Chain Or Gear Box |
| Control System: | PLC | Cutting Type: | Hydraulic |
| High Light: | hydraulic cutting double layer forming machine,gearbox driven double layer forming machine,ai double layer roll forming machine |
||

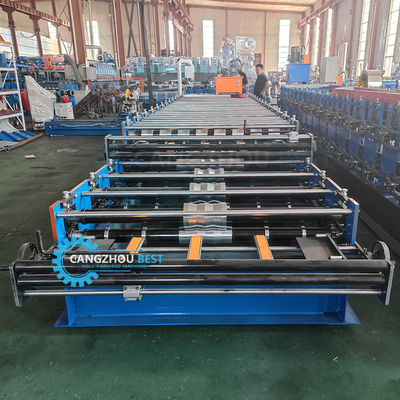

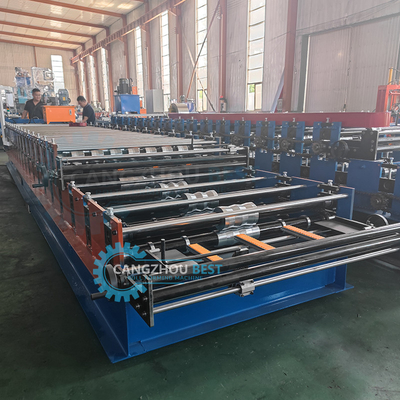

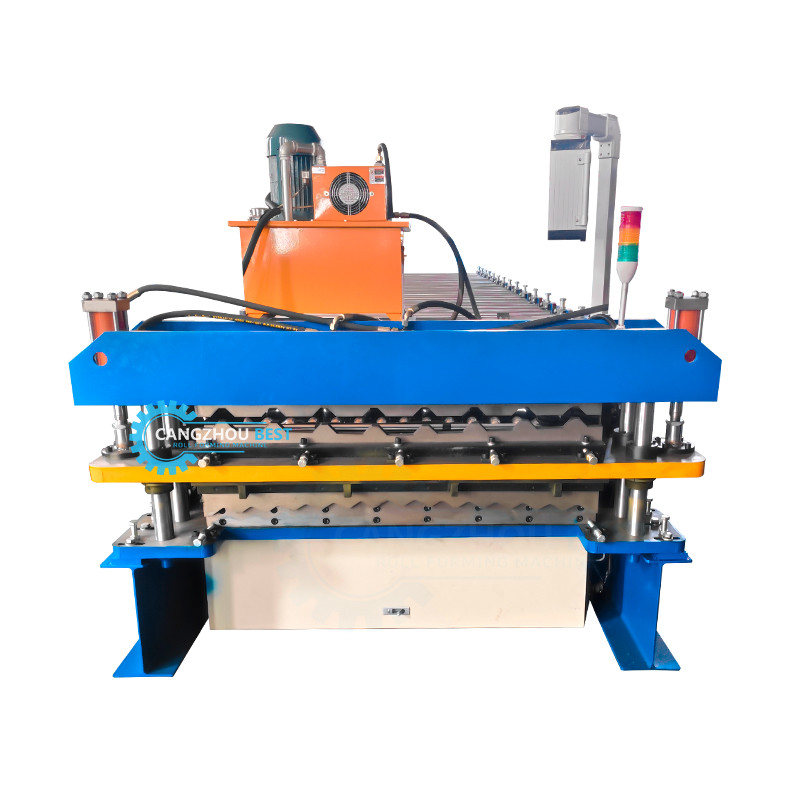

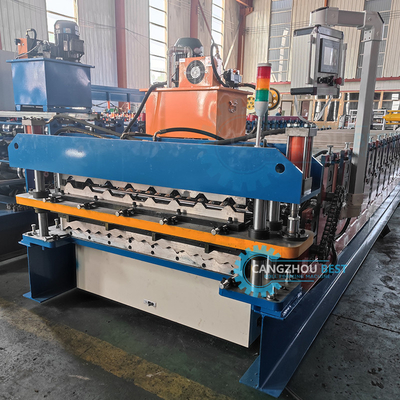

Mexico Popular Double Layer R101&Corrugateed Roofing Profile Roll Forming Machine
Machine components
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
Production support table-----------------------1set
Machine Specifications
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm |
| 2.Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) |
| 3.Main body | Roller station | 16+18 rows(As your requirement) |
| Diameter of shaft | 80mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | 350 H steel | |
| Drive | Double Chain transmission | |
| Dimension(L*W*H) | 7500*1600*1600(customize) | |
| Weight | 7.5T | |
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation |
| 5.Power | Main Power | 5.5KW |
| 6.Voltage | 380V 50Hz 3Phase | As your requirement |
| 7.Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 18.Forming Speed | 8-12m/min15-20m/min | The speed depends on the shape of the tile and the thickness of the material. |
Advantage:
1.Can produce two types roofing sheet on one machine(Note:Two layers cannot produce the same time)
2.Suit for customers requirement of produce different sheets(The profile drawing of roofing sheet customized)
3.Our machine material with good treatment for long time using.Good quality machine.
4.Save space and cost.
5.Full automatic with easy operation.
These are advantages of Full automatic double layer metal roofing sheet roll forming machine.
To save space and save money, some customer like to choose double layer roll forming machine, double layer roll forming machine popular sell in many countries, 2 shapes make in one machine, common it include:
1. Trapezoidal sheet and trapezoidal sheet double layer machine
2. Trapezoidal sheet and corrugated sheet double layer machine
3. Corrugated sheet and corrugated sheet double layer machine
4. Trapezoidal sheet and glazed tile sheet double layer machine
5. Corrugated sheet and glazed tile sheet double layer machine
Please noted that double layer machine only can work one layer one time, can not 2 layer work at same time, it also meet problem: bottom layer broken somewhere, need take up layer out to repair bottom layer. So consider well choose one set double layer machine or 2 single layer machine. Any confuse, talk me no heistate.
Installation and Training:
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
