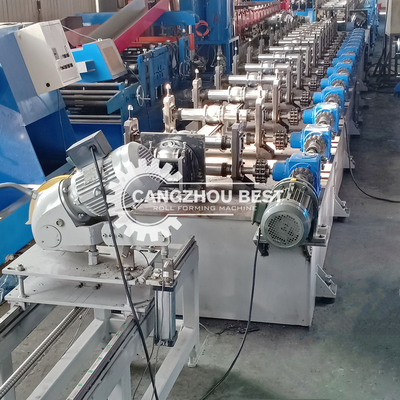

Speed 10-15m/Min Shutter Door Roll Forming Machine Hydraulic Cutting Type

Product Description:

The Shutter Door Roll Forming Machine is an ideal choice for garage door manufacturing, with a roller diameter of 70mm, width of 100-400mm, 50mm roller shaft, 7.5Kw power and 3.5T weight. It is reliable and efficient for use in the production of garage door,roller shutter door, and other related door machine manufacturing. With its robust construction, it ensures superior performance and maximum production output. It is also low maintenance and requires minimal operator training. This Shutter Door Roll Forming Machine is a must-have for any garage door or roller shutter door manufacturer looking for a reliable and cost-effective solution.

Features:

• Product Name: Shutter Door Roll Forming Machine
• Cutting Type: Hydraulic
• Length: Customized
• Control System: PLC
• Speed: 10-15m/min
• Uses: Door Machine, Garage Door Machine, Roller Shutter Door Machine



Technical Parameters:

Parameter	Value
Product Name	Shutter Door Roll Forming Machine
Width	100-400mm
Roller Diameter	70mm
Cutting Type	Hydraulic
Control System	PLC
Material	Steel
Roller	14-20
Power	7.5Kw
Length	Customized
Weight	3.5T



Applications:

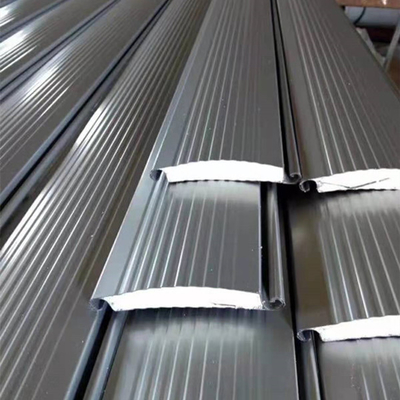

China Cangzhou BEST Shutter Door Roll Forming Machine is used for producing garage doors, shed doors, and other kinds of shutter doors. It is equipped with 45# steel rollers, hydraulic cutting type, and can produce shutter doors with thickness ranging from 0.3mm to 1.2mm, and width from 100mm to 400mm. The machine has a speed of 10-15m/min, and it is a high-efficiency and reliable machine for producing shutter doors.

Customization:

• Brand Name: China Cangzhou BEST
• Model Number: 1
• Place of Origin: China
• Control System: PLC
• Thickness: 0.3-1.2mm
• Name: Shutter Door Roll Forming Machine
• Width: 100-400mm
• Voltage: 380V/50Hz/3Phase

China Cangzhou BEST provides customized services for Shutter Door Roll Forming Machines. Our machines are specially designed for making roller shutter doors, garage doors, and other doors. With PLC control system, the machine can accurately control thickness within 0.3-1.2mm and width within 100-400mm. The voltage is 380V/50Hz/3Phase, which ensures a stable performance.

Support and Services:

We provide technical support and service to ensure that our customers can get the most out of their Shutter Door Roll Forming Machine. Our team is available on-site or remotely, 24/7, to provide assistance with:

• Maintenance and Troubleshooting
• Software Upgrades and Installation
• Technical Consulting
• Spare Parts and Accessory Replacement
• Repairs and Adjustments

We are committed to providing the highest level of customer service and satisfaction. If you have any questions or concerns, please don't hesitate to contact us.

Packing and Shipping:

For Shutter Door Roll Forming Machine, the package includes:

• Main body
• Control Box
• PLC Control System
• Tools and accessories

The machine will be shipped in three parts:

• Main body: Put in a wooden case
• Control box: Put in a carton box
• PLC Control System: Put in a carton box
